Instruments and controls
Controls 55
VOE 2134355130

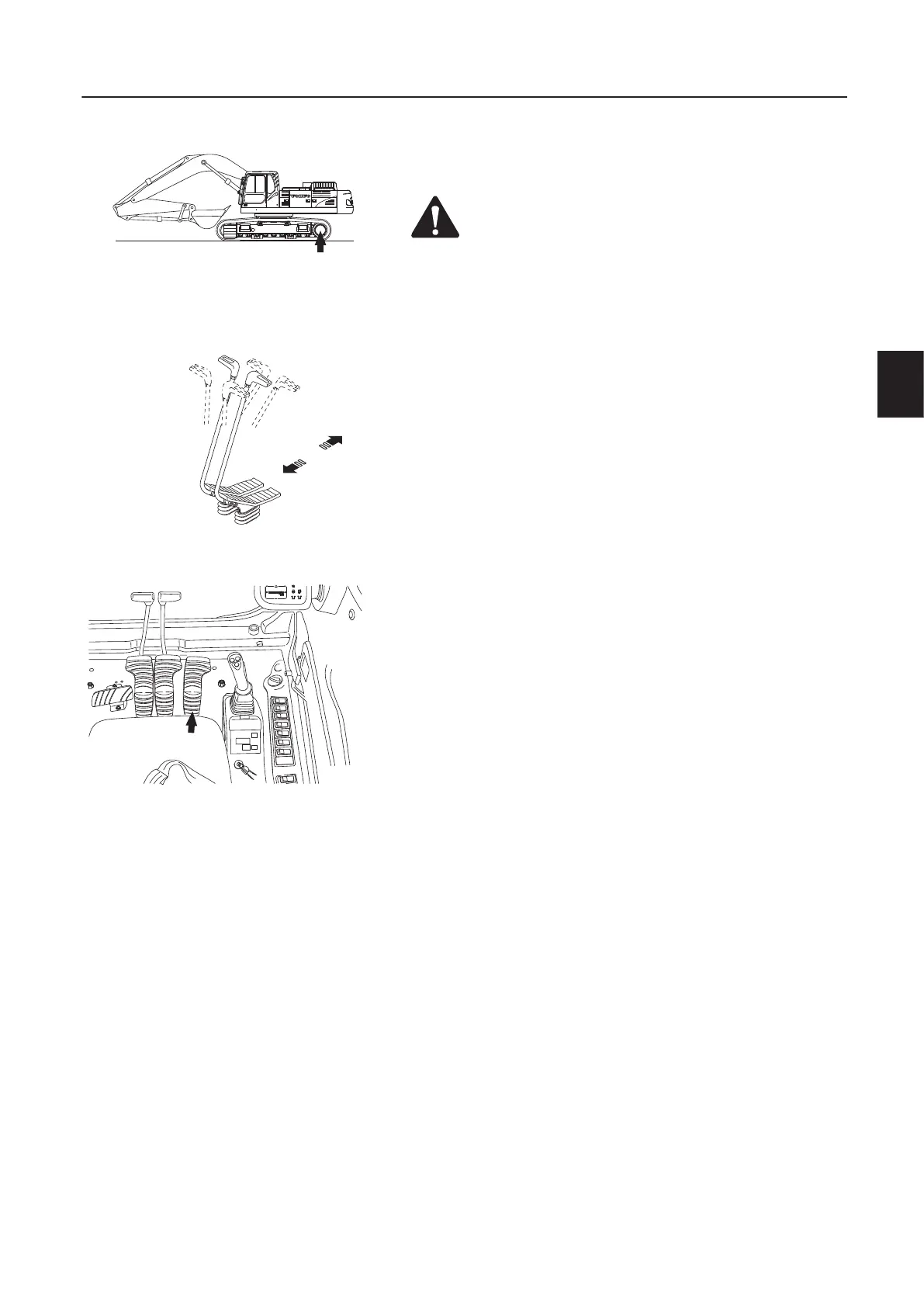

3, 4 Travel levers and pedals
This is used to move and stop the machine.
5 Optional pedal
Detailed contents: See Selecting valves for optional parts on
page 56.
WARNING!
Keep your feet clear of the travel pedals when working.
Know the track directi on before operating travel pedals
(levers).
Travel operation will be reversed, when the sprocket is at
the front.
N Neutral (machine stops.)
1 Forward (push the lever forward or press down on the pedal forward
to advance the machine)
2 Reverse (pull the lever backward or press down on the pedal back-
ward to reverse the machine)
See Travel direction control on page 99.
S82044
S80138
1
N
2
S82047
