56 Selecting valves for optional parts
VOE 2134355130

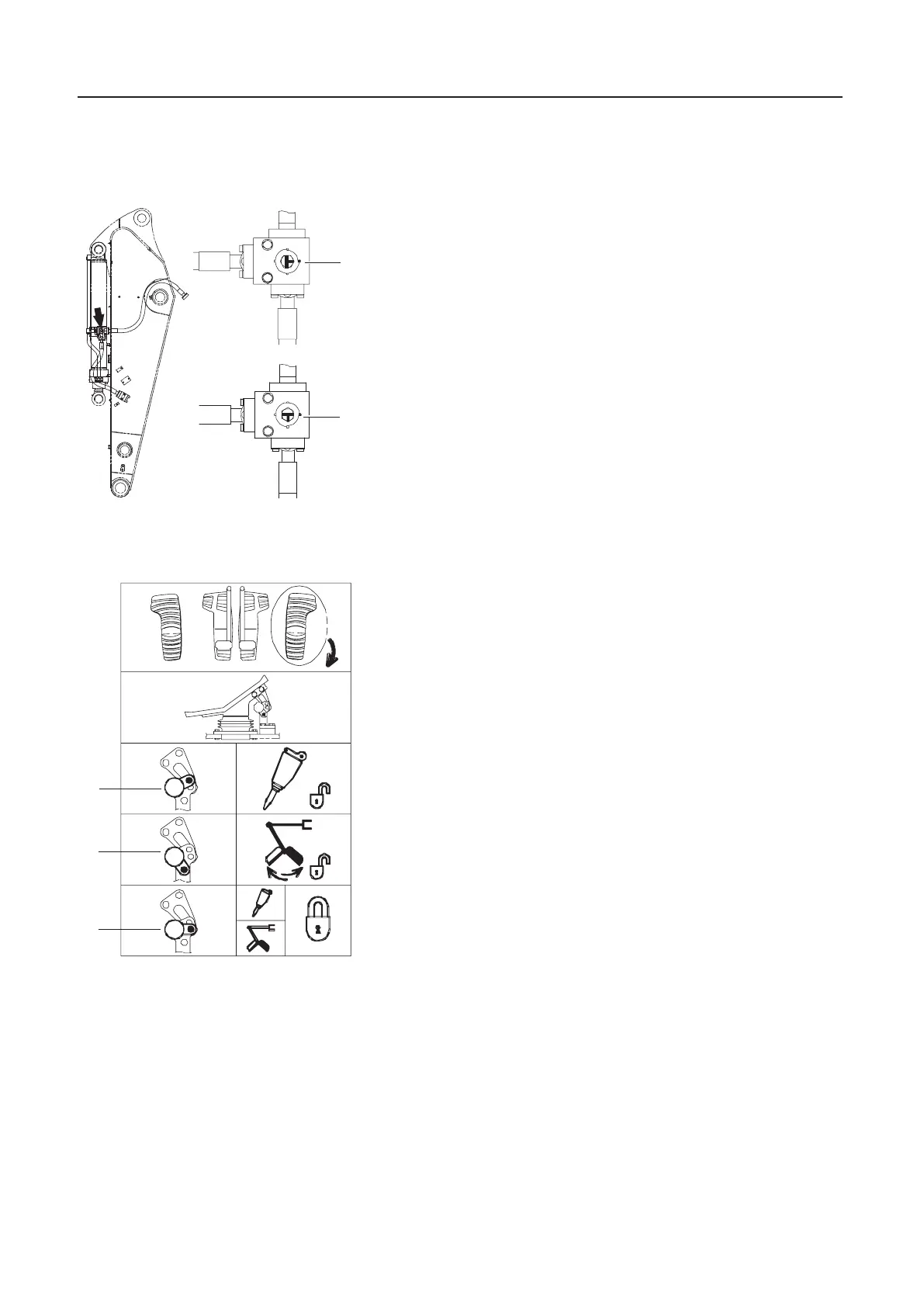

Selecting valves for optional parts
1 Bucket/clamshell valve position
Select the correct position by turning the nut with a wrench.
2 Optional pedal position
Position 1 Operating hammer (if equipped)
Position 2 Operating Shear or Crusher (if equipped)
Position 3 Operating lock (if equipped)
A Bucket position
B Clamshell position
S82170
B
A
1
2
S82300
3
