Wacker Neuson 803 - Control Lever Overview; Left-Hand Control Lever; Right-Hand Control Lever

3-52 OM 803 us – Edition 3.7 * * 803b340.fm
Operation

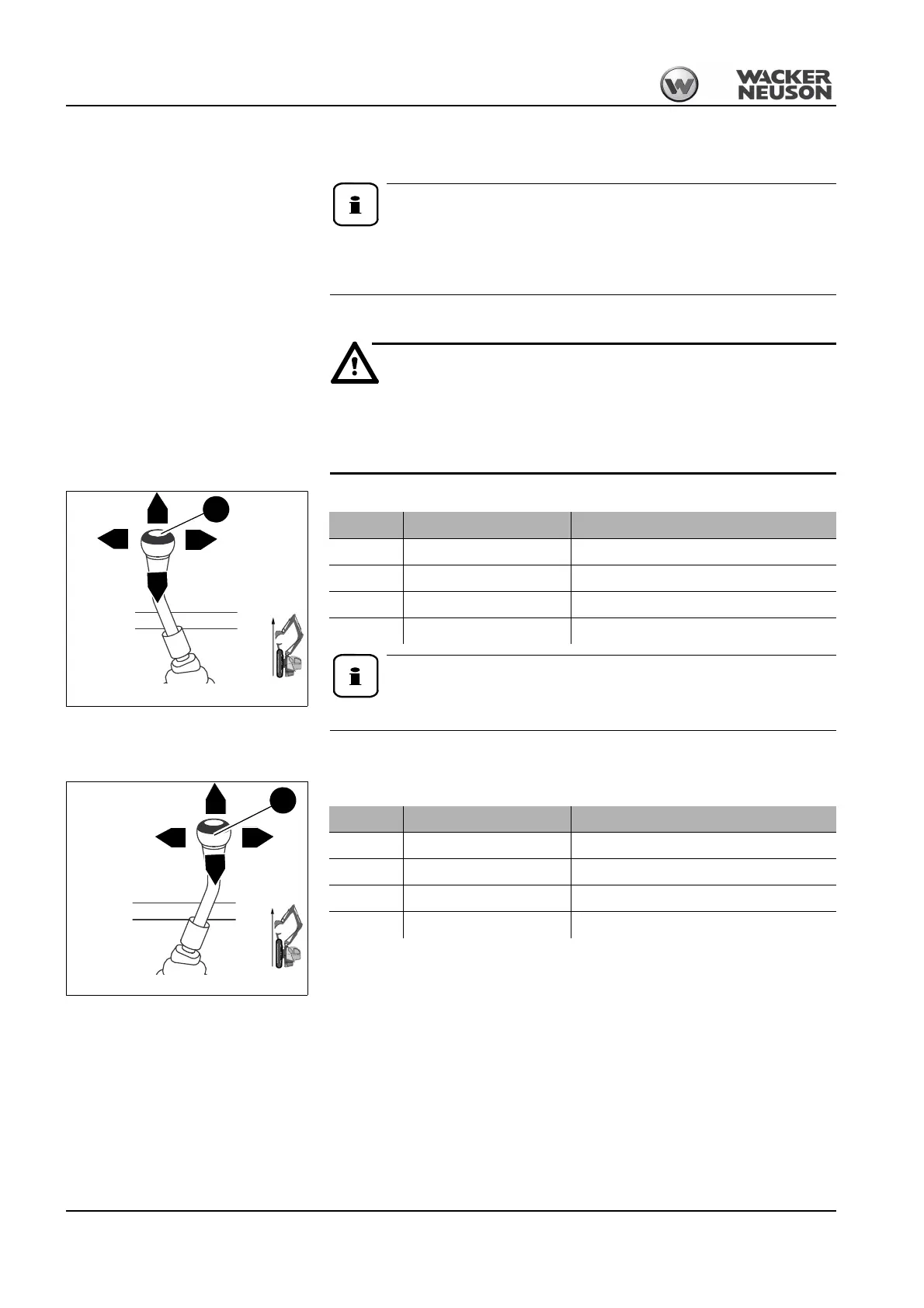

3.14 Control lever overview
Information!
Moving a control lever quickly causes the corresponding function to be per-
formed quickly. Moving a control lever slowly causes the corresponding func-
tion to be performed slowly.
Left-hand control lever
Warning!
WARNING
Accident hazard due to boom operation!
Can cause serious injury or death.
• Raise the lock lever.
Information!
Always perform smooth control movements.
Right-hand control lever
Fig. 110: Left-hand control lever
D
C
A
B
14
Position Lever Function
A
☞Forward
➥Extends the stick
B
☞To the right
➥Rotates the upper carriage to the right
C
☞Backward
➥Retracts the stick
D
☞To the left
➥Rotates the upper carriage to the left
Fig. 111: Right-hand control lever
H
G
E
F
17
Position Lever Function
E
☞Forward
➥Lowers the boom
F
☞To the right
➥Tilts out the bucket
G
☞Backward
➥Raises the boom
H
☞To the left
➥Tilts in the bucket
