3.17 Lock lever
Warning!
WARNING
Crushing hazard due to unexpected movements of the
machine or attachments!
Can cause serious injury or death.
• Raise the lock lever before leaving the machine.
• Locking the lock lever makes it impossible to perform any functions with the
control and travel levers.
• The boom can still be swiveled if the lock lever is raised.
• The auxiliary hydraulics can still be operated if the lock lever is raised.
Lock lever (up to serial no. AI00814)
Locking the lock lever
☞Set lever 12 to position A.
➥The control levers are locked.
Unlocking the lock lever
☞Set lever 12 to position B.
➥The control levers are unlocked.
Lock lever (from serial no. AI00815)
Locking the lock lever
☞Set lever 12 to position A.
➥The control levers are locked.
Unlocking the lock lever
☞Set lever 12 to position B.
➥The control levers are unlocked.

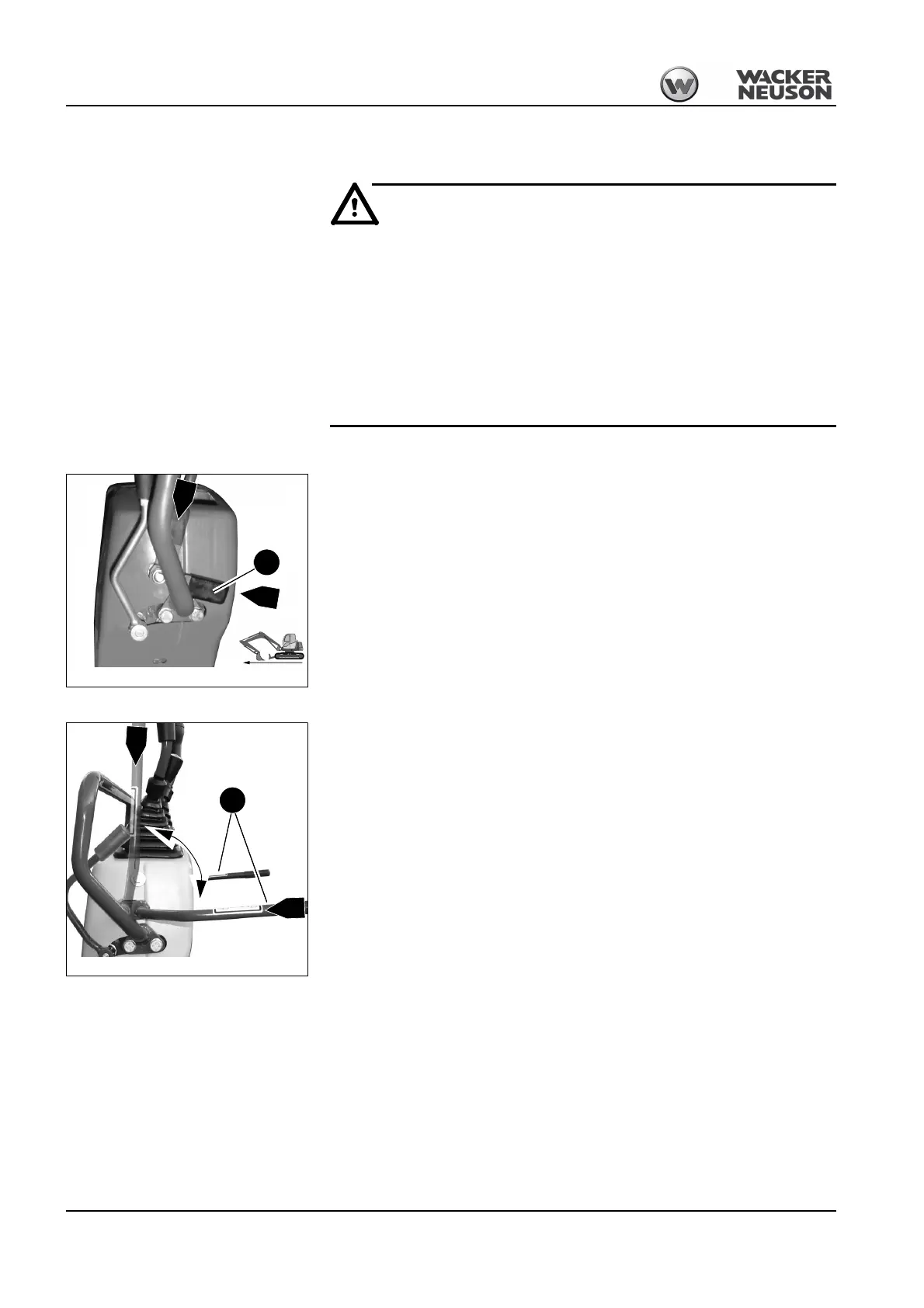

Fig. 136: Lock lever
A
12
B
Fig. 137: Lock lever
A
12
B
