5-22 OM 803 us – Edition 3.7 * * 803b520.fm
Maintenance
☞A further lubrication point is located on the right on the swiveling console.
☞Apply grease to lubrication point 10 with a grease gun.
☞Remove ejected grease.
Lubricating the live ring (ball bearing)
Crushing hazard! Do not rotate the upper carriage during
lubrication.
Serious crushing hazard causing death or serious injury.
• Stop and park the machine – see chapter Parking the machine on
page 5-21.
• Do not rotate the upper carriage.
1 Park the machine on firm, level and horizontal ground.
2 Lower the boom and the stabilizer blade to the ground.
3 Stop the engine, remove the starting key and carry it with you.
4 Raise the lock lever.
5 Apply grease to lubrication point 11 with one stroke of the grease gun.
6 Start the engine, raise the boom and the stabilizer blade.
7 Rotate the upper carriage by 90°.
8 Repeat steps 2 – 7 three times until the upper carriage is back in its initial position.
9 Rotate the upper carriage several times by 360°.
10

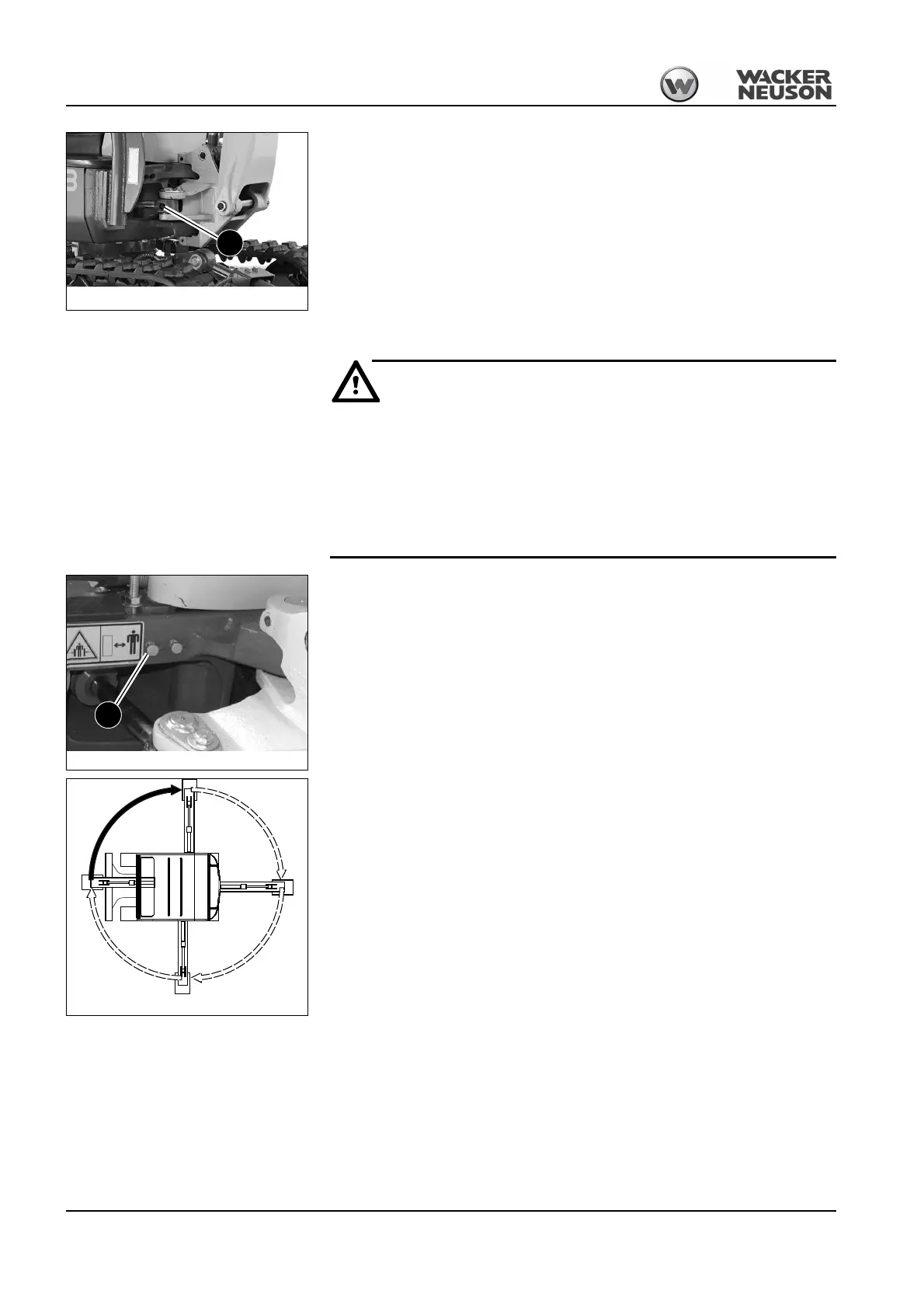

Fig. 209: Swiveling console lubrication point
Fig. 210: Lubrication points of live ring (ball bearing)
11
Fig. 211: Rotate the upper carriage by 90° at a time
