Wacker Neuson 803 - Boom Swivel Controls (from Serial No. AI00976)

3-54 OM 803 us – Edition 3.7 * * 803b340.fm
Operation
Swiveling the boom to the right:
☞Press the rear half of the right-hand pedal
➥Boom swivels to the right
Boom swivel controls (from serial no. AI00976)
Warning!
WARNING
Injury hazard when operating the boom swivel mechanism!
Can cause serious injury or death.
• The pedal is secured with a torsion spring. The pedal flips forward when it is
released, but is not locked.
☞Unfold the right-hand pedal 7
☞Keep the right-hand pedal in position but do not press it
Swiveling the boom to the left:
☞Press the front half of the right-hand pedal
➥Boom swivels to the left

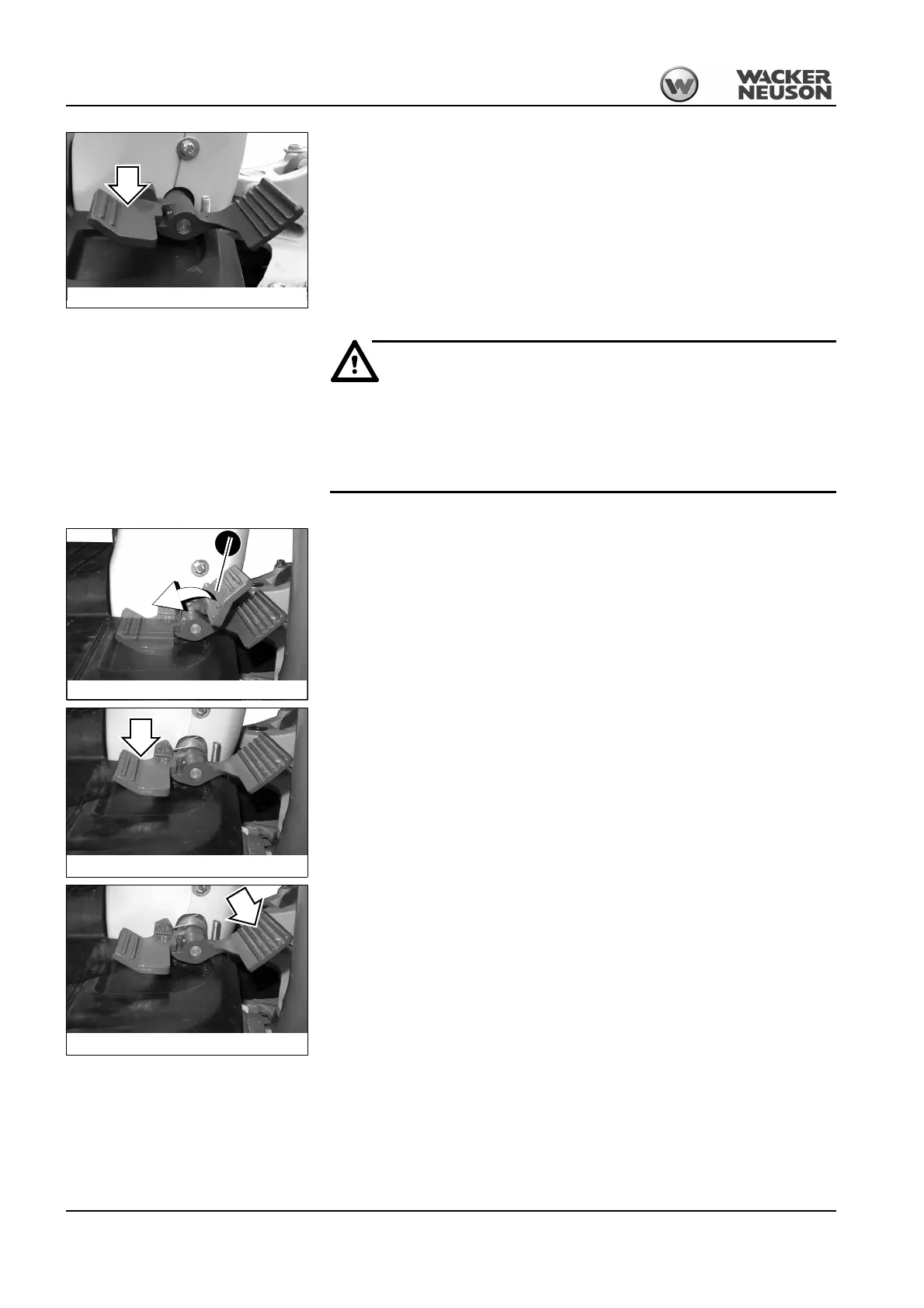

Fig. 115: Actuating the swiveling mechanism
Fig. 116: Swivel controls
7
Fig. 117: Keeping the swiveling mechanism in position
Fig. 118: Actuating the swiveling mechanism
