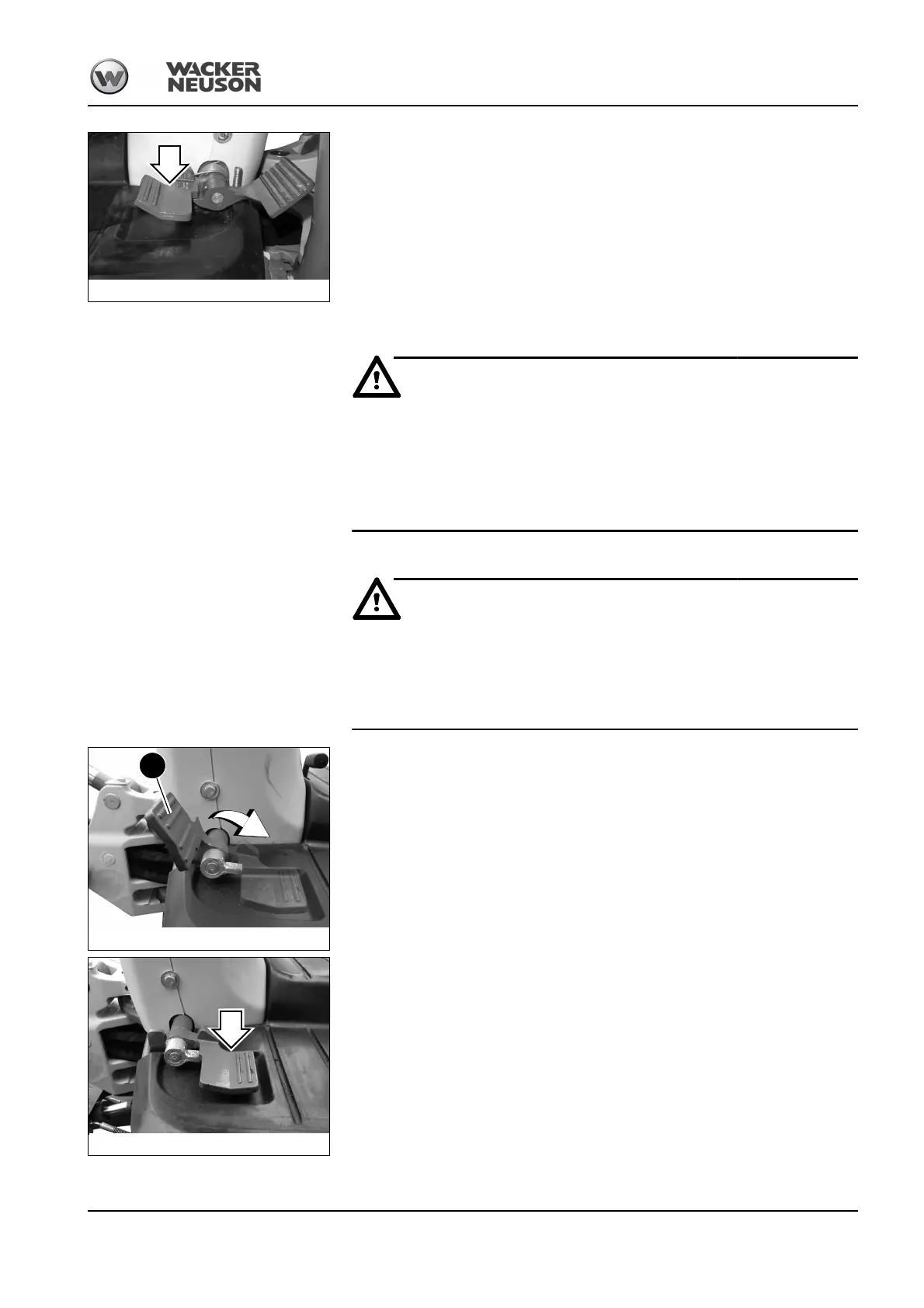

OM 803 us – Edition 3.7 * 803b340.fm 3-55
Operation
Swiveling the boom to the right:
☞Press the rear half of the right-hand pedal
➥Boom swivels to the right
3.16 Auxiliary hydraulics
Injury hazard due to auxiliary hydraulics operation!
Can cause serious injury or death.
• The auxiliary hydraulics function cannot be locked.
• Press the pedal carefully, otherwise the auxiliary hydraulics is actuated ear-
lier than required.
Auxiliary hydraulics (up to serial no. AI00975)
Injury hazard due to auxiliary hydraulics operation!
Can cause serious injury or death.
• In order to minimize the risk of unintentional operation, flip the pedal for-
ward after actuating the auxiliary hydraulics.
☞Unfold the left-hand pedal 10
➥Auxiliary hydraulics can be actuated
Actuating the auxiliary hydraulics:
☞Press the left-hand pedal
➥Oil flows through the auxiliary hydraulics line
Fig. 119: Actuating the swiveling mechanism
Fig. 120: Auxiliary hydraulics
10
Fig. 121: Actuating the auxiliary hydraulics
