Wacker Neuson 803 - Fuses and Relays with Dual Power Option

OM 803 us – Edition 3.7 * 803b610.fm 6-5
Technical data
Fuses and relays with Dual Power option
If the machine is equipped with the Dual Power option, the fuses and relays are located
under the base plate.

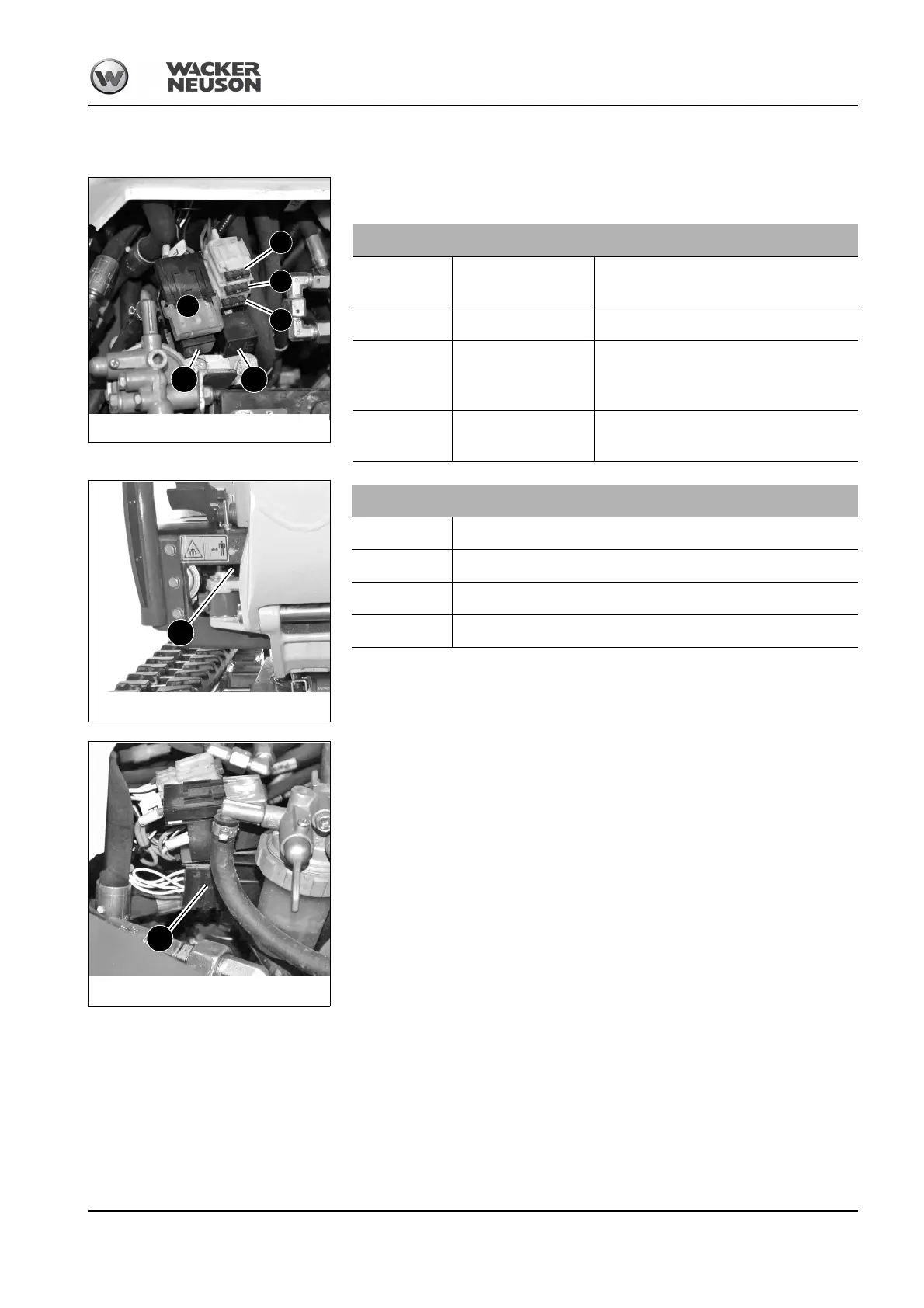

Fig. 225: Fuses and relays with Dual Power option
F1
F2
F3
F4
K9 K7
Fuse no. Rated current (A) Protected circuit
F1 40 A
Main fuse: air-pressure sensor/output adap-
tation (Yanmar 3TNV74F-SNNS)
F2 10 A Fuse: relay, indicator, cutoff solenoid
F3 10 A
Fuse: horn, working light 12 V power outlet
(up to serial number WNCE0801CPAL0050),
travel signal (option)
F4 10 A
12 V power outlet (from serial number
WNCE0801TPAL0051)
Fig. 226: Relay K8
K7
Relay no. Protected circuit
K7 Starting relay
K 8 Cutoff solenoid time lag relay 1s
K9 Cutoff solenoid switching relay
K116 (A) Battery control
Fig. 227: Relay K116 (side view)
A
