Operation
Information!
Only operate battery chargers with the same specifications as the one sup-
plied with the power unit. Observe the Operator’s Manual of the battery
charger. Contact a Wacker Neuson service center in case of doubt.

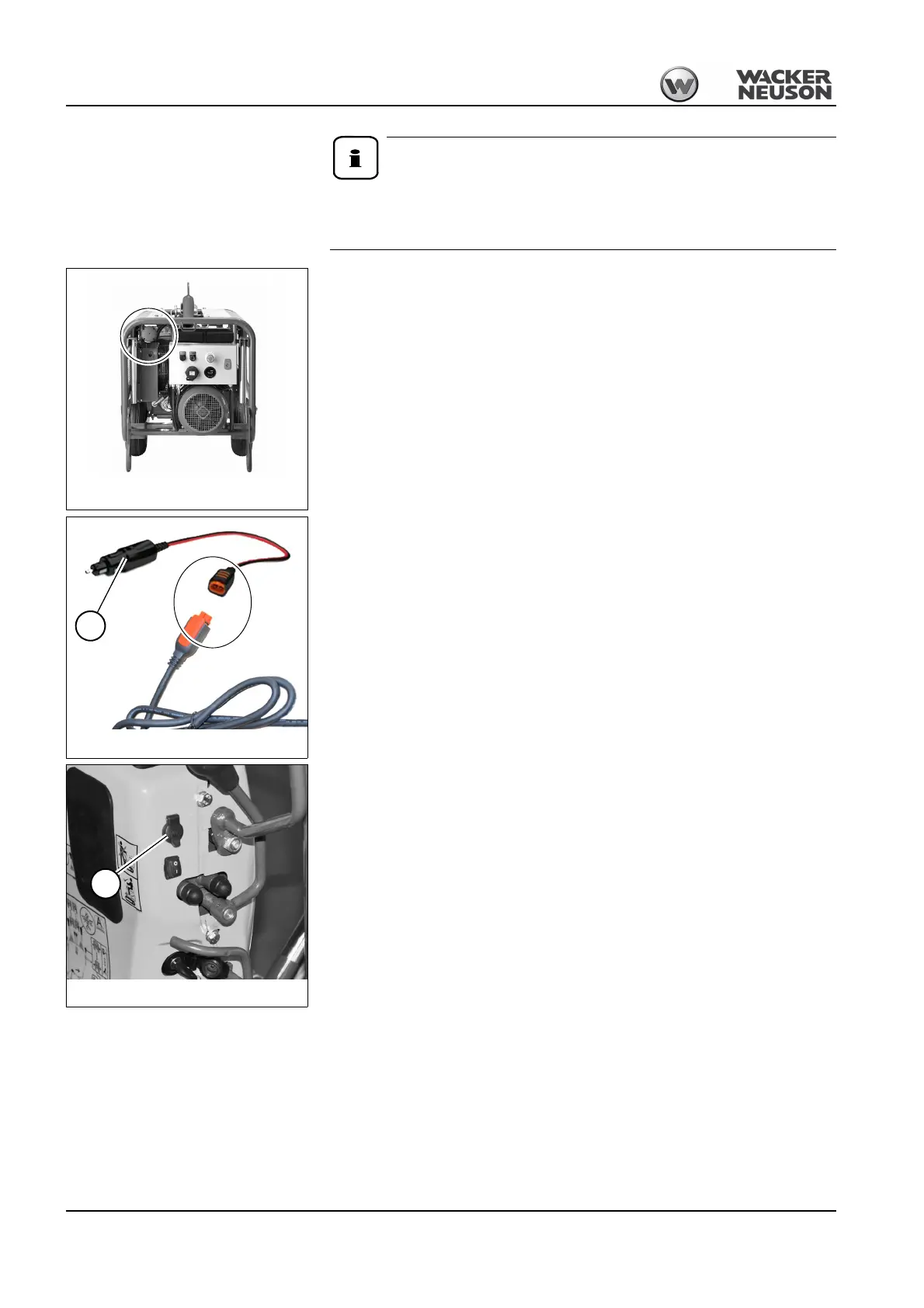

The battery charger is located in the storage compartment above the hydraulic-oil radiator
of the power unit.
For more information, refer to the Operator’s Manual of the battery charger. The Opera-
tor’s Manual is located in the document box of the power unit.
The excavator battery can be charged in two different ways.
• With the power unit
• Directly with the 230 V mains
Connect the adapter connector and bushing of the battery charger.
Connect the 12 V connector A to the 12 V outlet B.
Fig. 160:
Fig. 161:
A
Fig. 162:
B
