Introduction
Meaning (up to serial no. AI00814)
This label describes the pedal and control lever functions.
– see chapter 3.14 Control lever overview on page 3-52
Position
On the control stand
Meaning (from serial no. AI00815)
This label describes the pedal and control lever functions.
– see chapter 3.14 Control lever overview on page 3-52
Position
On the control stand
Meaning
Indicates the control operations that do not comply with the ISO standard if the SAE con-
trols are selected.
Position
On the control stand
Meaning
Check before starting the machine the operating pattern that has been chosen.
Position
On the control stand

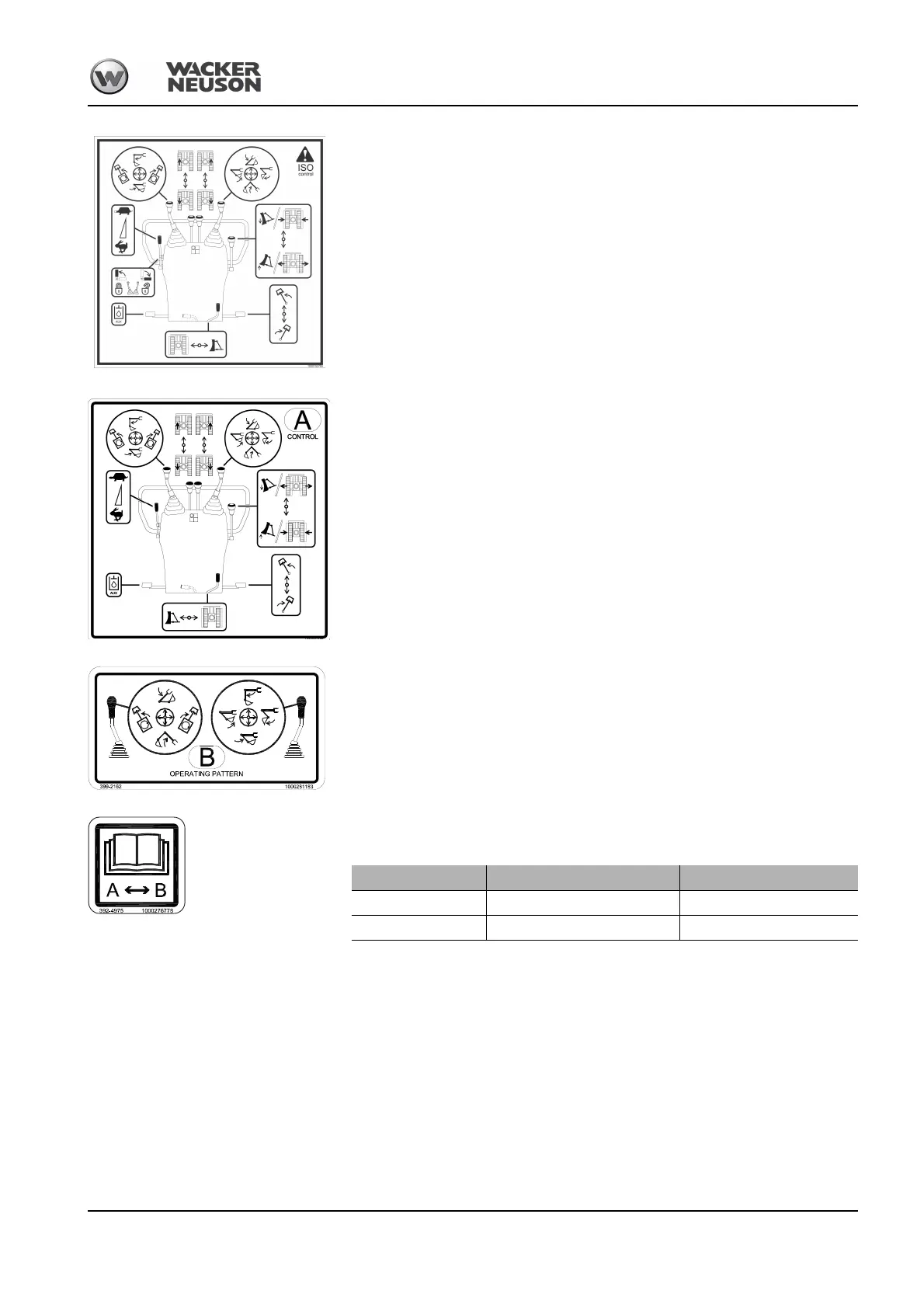

Fig. 16: Controls
Fig. 17: Controls
Fig. 18: SAE controls
Fig. 19: ISO/SAE changeover
Wiring diagram Controls
A ISO controls (Europe) Operating Pattern A
B SAE controls (US) Operating Pattern B
