OM 803 us – Edition 3.7 * 803b330.fm 3-23
Operation
Reducing the width of the stabilizer blade
☞Raise the stabilizer blade to about 1 – 2 cm (about 0.4 – 0.8 in).
☞Pull out pins A on either side.
☞Turn in the stabilizer blade extensions B on either side.
☞Insert pins A on either side.
Increasing the width of the stabilizer blade
☞Raise the stabilizer blade to about 1 – 2 cm (about 0.4 – 0.8 in).
☞Pull out pins A on either side.
☞Turn out the stabilizer blade extensions B on either side.
Insert pins A on either side.

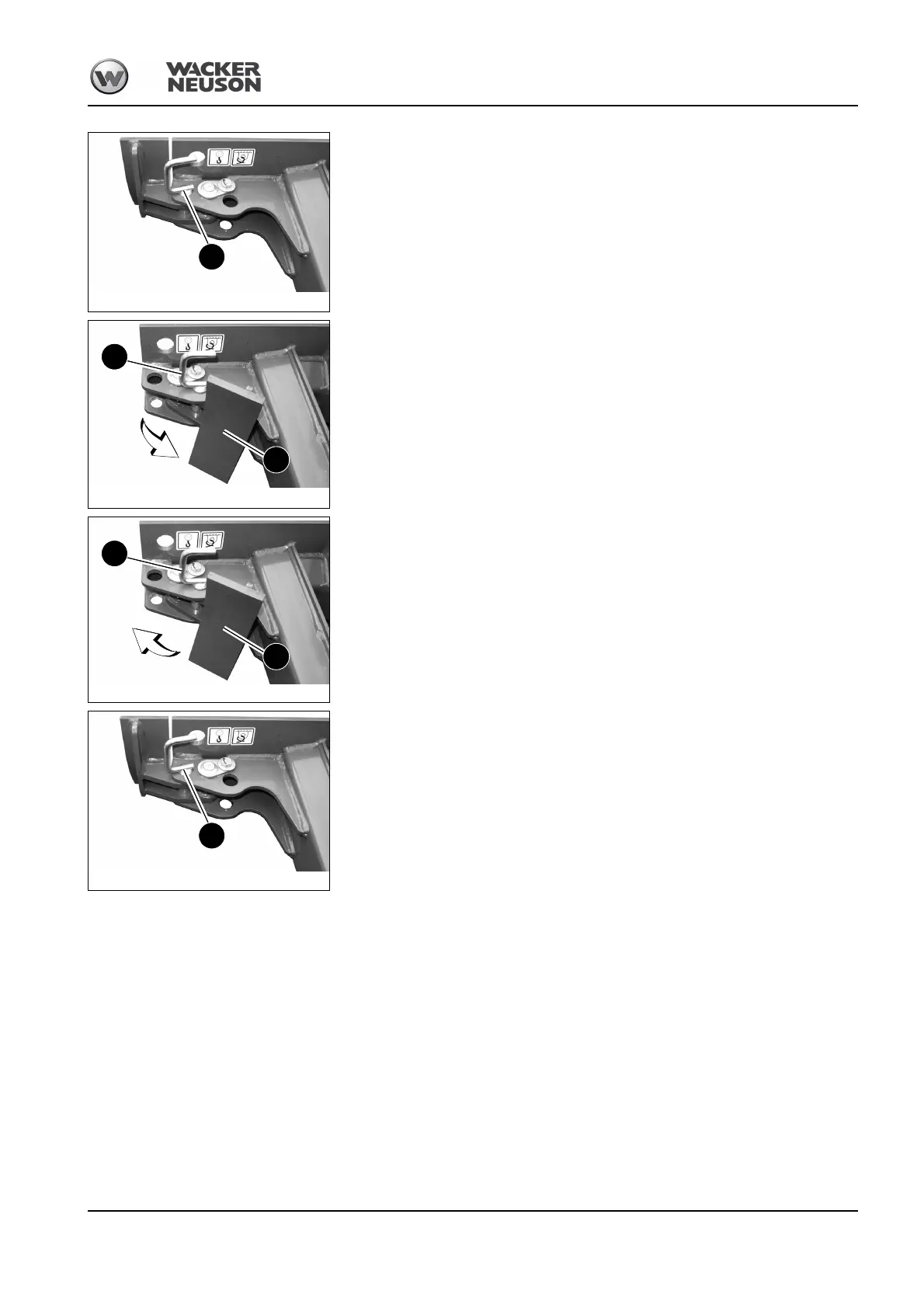

Fig. 67: Changing the width of the stabilizer blade
A
Fig. 68: Changing the width of the stabilizer blade
B
A
Fig. 69: Changing the width of the stabilizer blade
B
A
Fig. 70: Changing the width of the stabilizer blade
A
