Operation
1 Fit an empty standard bucket and lock it safely.
2 Empty the standard bucket or remove the attachment.
3 Remove all dirt from the machine.
4 Park the machine on firm, level and horizontal ground.
5 Curl the standard bucket and lower it to transport position.
6 Fully raise the boom.
7 Pull the stick toward the machine.
8 Raise the stabilizer blade (it must be at the rear).
9 Position the boom straight ahead at the center of the machine.
10 Stop the engine.
11 Operate the control lever repeatedly to release the pressure in the hydraulic system.
12 Raise the lock lever.
13 Remove the starting key and carry it with you.
14 Remove all loose objects from the machine.
15 Get off the machine, close and lock all covers.
16 Remove the window if the machine is equipped with the shatter protection option.
Lower the rollbar if the machine is equipped with this option.
17 Install suitable slings at the points provided for lifting the machine.
18 Install the lifting gear at the point on the boom provided for lifting the machine.
19 Install the lifting gear at the points on the stabilizer blade provided for lifting the
machine.
☞Ensure that the lifting gear has the required lengths L1 and L2.
20 Slowly raise the machine until there is no more contact with the ground.
21 Wait until the machine does not swing any more and is completely steady.
22 If the balance, and the condition and position of the slings is correct, slowly raise
the machine to the required height and load it.
23 Raise the rollbar after loading the machine.

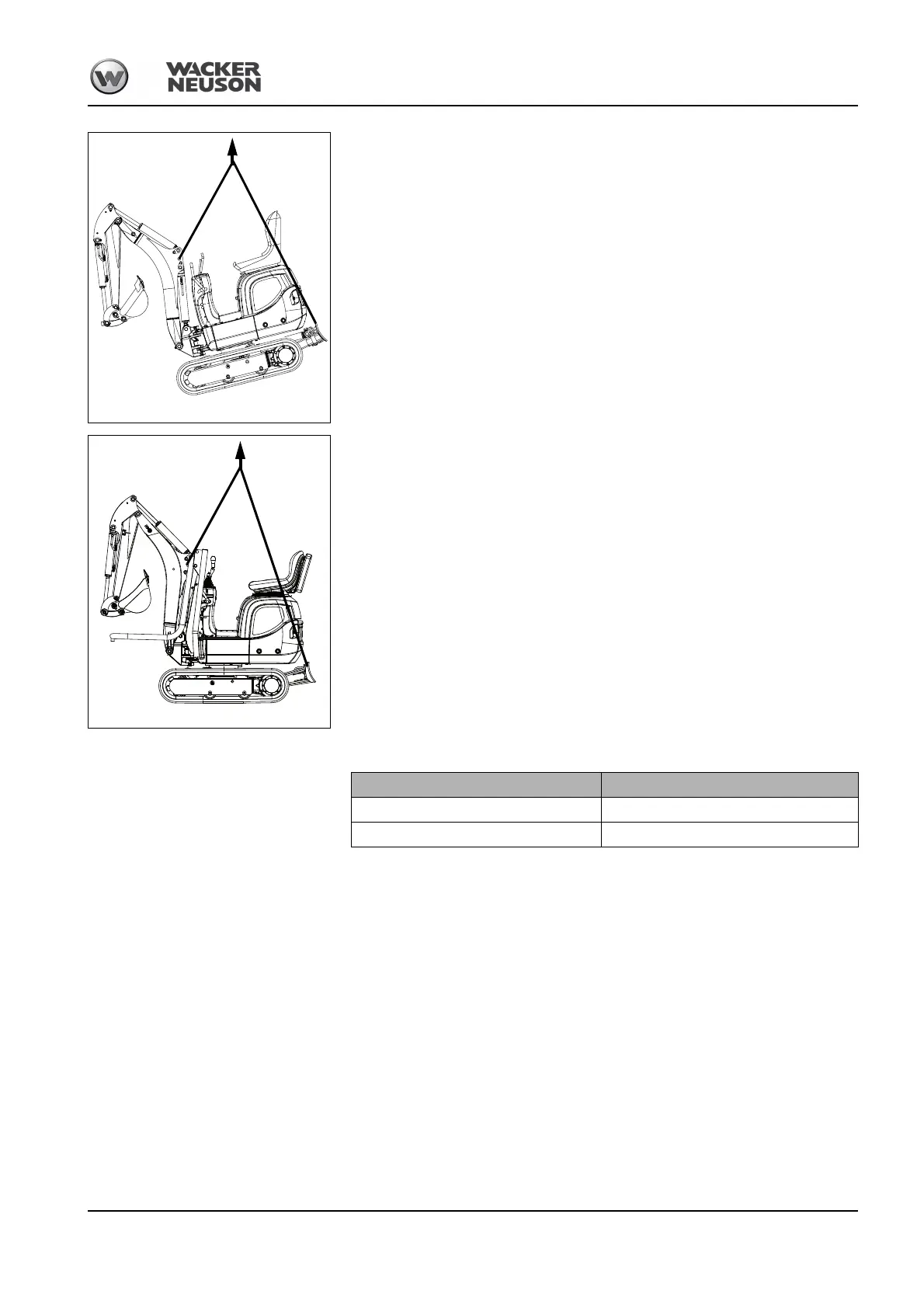

Required lengths L1 and L2 of the lifting gear:
Fig. 102: Crane lifting (without rollbar)
L1
L2
Fig. 103: Crane lifting (with rollbar)
L1
L2
Length Dimension
L1 1054 mm (42 in)
L2 1718 mm (68 in)
