18 Device Description WAGO-I/O-SYSTEM 750
750-461 2AI Pt100/RTD
Manual
Version 1.4.1
Pos: 21.11 /Serie 750 (W AGO-I/O-SYSTEM)/Gerätebeschrei bung (alte Struktur) /Anschlüsse/Leis tungskontakte/Fel dversorgung - Übersc hrift 3 @ 6\mod_125629469286 4_21.docx @ 43664 @ 3 @ 1
3.2.2 Power Jumper Contacts/Field Supply
Pos: 21.12 /Serie 750 (W AGO-I/O-SYSTEM)/Gerätebeschrei bung (alte Struktur) /Anschlüsse/Leis tungskontakte nicht vorhanden @ 8\mod_128107393631 9_21.docx @ 62530 @ @ 1
The I/O module 750-461 has no power jumper contacts.
Pos: 21.13 /Serie 750 (W AGO-I/O-SYSTEM)/Gerätebeschrei bung (alte Struktur) /Anschlüsse/CAGE CLA MP-Anschlüsse - Übersc hrift 3 @ 6\mod_1256296337 770_21.docx @ 43674 @ 3 @ 1
3.2.3 CAGE CLAMP
®
Connectors
Pos: 21.14 /Serie 750 (W AGO-I/O-SYSTEM)/Gerätebeschrei bung (alte Struktur) /Anschlüsse/AI/ Anschlüsse 750-0461 @ 10\mod_1 298879931582_21.doc x @ 70289 @ @ 1

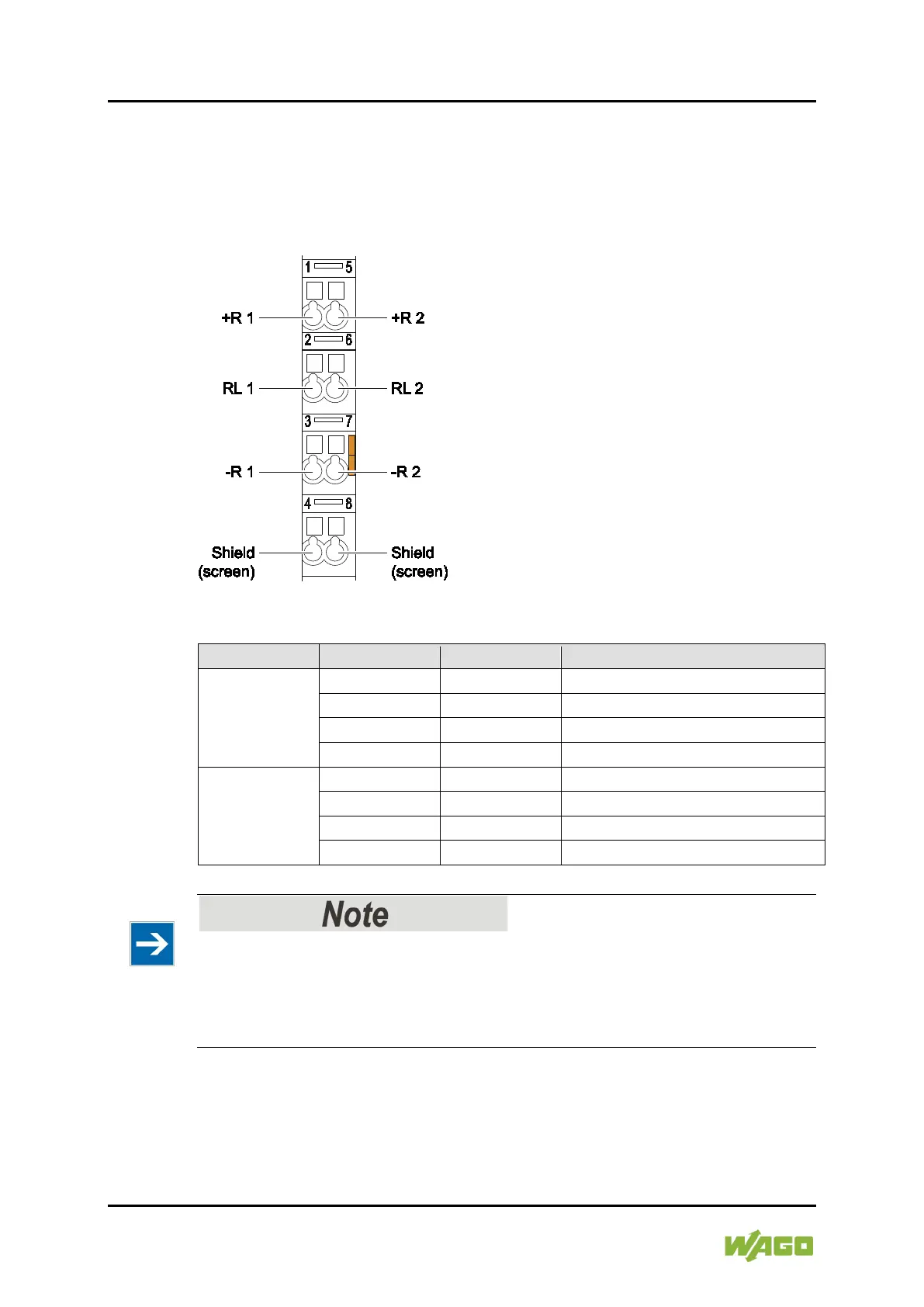

Figure 3: CAGE CLAMP
®
Connectors
Table 5: Legend for Figure „CAGE CLAMP
®
Connectors“
Channel
Designation
Connector
Function
1
+R1
1
Sensor 1: +R
RL1
2
Sensor 1: RL
−R1
3
Sensor 1: −R
Shield
4
Shield (screen)
2
+R2
5
Sensor 2: +R
RL2
6
Sensor 2: RL
−R2
7
Sensor 2: −R
Shield
8
Shield (screen)
Pos: 21.15 /Serie 750 (W AGO-I/O-SYSTEM)/Wichtige Erläuter ungen (alte Struktur )/Sicherheits- und sonstige Hinweise/ Hinweis/Hinweis: Gesc hirmte Signalleitung en verwenden! @ 7\mod_1265 723251019_21.doc x @ 50140 @ @ 1
Use shielded signal lines!
Only use shielded signal lines for analog signals and I/O modules which are
equipped with shield clamps. Only then can you ensure that the accuracy and
interference immunity specified for the respective I/O module can be achieved
even in the presence of interference acting on the signal cable.
