WAGO-I/O-SYSTEM 750 Device Description 19
750-461 2AI Pt100/RTD
Manual
Version 1.4.1
Pos: 21.17 /Alle Seri en (Allgemeine Module)/ Überschriften/Eben e 2/Anzeigeelemen te - Überschrift 2 @ 4\mod_12409 84390875_21.doc x @ 31964 @ 2 @ 1
3.3 Display Elements
Pos: 21.18 /Serie 750 (W AGO-I/O-SYSTEM)/Gerätebeschrei bung (alte Struktur) /Anzeigeelemente/AI /Anzeigeelemente 75 0-0461 @ 10\mod_1298880115533 _21.docx @ 70297 @ @ 1

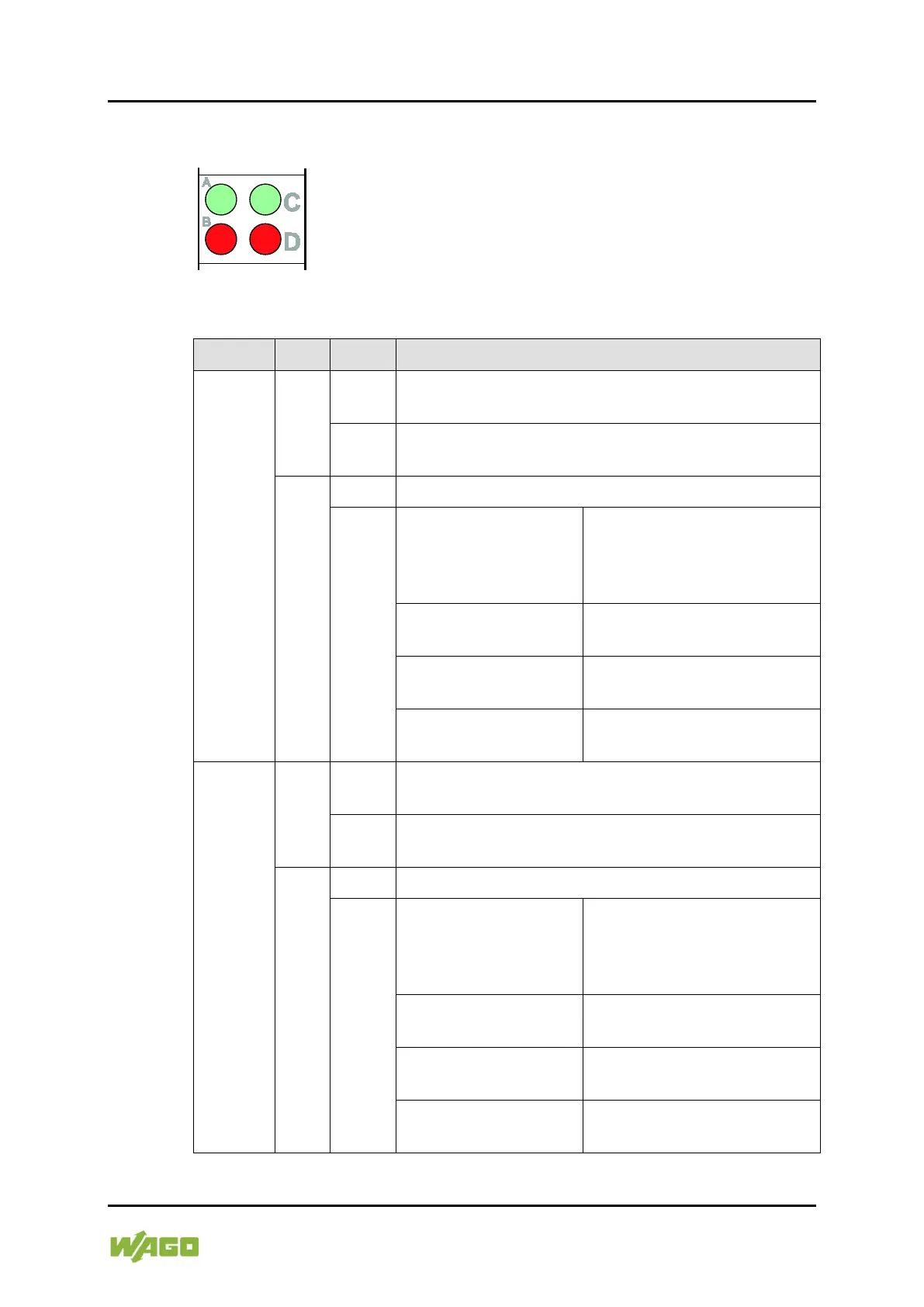

Figure 4: Display Elements
Table 6: Legend for Figure “Display Elements
Channel
LED
State
Function
1
A
Off
No operational readiness or the local bus
communication is interrupted
Green
Operational readiness and trouble-free local bus
communication
B
Off
Normal operation
Red
750-461,
750-461/000-003,
-004, -005, -006, -009
/020-000, 025-000
Overrange/underflow of the
admissible measuring range,
broken wire
750-461/000-200
Overrange of the admissible
measuring range, broken wire
750-461/000-002
Overrange of the admissible
measuring range
750-461/000-007
Overrange of the admissible
measuring range
2
C
Off
No operational readiness or the local bus
communication is interrupted
Green
Operational readiness and trouble-free local bus
communication
D
Off
Normal operation
Red
750-461,
750-461/000-003,
-004, -005, -006, -009
/020-000, 025-000
Overrange/underflow of the
admissible measuring range,
broken wire
750-461/000-200
Overrange of the admissible
measuring range, broken wire
750-461/000-002
Overrange of the admissible
measuring range
750-461/000-007
Overrange of the admissible
measuring range
