40 Connect Devices WAGO-I/O-SYSTEM 750
750-461 2AI Pt100/RTD
Manual
Version 1.4.1
Pos: 29 /Alle Serien ( Allgemeine Module)/ Überschriften/Ebene 1/ Geräte anschließen - Über schrift 1 @ 3\mod_1234172 889468_21.doc x @ 27460 @ 1 @ 1
6 Connect Devices
Pos: 30 /Serie 750 (W AGO-I/O-SYSTEM)/Anschließen/Leit er an CAGE CLAMP anschließen ( allgemein) - Überschr ift 2 und Text @ 3\mod_122544866017 1_21.docx @ 24928 @ 2 @ 1
6.1 Connecting a Conductor to the CAGE CLAMP
®
The WAGO CAGE CLAMP
®
connection is appropriate for solid, stranded and
finely stranded conductors.
Only connect one conductor to each CAGE CLAMP
®
!
Only one conductor may be connected to each CAGE CLAMP
®
.
Do not connect more than one conductor at one single connection!
If more than one conductor must be routed to one connection, these must be
connected in an up-circuit wiring assembly, for example using WAGO feed-
through terminals.
1. For opening the CAGE CLAMP
®
insert the actuating tool into the opening
above the connection.
2. Insert the conductor into the corresponding connection opening.
3. For closing the CAGE CLAMP
®
simply remove the tool. The conductor is
now clamped firmly in place.

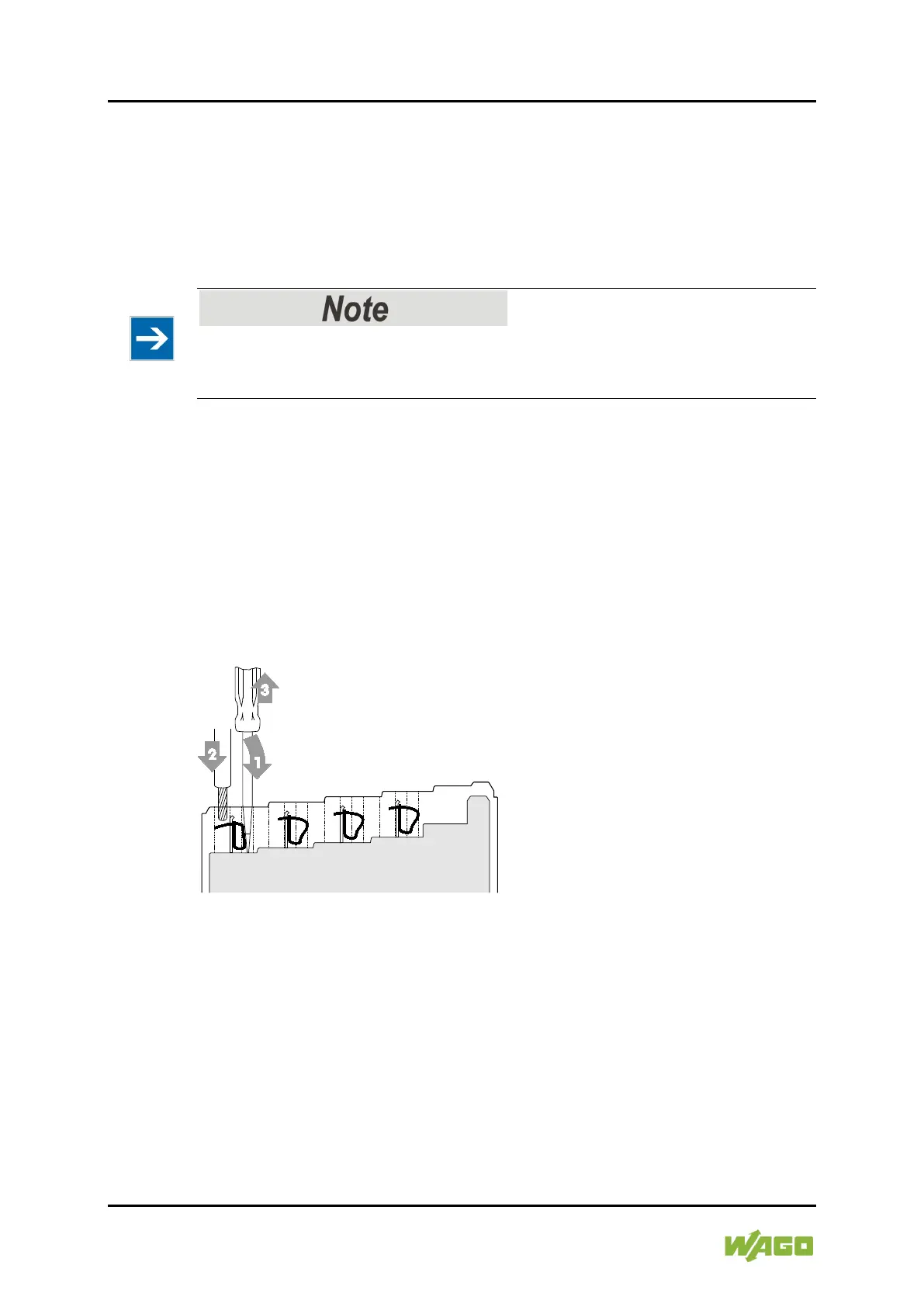

Figure 9: Connecting a Conductor to a CAGE CLAMP
®
