38 Mounting WAGO-I/O-SYSTEM 750
750-461 2AI Pt100/RTD
Manual
Version 1.4.1
Pos: 27.6 /Alle Serien ( Allgemeine Module)/ Überschriften/Ebene 2/ Geräte einfügen und en tfernen - Überschri ft 2 @ 3\mod_1231768483250_21. docx @ 25950 @ 2 @ 1
5.2 Inserting and Removing Devices
Pos: 27.7 /Alle Serien ( Allgemeine Module)/ Sicherheits- und sonsti ge Hinweise/Gefahr /Gefahr: Nicht an Geräten un ter Spannung arbeiten ! @ 6\mod_1256193963573_2 1.docx @ 43426 @ @ 1
Do not work when devices are energized!
High voltage can cause electric shock or burns.
Switch off all power to the device prior to performing any installation, repair or
maintenance work.
Pos: 27.8 /Serie 750 (WAGO-I/O-SYSTEM)/Montieren/De montieren/I/O-Modu l einfügen @ 3\mod_12317697 26703_21.docx @ 25989 @ 3 @ 1

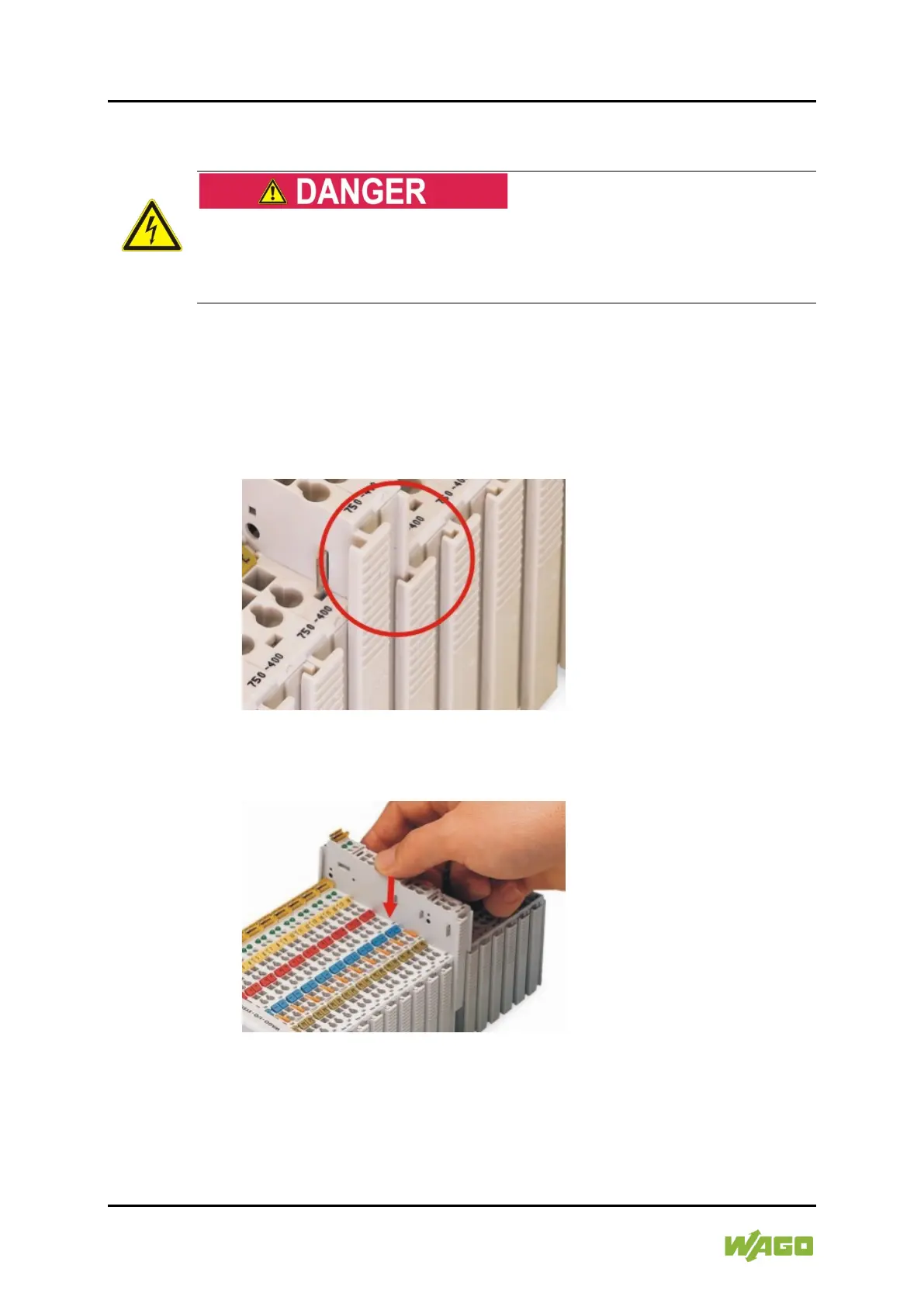

5.2.1 Inserting the I/O Module
1. Position the I/O module so that the tongue and groove joints to the fieldbus
coupler or controller or to the previous or possibly subsequent I/O module
are
engaged.
Figure 6: Insert I/O Module (Example)
2. Press the I/O module into the assembly until the I/O module snaps into the
carrier rail.
Figure 7: Snap the I/O Module into Place (Example)
With the I/O module snapped in place, the electrical connections for the data
contacts and power jumper contacts (if any) to the fieldbus coupler or controller
or to the previous or possibly subsequent I/O module are established.
