56 Appendix WAGO-I/O-SYSTEM 750
750-461 2AI Pt100/RTD
Manual
Version 1.4.1
8.1.2 Configuration of the RS-232/RS-485 Serial Interface
With the exception of the RTS lead and follow-on time and the DMX start channel
number, the GSD file can be used to provide the I/O module on the “PROFIBUS
DP” and “PROFINET IO” fieldbus devices with all operating parameters.

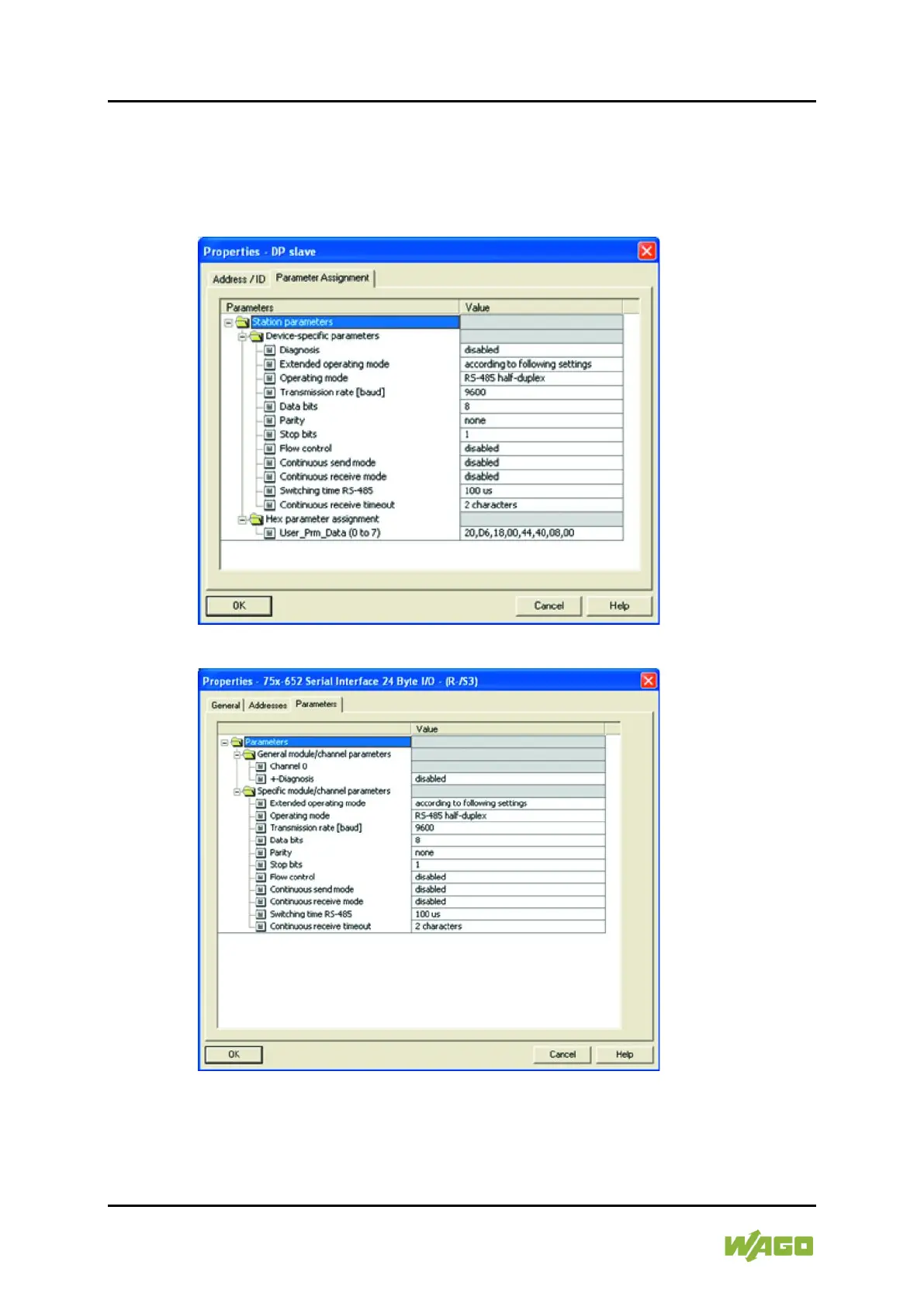

Figure 21: Example of the PROFIBUS DP Fieldbus Coupler/Controller Configuration Dialog
Figure 22: Example of the 750-370 Fieldbus Coupler Configuration Dialog
