Setting Up the 600 as a Gradient Controller 151
Figure 8-2 illustrates the steps involved in using the Pump Configuration screen. Use this
flowchart as a quick reference for setting the parameters on the Pump Configuration
screen.

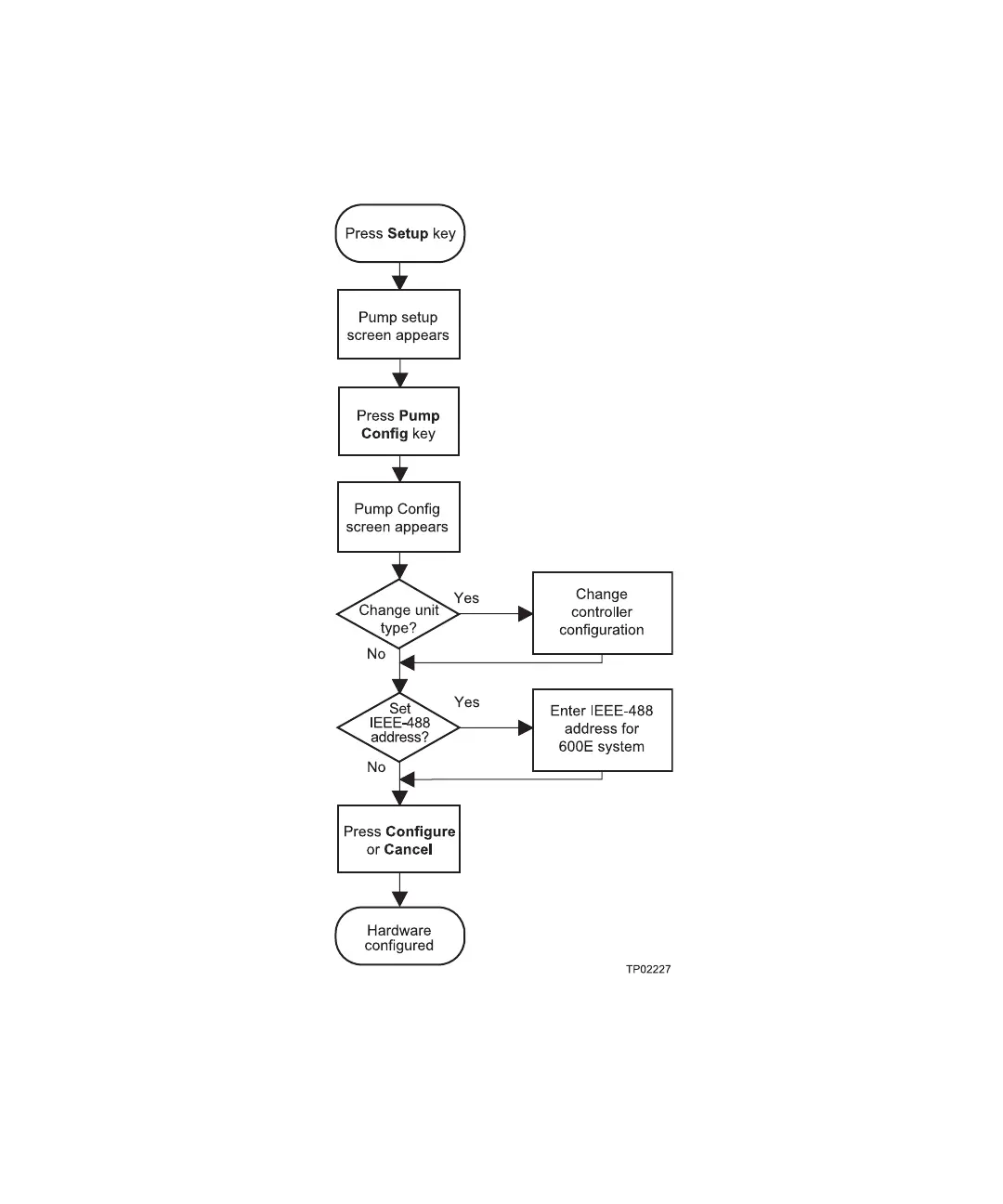

Figure 8-2 Pump Configuration Flowchart
