50 Setting PowerLine Controller Operating Parameters
2. Check the controller Type field. If the Type field contains:
• W600E PowerLine Controller - Skip the rest of this section and proceed to
Section 4.1.2, Selecting an Integrator.
• W600E Gradient Controller - Proceed to step 3.
3. Press the Setup function key to display the Gradient Controller Pump Setup screen
(Figure 4-4).

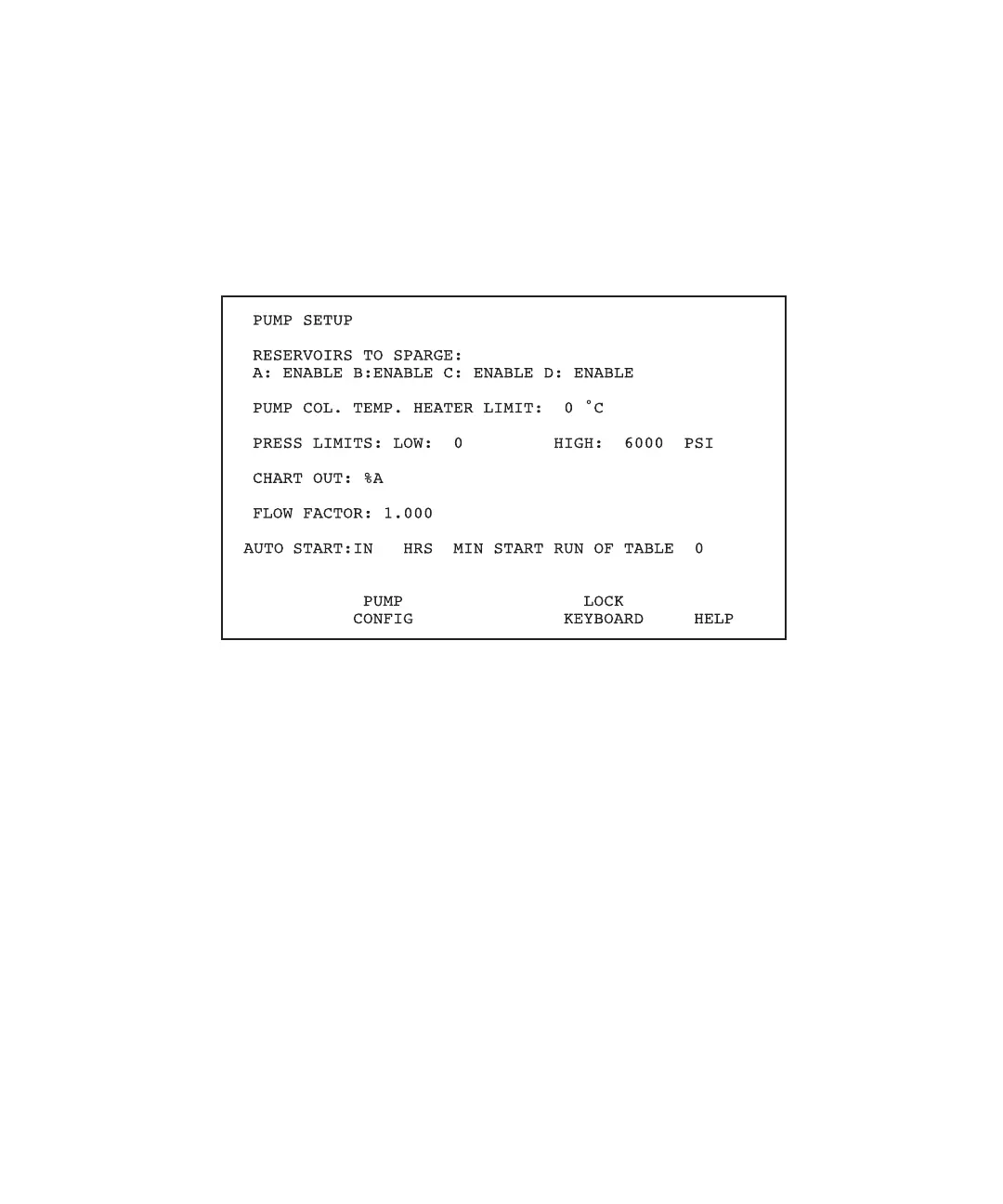

Figure 4-4 Gradient Controller Pump Setup Screen
It is not necessary to set any parameters on this screen right now. A description of
this screen and parameters appears in Section 4.3, Setting Up the 600E Pump.
4. Press the Pump Config screen key to display the Gradient Controller Pump
Configuration screen (Figure 4-5).
