Waters 996 - Power Connections; Waters 996 PDA Detector Dimensions

1
Power Connections 15

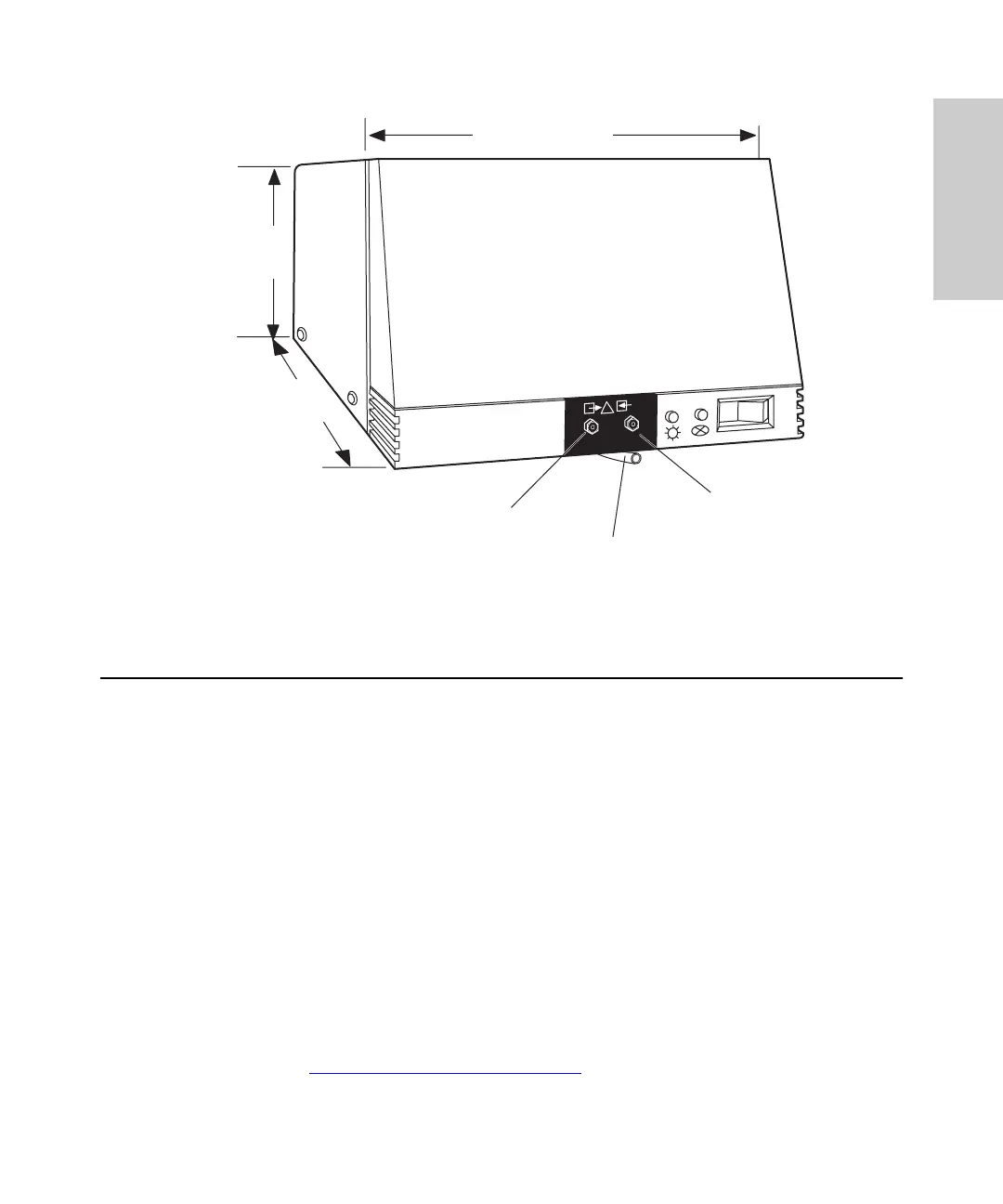

Figure 1-1 Waters 996 PDA Detector Dimensions
1.2 Power Connections
Ensure that power connections for the 996 PDA Detector are made according to the
procedures that follow.
Operating Voltage
The 996 PDA Detector has a universal input power supply that requires no voltage
adjustment. The electrical power requirements for the Waters 996 PDA Detector are:
•
Voltage range:
95 to 240 Vac (±10%)
•
Frequency range:
50 to 60 Hz (±3 Hz)
Fuses
The Waters 996 PDA Detector is shipped with fuses rated for North American operation. If
you operate the Waters 996 PDA Detector in another location, install the IEC-rated fuses
(supplied in the Waters 996 Detector Startup Kit) in the fuse holder in the rear of the
detector (refer to Section 3.3,
Replacing the Fuses).
LAMP
WATERS 996
Photodiode Array
11.5 in. (29 cm)
8.5 in.
(22 cm)
24 in.
(61 cm)
Sample Outlet
Drain Line
Sample Inlet
