Replacing the Fuses 43
3
3.3 Replacing the Fuses
Replace the fuses under the conditions indicated in the troubleshooting table (see Section
2.1, Startup Diagnostics). The 996 detector requires two 4 A, 250 V fuses (5 mm
×
20
mm).
Caution:
To avoid electrical hazards, power off the 996 detector and disconnect the power
cord before you perform the following procedure.
Procedure
To replace the two fuses in the 996 detector:
1. Power off the 996 detector and remove the power cord.
2. Locate the fuse block above the power cord plug (Figure 3-8
) on the rear panel.

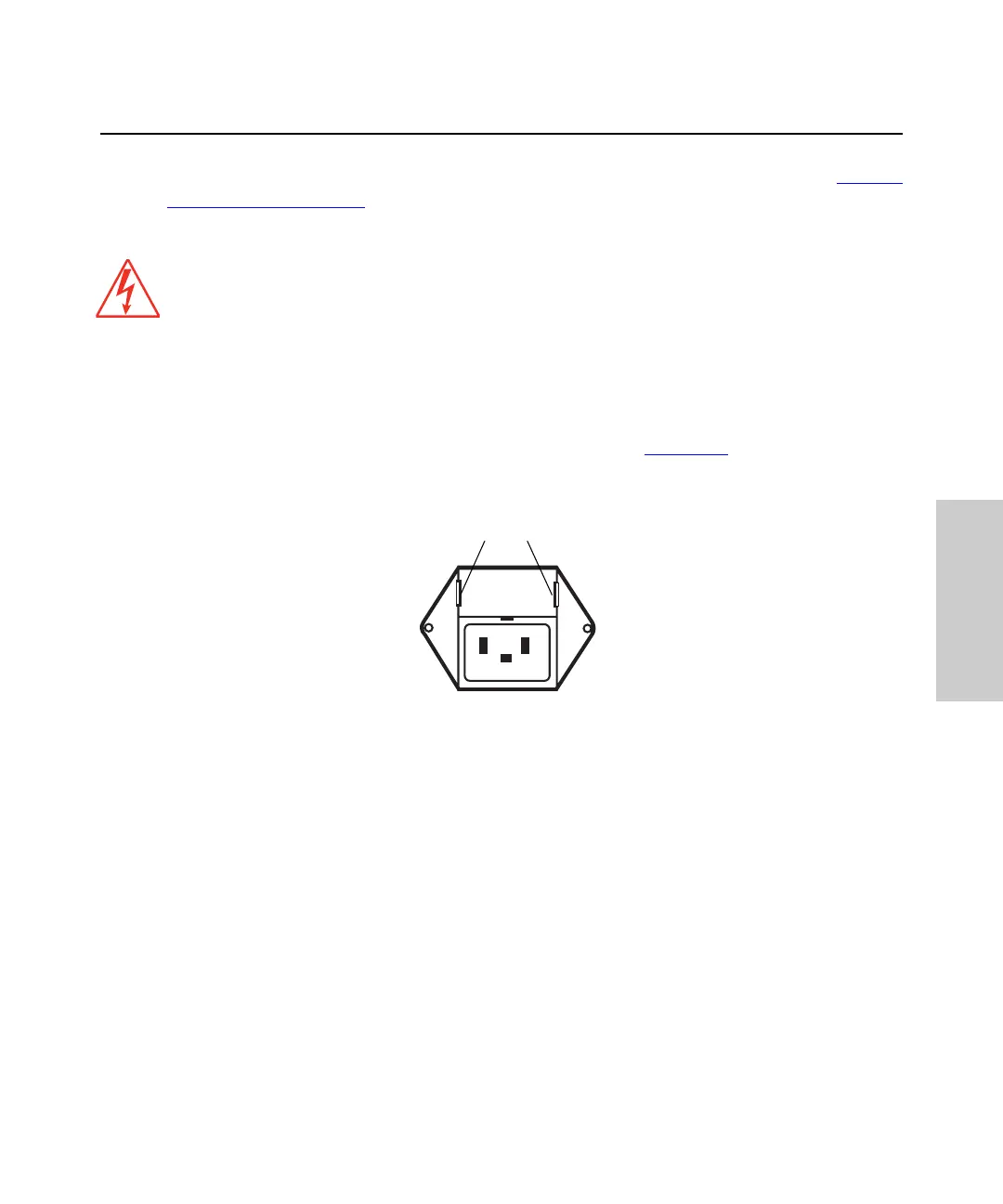

Figure 3-8 Fuse Block
3. Squeeze the two side clips on the fuse block while you pull out the block.
4. Remove the fuses from the block, then install the new fuses.
5. Orient the fuse block with the small tab pointing down, then push in the block
until the side clips engage.
6. Connect the power cord, then power on the 996 detector.
Squeeze Side Clips
to Access Fuses
To Next Page
