Maintaining the column compartments 117

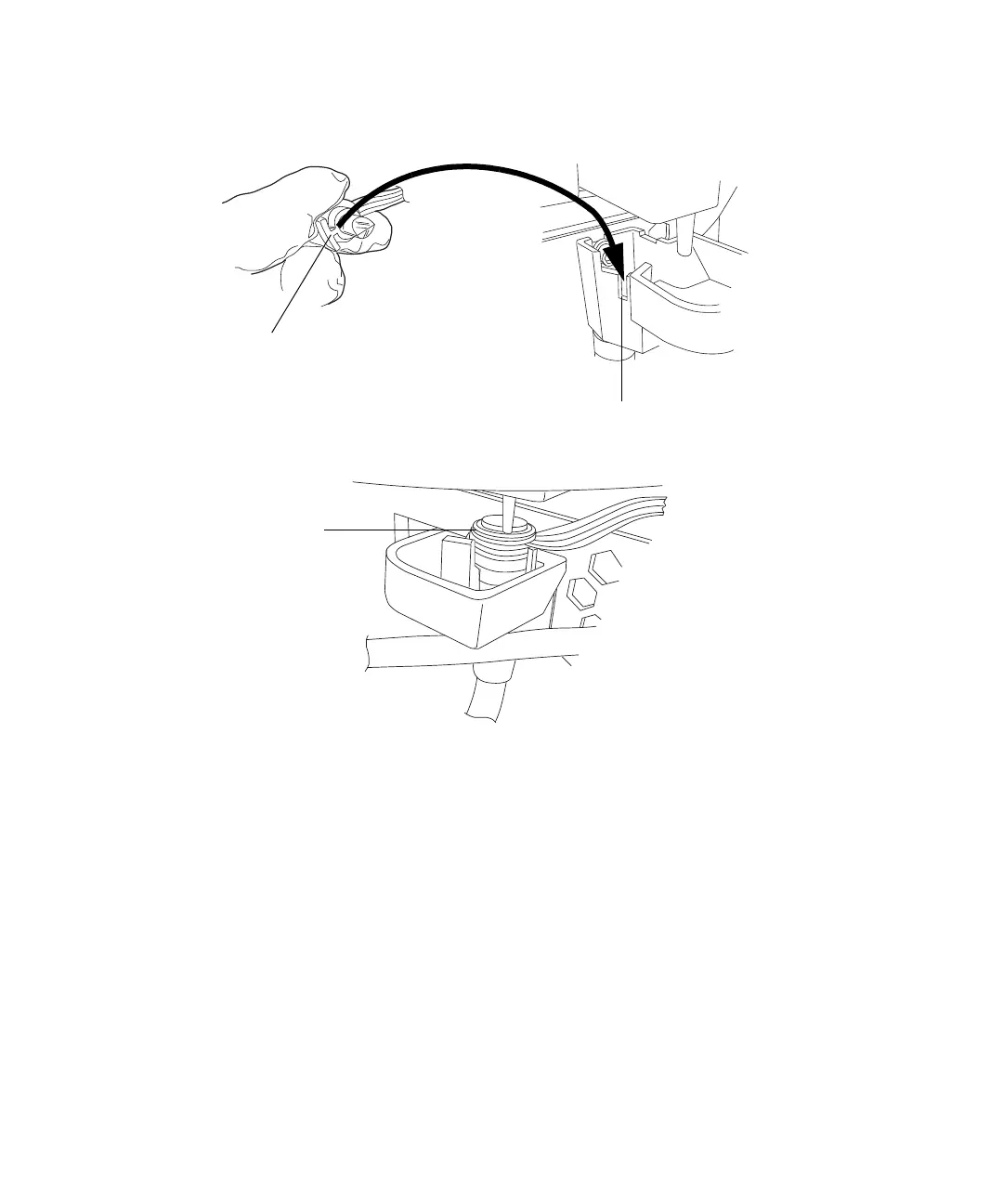

11. Align the leak sensor’s T-bar with the slot in the side of the leak sensor
reservoir, and slide the leak sensor into place.
12. Plug the leak sensor connector into the front of the instrument.
TP02909
TP02892
Slot in leak
sensor reservoir
T-bar
Leak sensor
installed in
reservoir
