Waters ACQUITY UPLC - Replacing the Column Manager Switching-Valve Cartridge

118

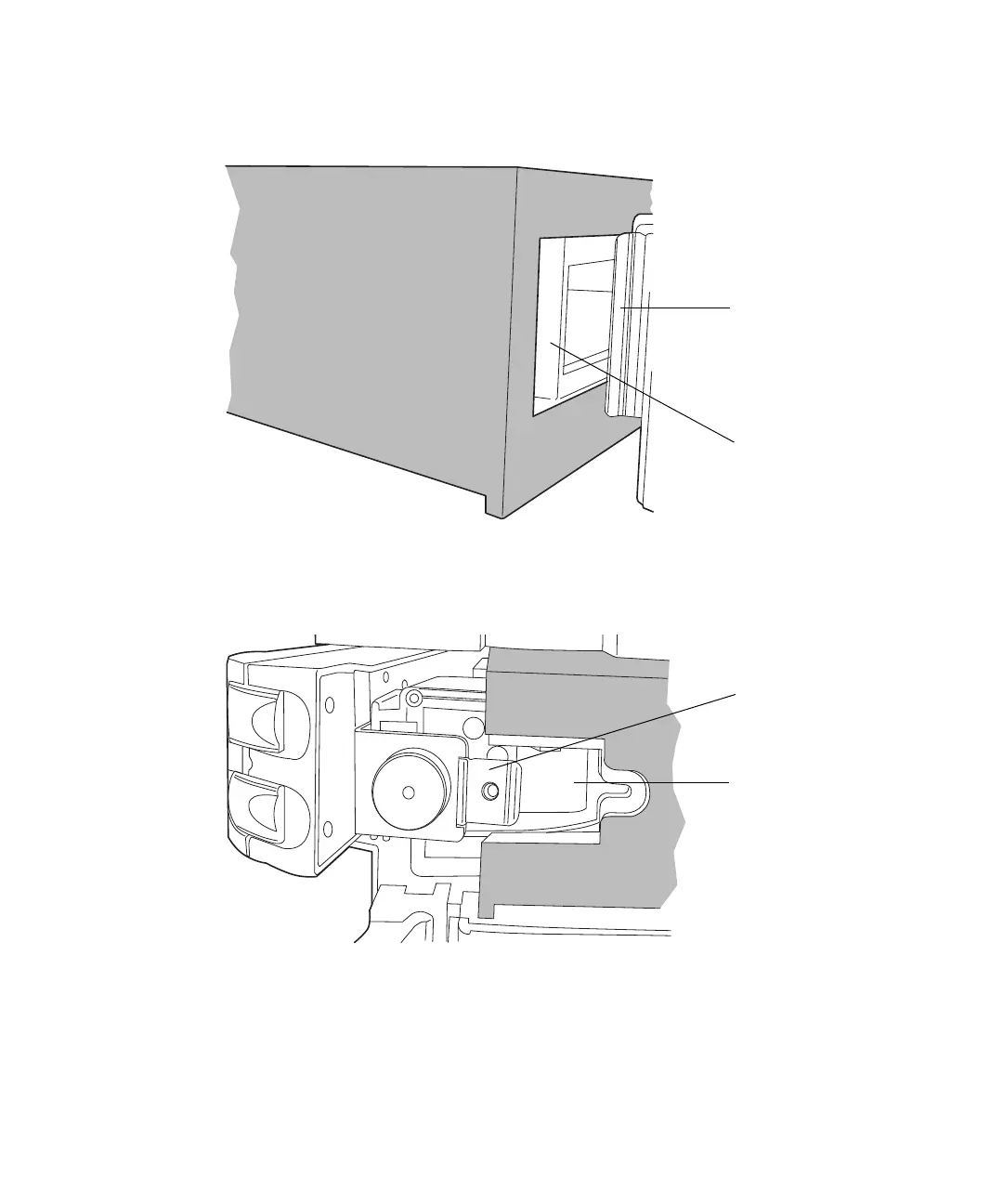

13. Insert the tab on the left-hand side of the column heater into the slot on
the left-hand side of the instrument chassis.
14. Hold the left-hand side of the column heater into the slot, and guide the
eCord receptacle tab on the right-hand side into the cutout in the
instrument chassis.
15. Install and tighten the TORX screw located behind the eCord receptacle.
Tab
Slot
Tab
Cutout
