Maintaining the column compartments 135

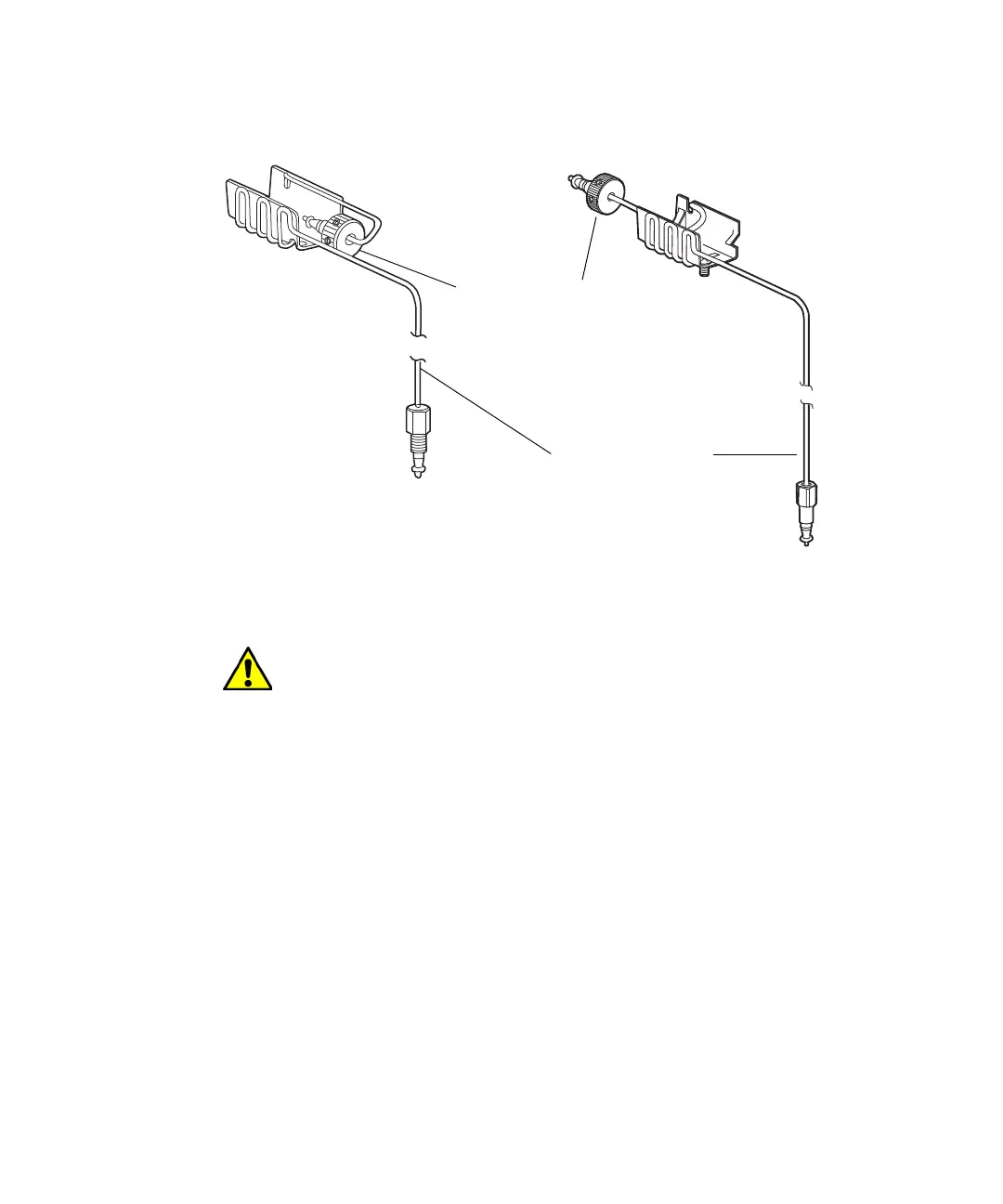

Column stabilizer assembly (two styles):
8. Carefully route the column-stabilizer-inlet tubing through the groove on
the side of the column compartment.
9. Insert the Phillips screws into the threaded holes, and tighten them
gently using the Phillips screwdriver.
10. Route the column-stabilizer-inlet tubing through the cutout in the top of
the sample manager door to the injector.
Requirement: Do not route the tubing behind the sample manager door
hinge.
Caution: To avoid stripping threads, do not overtighten screws.
Reusable fittings
Inlet tubing to injector
For 150-mm column
For 50-mm or 100-mm column
