20. Install the leak sensor:

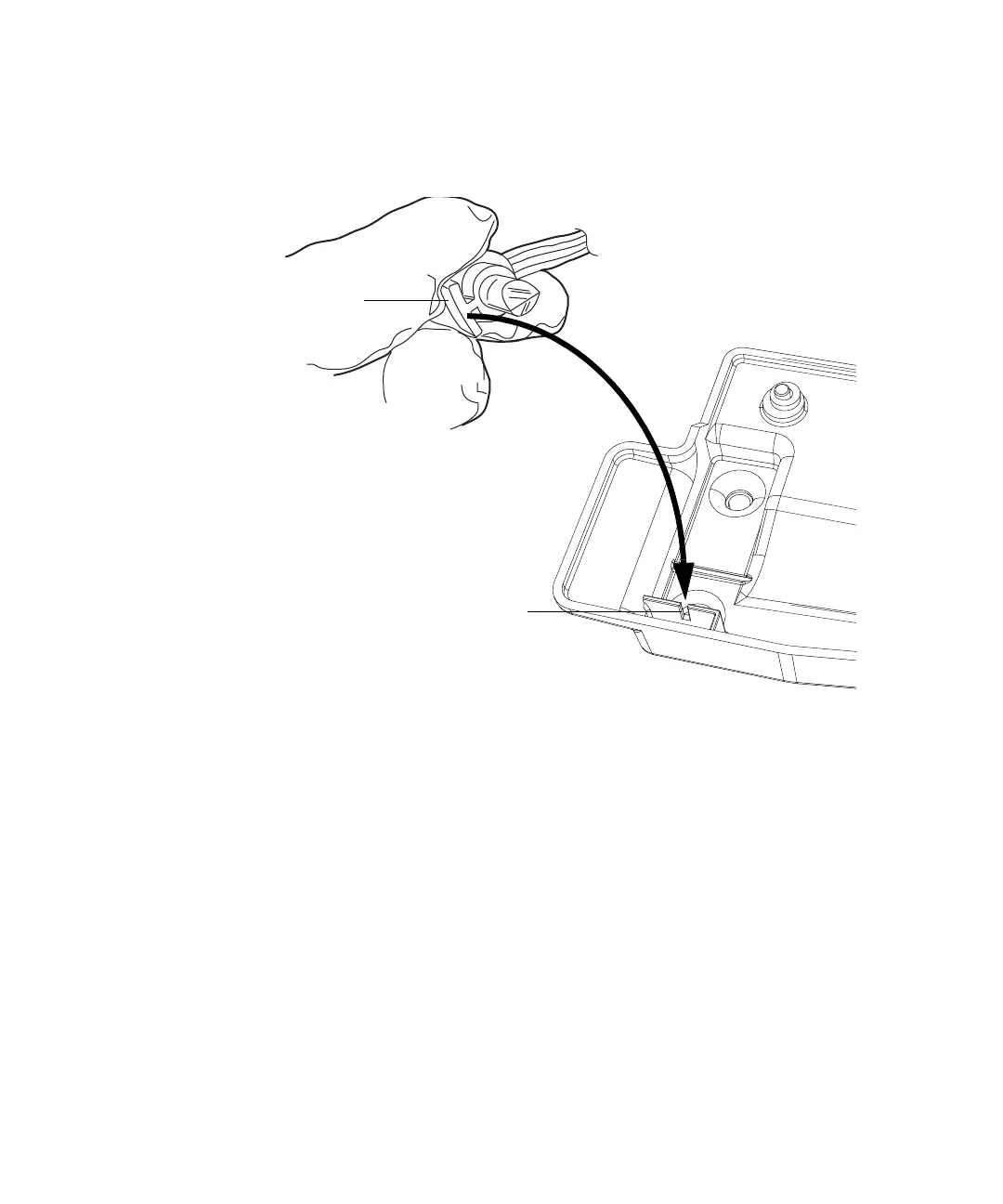

a. Align the leak sensor’s T-bar with the slot in the left-hand side of
the MS-bracket drip tray, and slide the leak sensor into place.
b. Route the leak sensor cable through the slot in the column heater
housing.
21. Secure the 25-pin cable:
a. Insert the 25-pin cable into the cable clamp.
b. Install the cable clamp on the threaded stud inside the column
heater housing, and then thread the 4-mm nut onto the stud.
