Preparing the column compartments 29
c. Tighten the cable clamp nut with the 4-mm wrench.
22. Install the column heater in its housing:
a. Insert the tab on the left-hand side of the column heater into the slot
on the left-hand side of the housing.
b. Hold the left-hand side of the column heater into the slot, and guide
the eCord tab, on the right-hand side, into the cutout in the column
heater housing.
c. Install the TORX screw in the tab and tighten it.

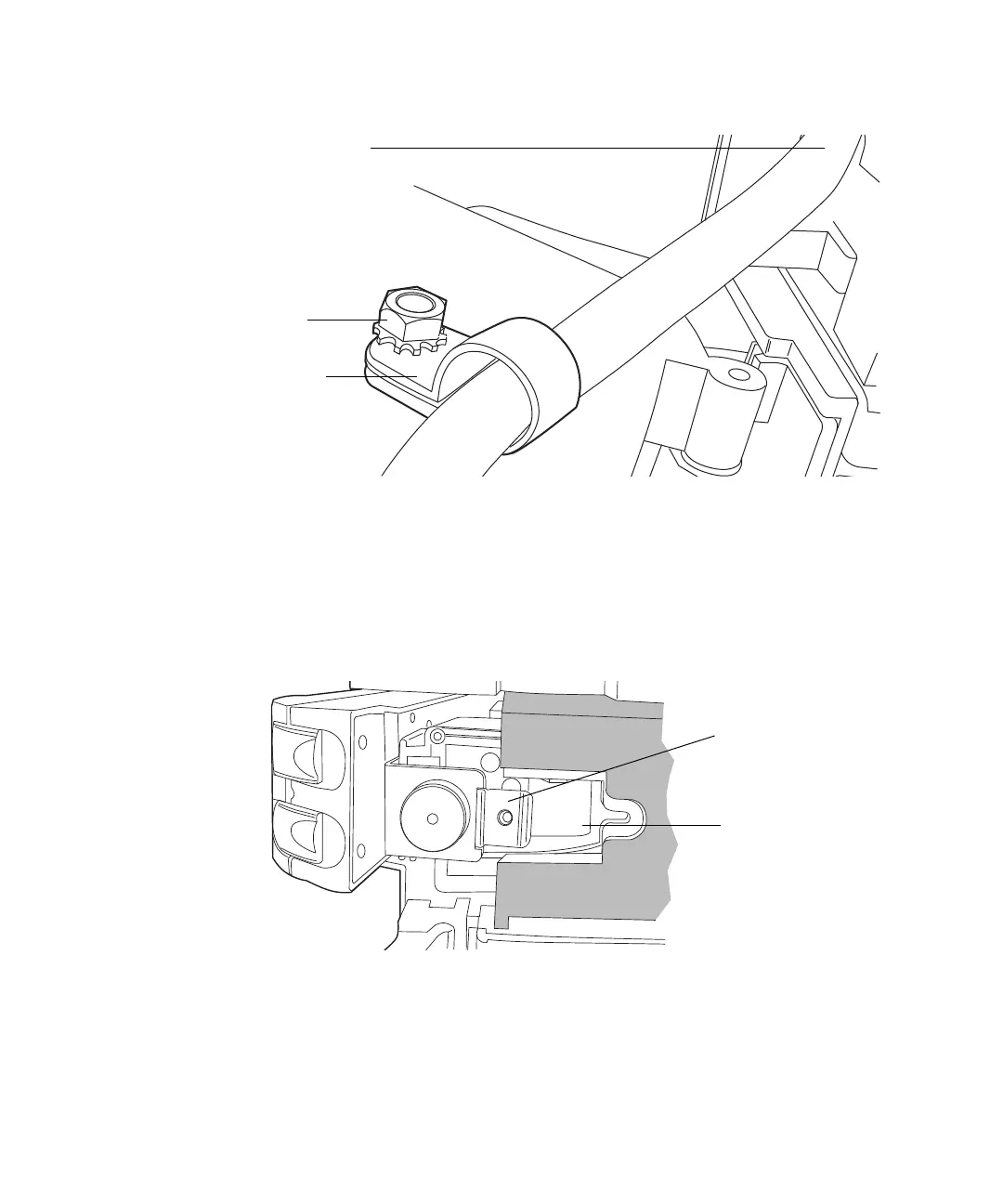

25-pin cable routed
through slot
4-mm cable clamp
nut on stud
Cable clamp
