4. Insert the two M4 × 50-mm long screws into the side-mount shafts, from
the side with the knurled, side-mount collars.
5. Screw the side-mount shafts into the top, right-hand side of the sample
manager and the bottom, right-hand side of the solvent manager.

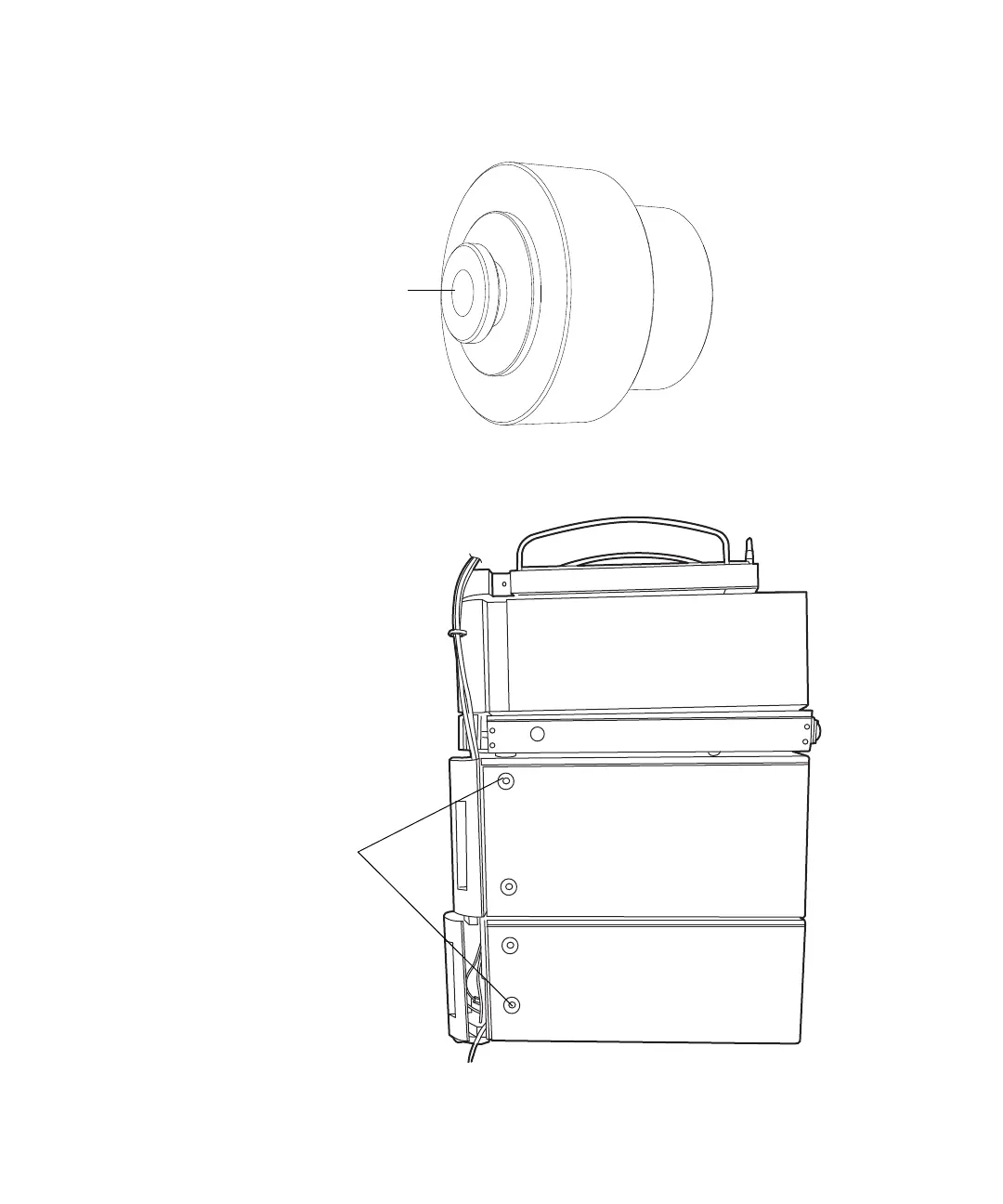

Insert M4 × 50-mm long
screws here
Install side-mount
shafts here
Detector
Sample manager
Solvent manager
