42

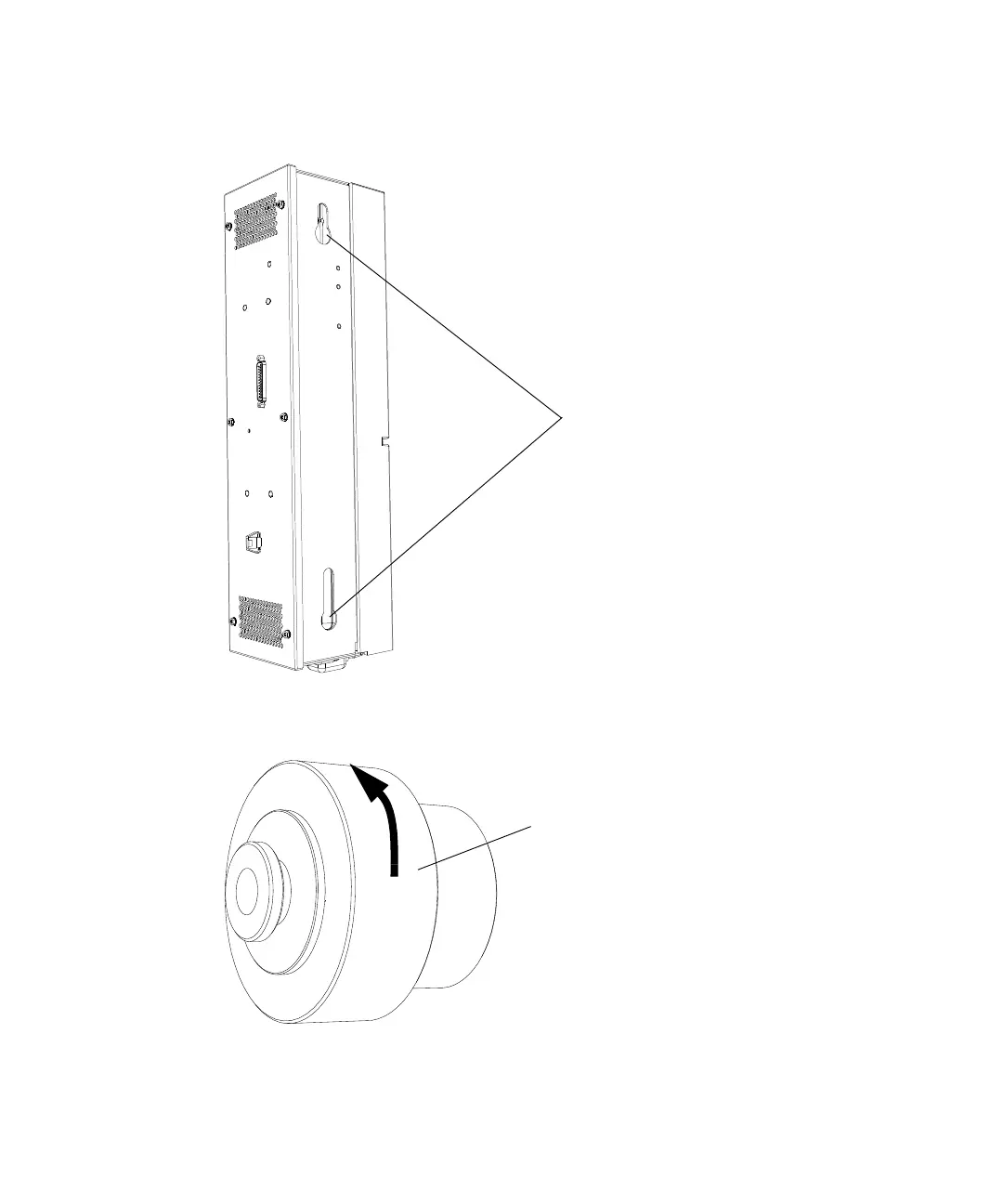

6. Mount the CH-30A by sliding the large key-hole slots onto the side
mount shafts.
7. Turn the knurled, side-mount collars counter-clockwise, to pinch the
CH-30A sheet metal chassis within the mount for a secure fit.
8. Connect one end of the pin cable to the socket on the 30-cm column
heater’s rear panel.
Key-hole slots
Knurled side mount collar
