Waters ACQUITY UPLC - Page 47

Preparing the column compartments 43
9. Connect the other end of the pin cable to the socket on the sample
manager’s rear panel.
10. Connect the drain tubing to the barbed fitting on the bottom front of the
column heater.
11. Route the other end of the drain tubing to a suitable waste container.

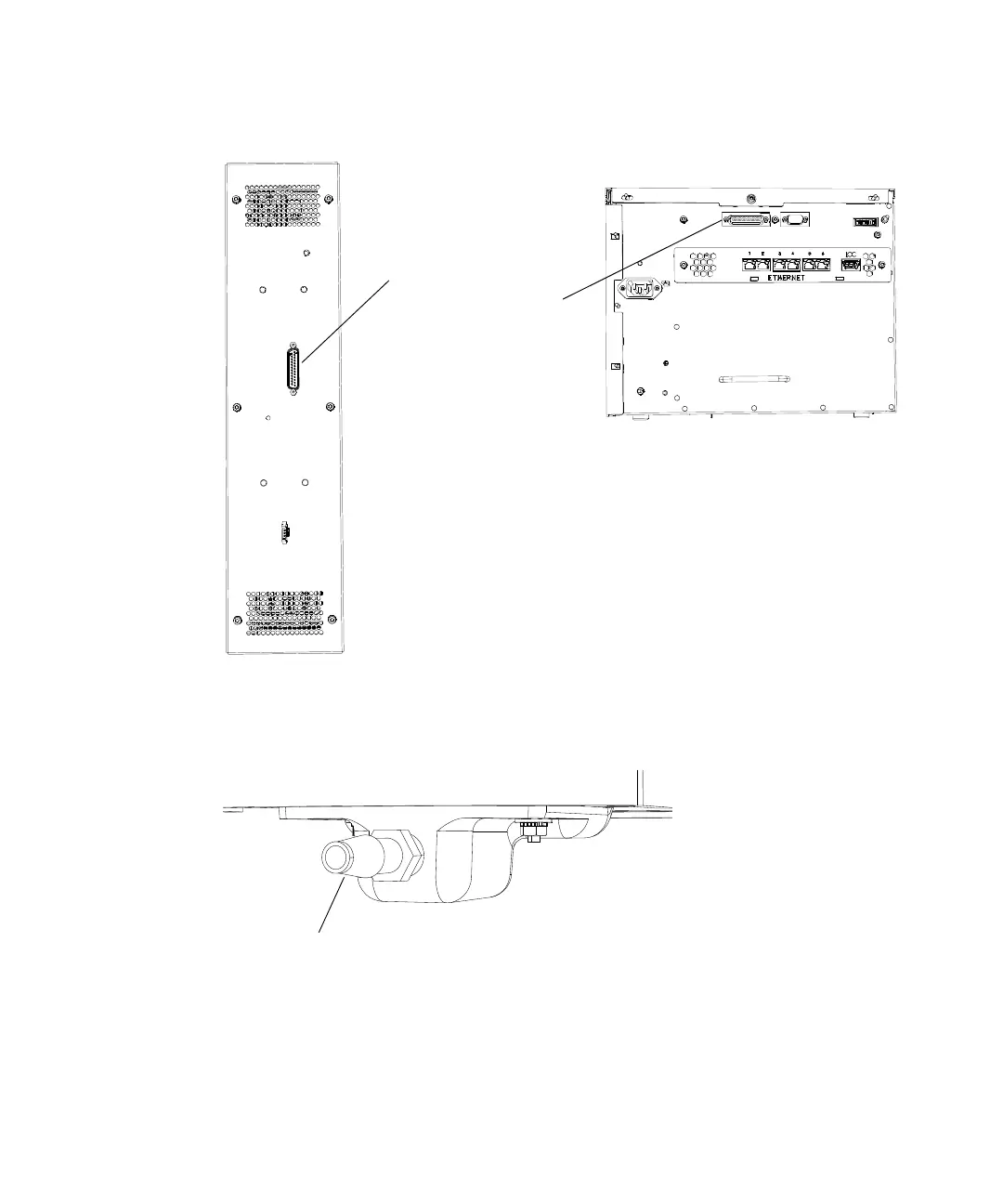

Sample manager - FTN
30-cm column heater
Connect the pin cable
between these sockets
Drain fitting
