46

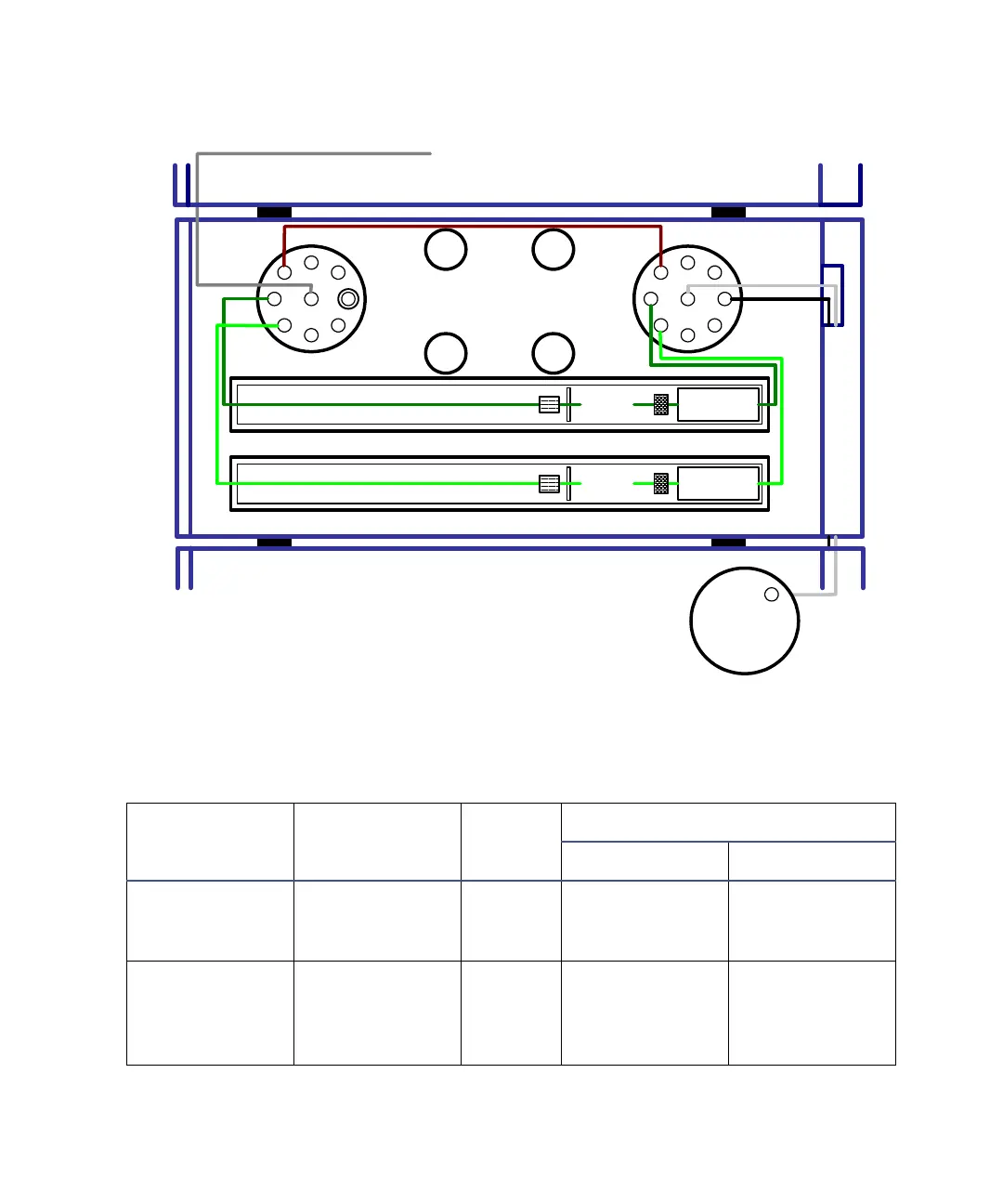

Two-column configuration, with inlet switching-valve on the right-hand side:
Note: See the appropriate site preparation guide for information regarding
which tubing and valve kit to use.
Two-column configuration plumbing connection details:
From To
Length
(inches)
Part number
H-Class I-Class
CM-A inlet
valve, port B
CM-A outlet
valve, port B
N/A 430002725,
bypass tubing,
.005-inch ID)
430002725,
bypass tubing,
.004-inch ID)
CM-A inlet
valve, port W
a
Solvent
manager front
drip tray waste
port
N/A 430002727,
waste tubing,
.010-inch ID
430002727,
waste tubing,
.004-inch ID
3
4
1
2
B
3
4
5
WI
1
2
B
3
4
5
6
O
6
W
Pin
Plug
6
Injector
Column manager
Outlet
switching
valve
Inlet
switching
valve
To detector
Sample manager
Column
position 1
Column
position 2
