Waters ACQUITY UPLC - Exchanging CM-A Valve Cartridges; CM-A Inlet and Outlet Switching-Valve Cartridge Exchange

62
Tip: To avoid leaks, ensure that the convoluted drip tube is fully inserted
into the front, waste port of the CM-A drip block.

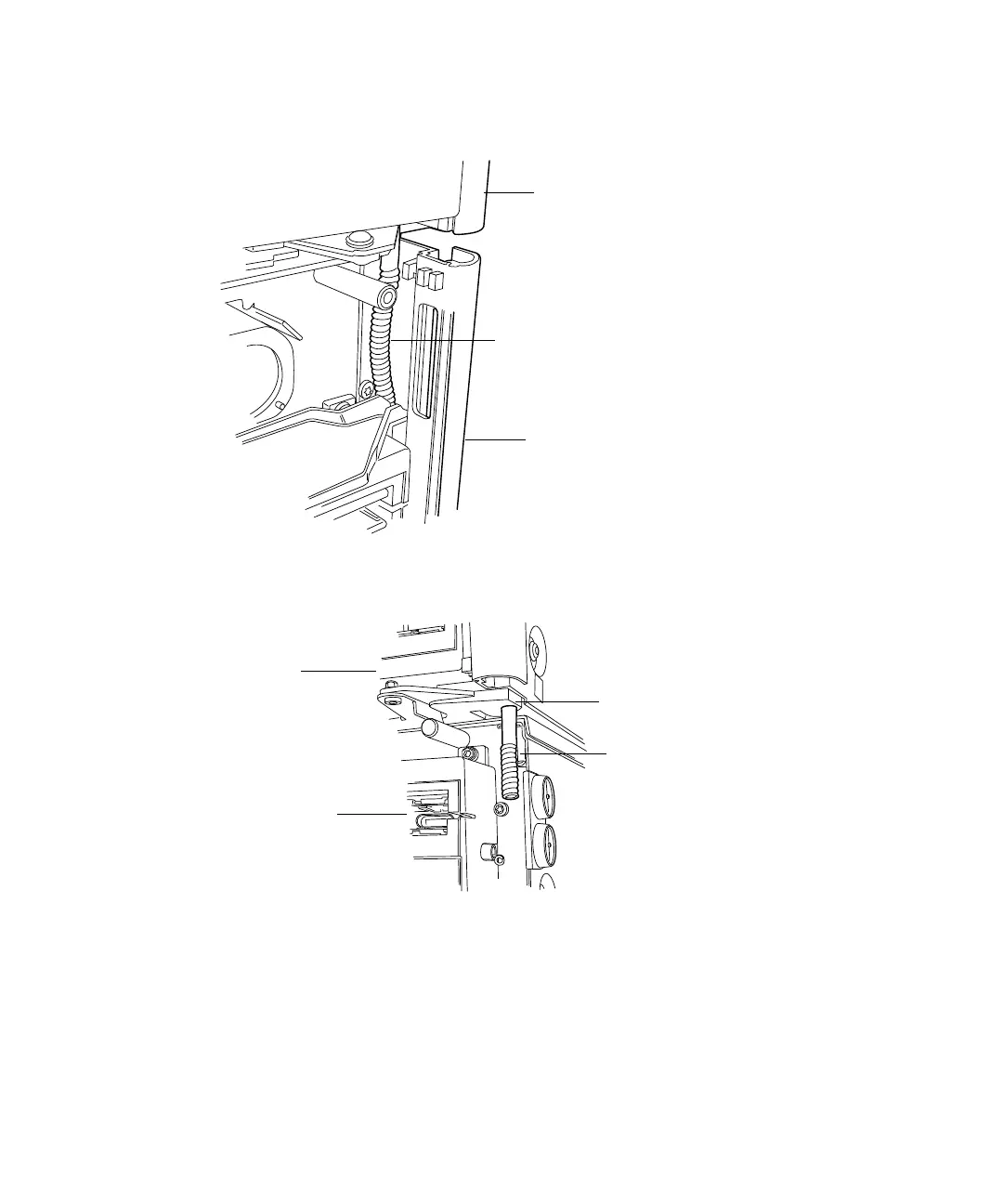

10. Install the 2.0-inch convoluted drip tube (part number 430002827) onto
the CM-A drip tray.
Upper CM-Aux
Convoluted drip tube (4.125-inch)
CM-A drip block
Convoluted drip tube (2.0-inch)
CM-A drip tray
CM-A
Lower CM-Aux
