11. Insert the open end of the convoluted tube into the front waste port of
the lower CM-Aux’s drip block, and carefully reinstall the drip block
assembly onto the lower CM-A, as shown in the figure below.
Tips:
• Use your left hand to support the drip tray.
• You can loosen or tighten the two, T20 TORX, securing screws
slightly, so that the screw heads can fit into the slots in the drip
block.
• If the internal drip tube extends into the drip block, use needle-nose
pliers to extend the tube outward approximately 0.25 inches.

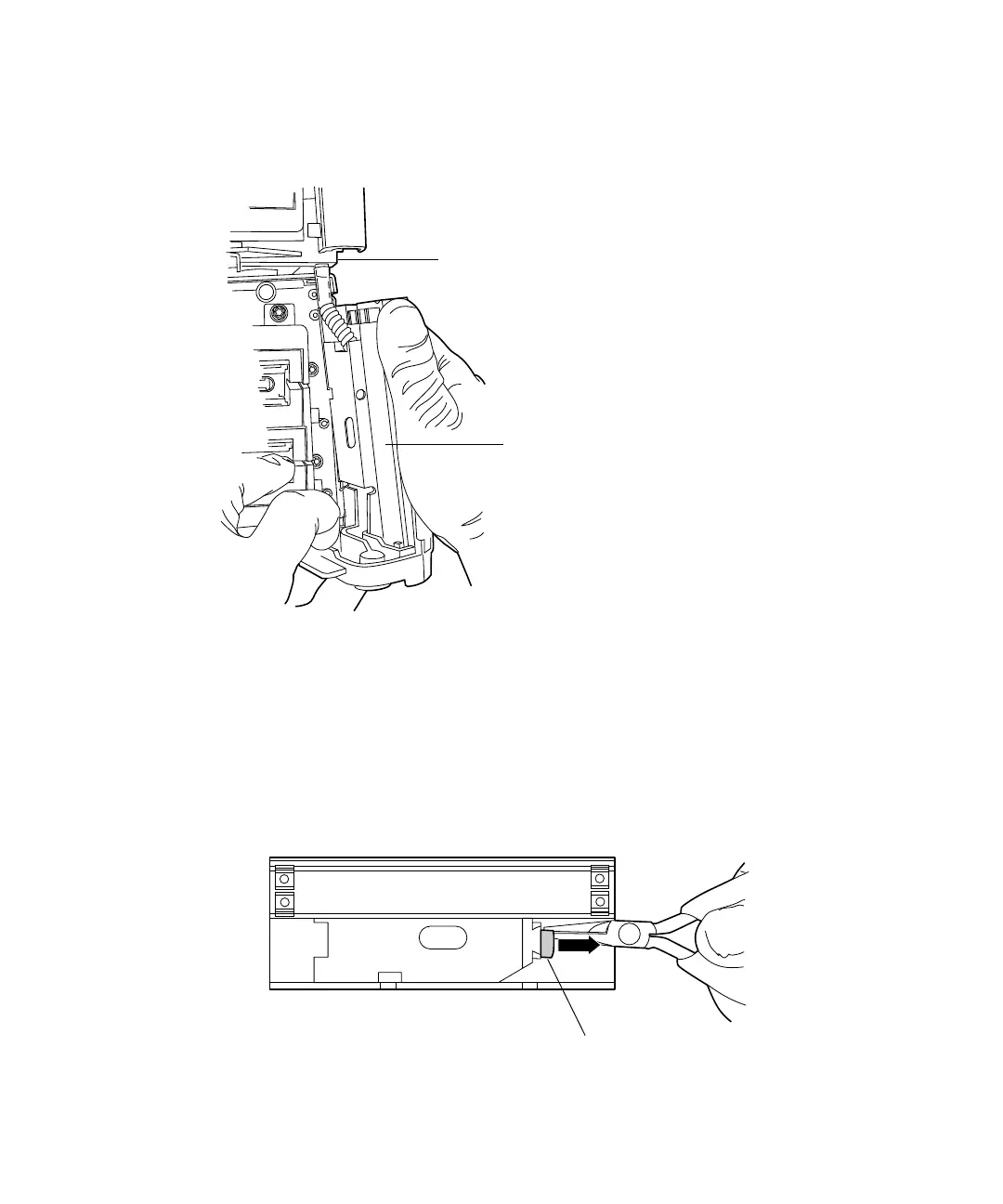

CM-A drip tray
Lower CM-Aux drip block
Extending the tube approximately 0.25 inches
