Installing the swivel drain and waste tubing
To install the swivel drain and waste tubing:
1. Push the latches atop the CM-A’s column compartment cover inward, to
disengage them from the latch pins.
2. Tilt the column compartment cover forward, just enough to clear the
valve drip tray.
3. Pull the column compartment cover up and away from the CM-A.
4. Remove the mounting screw and washer from the swivel drain cup.

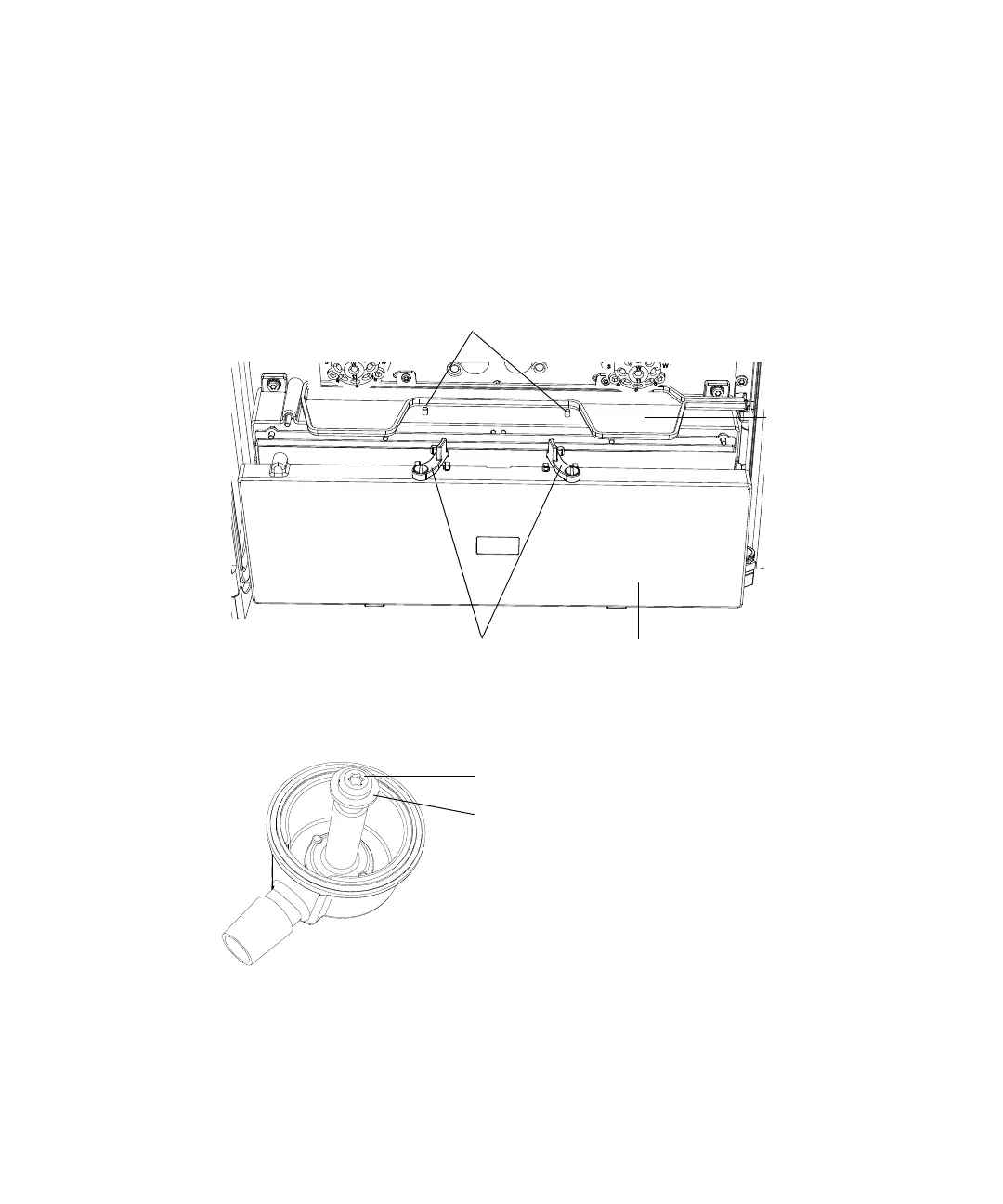

Latches
Latch pins
Valve drip tray
Column compartment cover
