5. Install the swivel drain cup on the bottom of the drip tray, and thread
the mounting screw through the hole in the top of the drip tray.
6. Use a T8 TORX driver to minimally tighten the mounting screw.
Requirement: Do not overtighten the screw.
Caution: To avoid leaks, ensure the O-ring is properly seated in
the swivel drain cup.

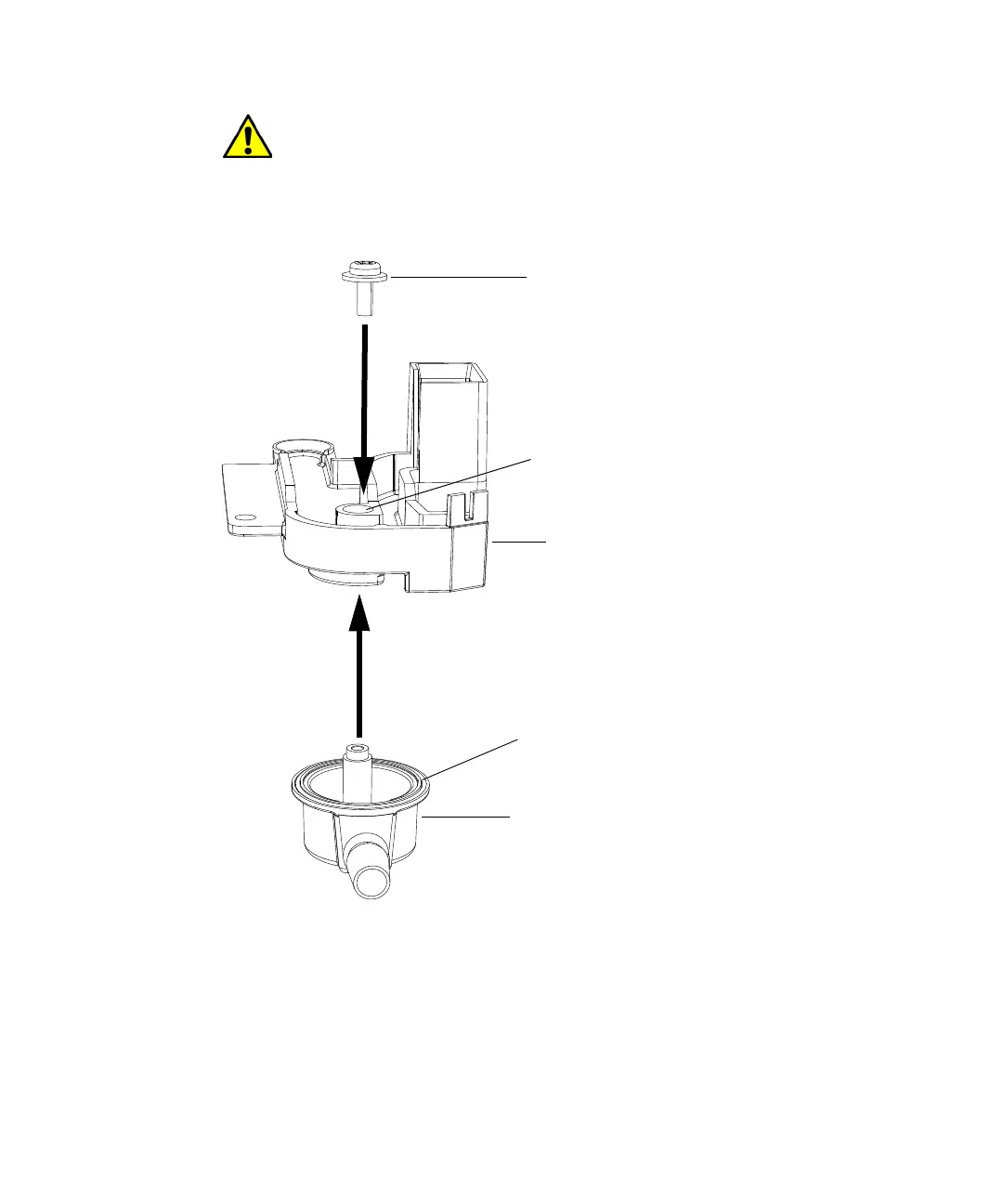

Swivel drain cup
CM-A drip tray
Mounting screw and washer
Hole in top of drip tray
O-ring
