Compression screw
2-piece ferrule
Tighten the fitting finger-tight.

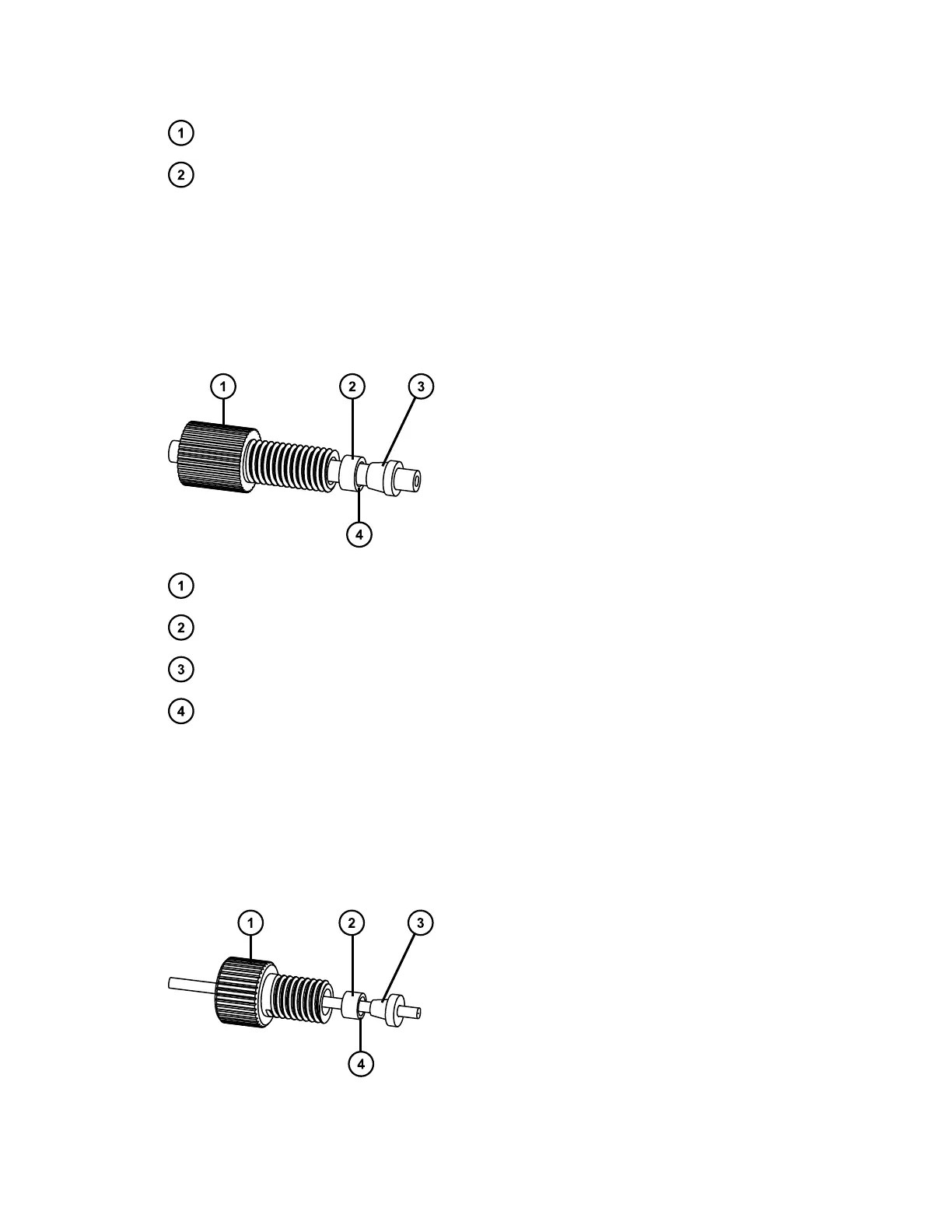

2.5.1.4 Long 1/4-28 fitting with flangeless ferrule and stainless steel lock ring installed on
1/8-inch OD tubing
First use or re-installed
Compression screw
Lock ring
Ferrule
End of lock ring with larger inside diameter (ID)
Tighten the fitting finger-tight.
2.5.1.5
Short 1/4-28 fitting with flangeless ferrule and stainless steel lock ring installed
on 1/16-inch OD tubing
First use or re-installed
August 8, 2016, 715005049 Rev. C
