Re-installed tightening

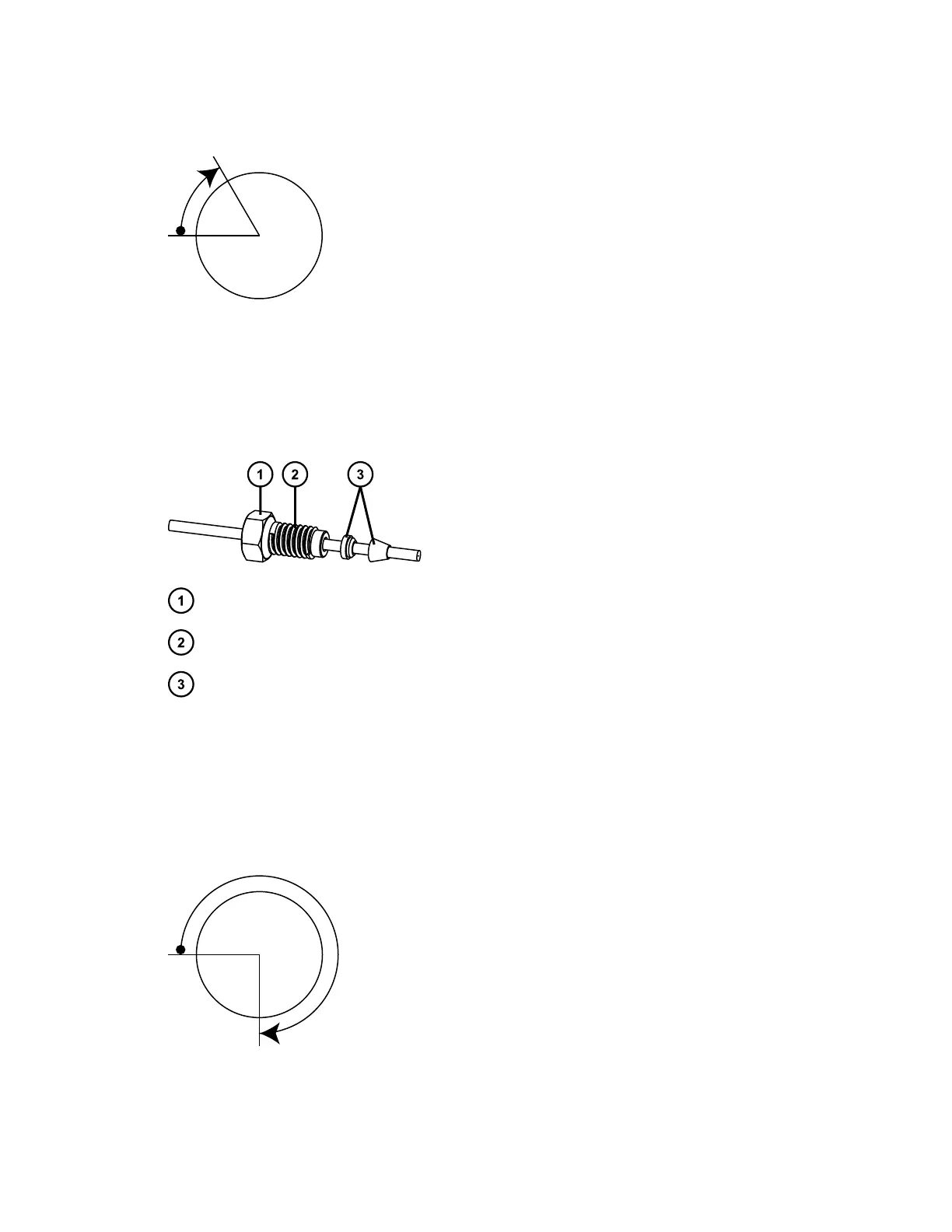

2.5.1.8 Stainless steel (gold-plated) fitting with short flats and 2-piece stainless-steel
ferrule
First use
Short flats
Compression screw
2-piece stainless steel ferrule
Tighten the fitting finger-tight plus an additional 3/4-turn using a 1/4-inch open-end wrench. For
detailed instructions about assembling new fittings, see Assembling new fittings.
Tip: To prevent band spreading, ensure that the tubing is fully bottomed in the fitting before
tightening the compression screw.
First use tightening
