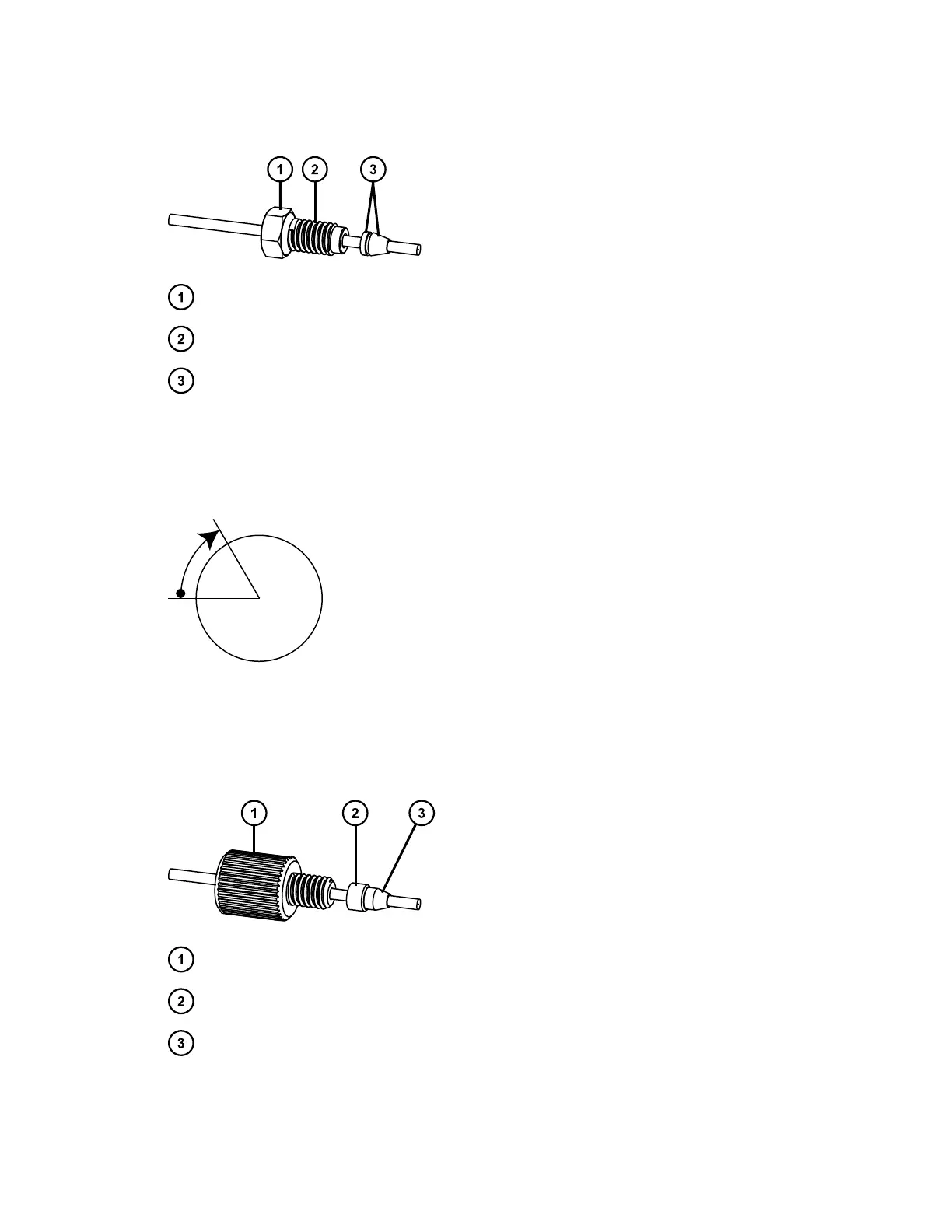

Re-installed
Short flats
Compression screw
2-piece stainless steel ferrule
Tighten the fitting finger-tight plus as much as an additional 1/6-turn using a 1/4-inch open-end
wrench.
Re-installed tightening
2.5.1.9
PEEK fitting with PEEK ferrule and stainless steel lock ring
First use or re-installed
Compression screw
Lock ring
Ferrule
Tighten the fitting finger-tight.
