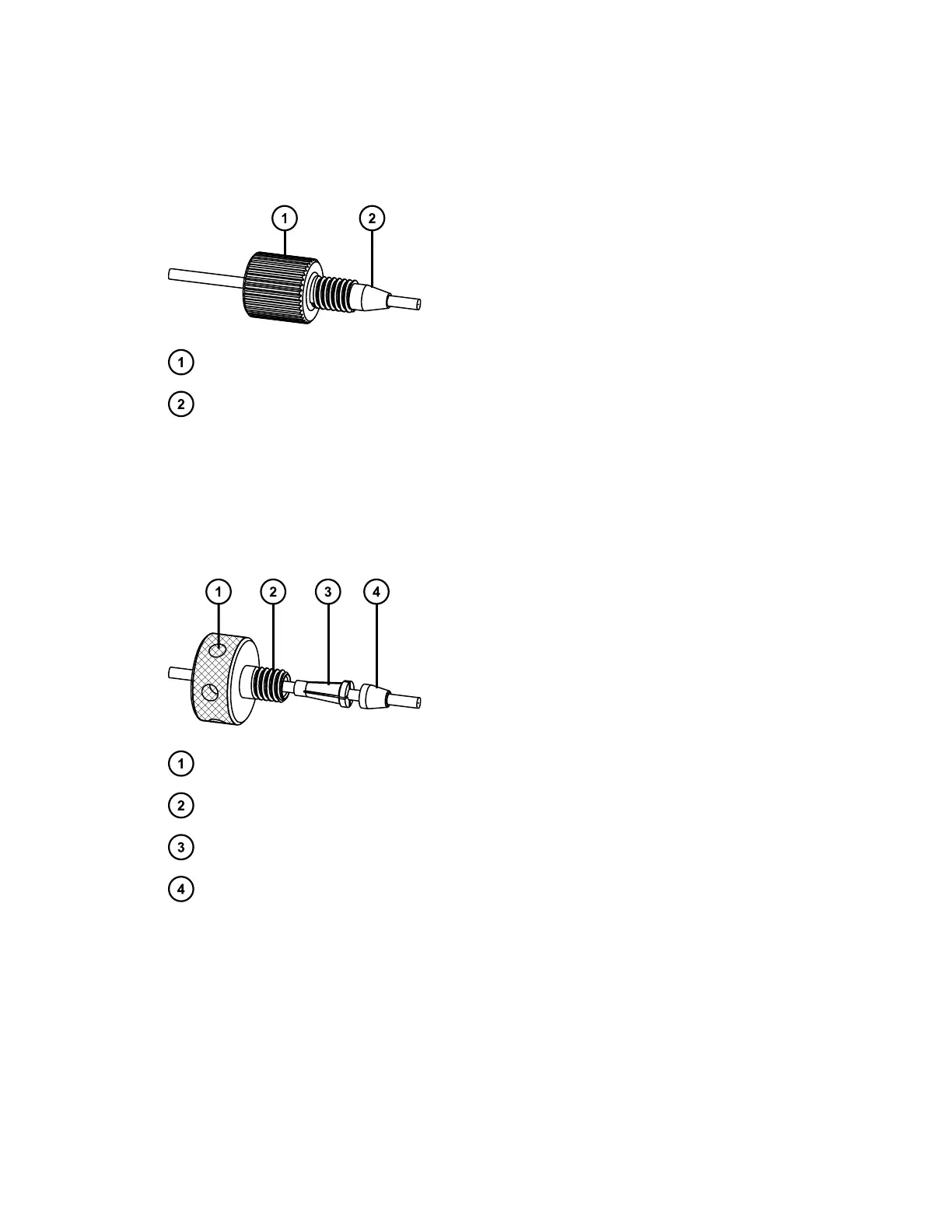

2.5.1.10 One-piece PEEK fitting
First use or re-installed
Compression screw
Ferrule
Tighten the fitting finger-tight.
2.5.1.11
Gold-plated compression screw with collet
First use
Hole for inserting the collet and compression-screw multi-tool
Compression screw
Collet
PEEK ferrule
To tighten this fitting for first use:
1. Finger-tighten the fitting.
2. Using the collet and compression-screw multi-tool and a 5/16-inch open-end wrench,
tighten the fitting as much as an additional 1/6-turn.
