Figure 3-3 shows the rear panel of 0E-4CHNVR1TB & 0E-4CHNVR2TB and the
interfaces on it.

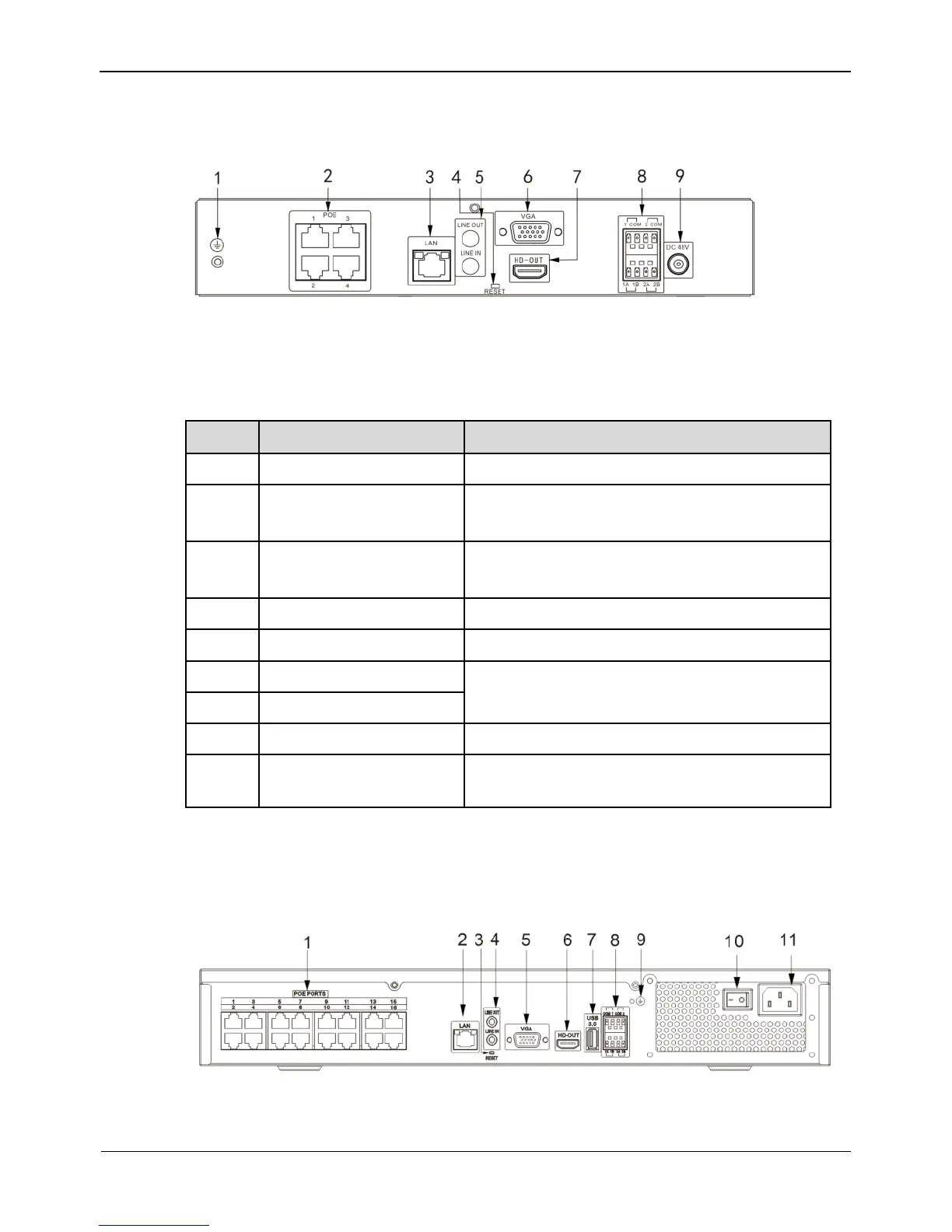

Figure 3-3 Rear panel of 0E-4CHNVR1TB & 0E-4CHNVR2TB
Table 3-2 shows the description of rear panel of 0E-8CHNVR2TB, 0E-4CHNVR1TB
& 0E-4CHNVR2TB.
Table 3-2 Elements of the real panel
NO.
Name
Description
1
Ground screw
Safe ground screw of the device
2
PoE network
interface
PoE network interfaces
3
LAN
RJ45 10 /100/1000 Mbps adaptive
Ethernet interface
4
Reset
Factory reset button
5
Line In/ Line Out
Audio input/ Audio output
6
VGA
Video output interface
7
HD-OUT
8
Alarm In/Out
2 alarm input, 2 alarm output
9
Power interface
AC 110V/220V power input interface of the
device
Figure 3-3 shows the rear panel of 0E-16CHNVR2T & 0E-16CHNVR4T and the
interfaces on it.
Table 3-3shows the description of rear panel of 0E-16CHNVR2T & 0E-16CHNVR4T.
