3 Operation Instruction
Network Video Recorder(NVR)
User Manual
8
Issue V1.0 (2018-05-11)
3 Operation Instruction
3.1 Front panel

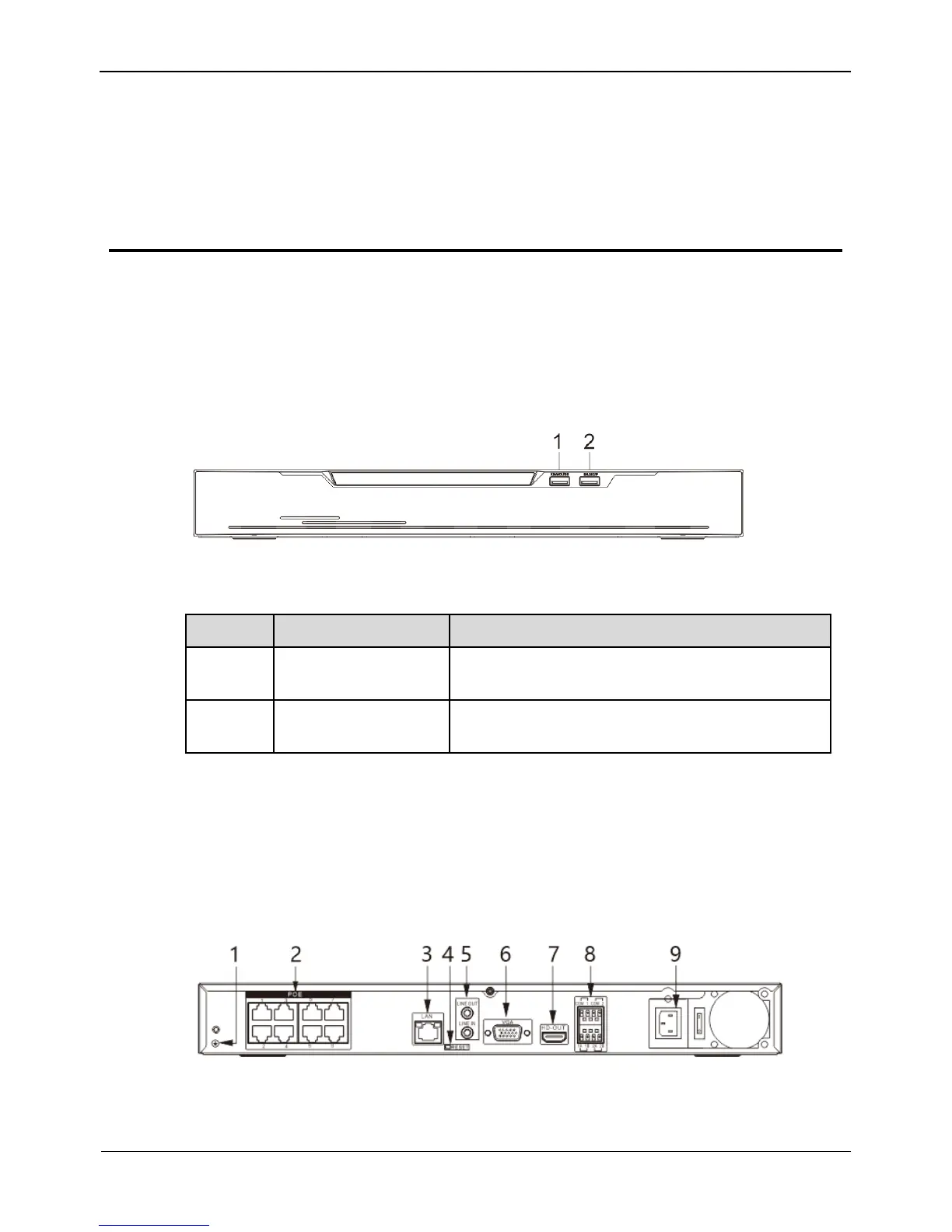

Figure 3-1 shows the front panel of NVR. Table 3-1 shows the description of front
panel.
Figure 3-1 Front panel
Table 3-1 Elements of the front panel
NO.
Element
Description
1
KB/MOUSE
Supports connection to a USB mouse and
keyboard.
2
BACKUP
Supports connection to a USB flash drive or
USB removable hard disk.
3.2 Rear panel
Figure 3-2 shows the rear panel of 0E-8CHNVR2TB and the interfaces on it.
Figure 3-2 Rear panel of 0E-8CHNVR2TB
