7 Connectors
7.1 Standard
Integrated VHF antenna splitter with connection plug for VHF antenna (SO239) and adapter
cable to VHF radio (TNC)
External GPS antenna (BNC)
USB Port (Mini-B)
NMEA2000 Output port (MicroC)
Three equal NMEA0183 ports for IN/OUT
7.2 Options
Depending on the product variant there are additional plugs for:
WiFi (SMA if option is added for then enclosed antenna)
DVB-T2 (BNC) and FM-Radio (BNC)
LAN (RJ45)

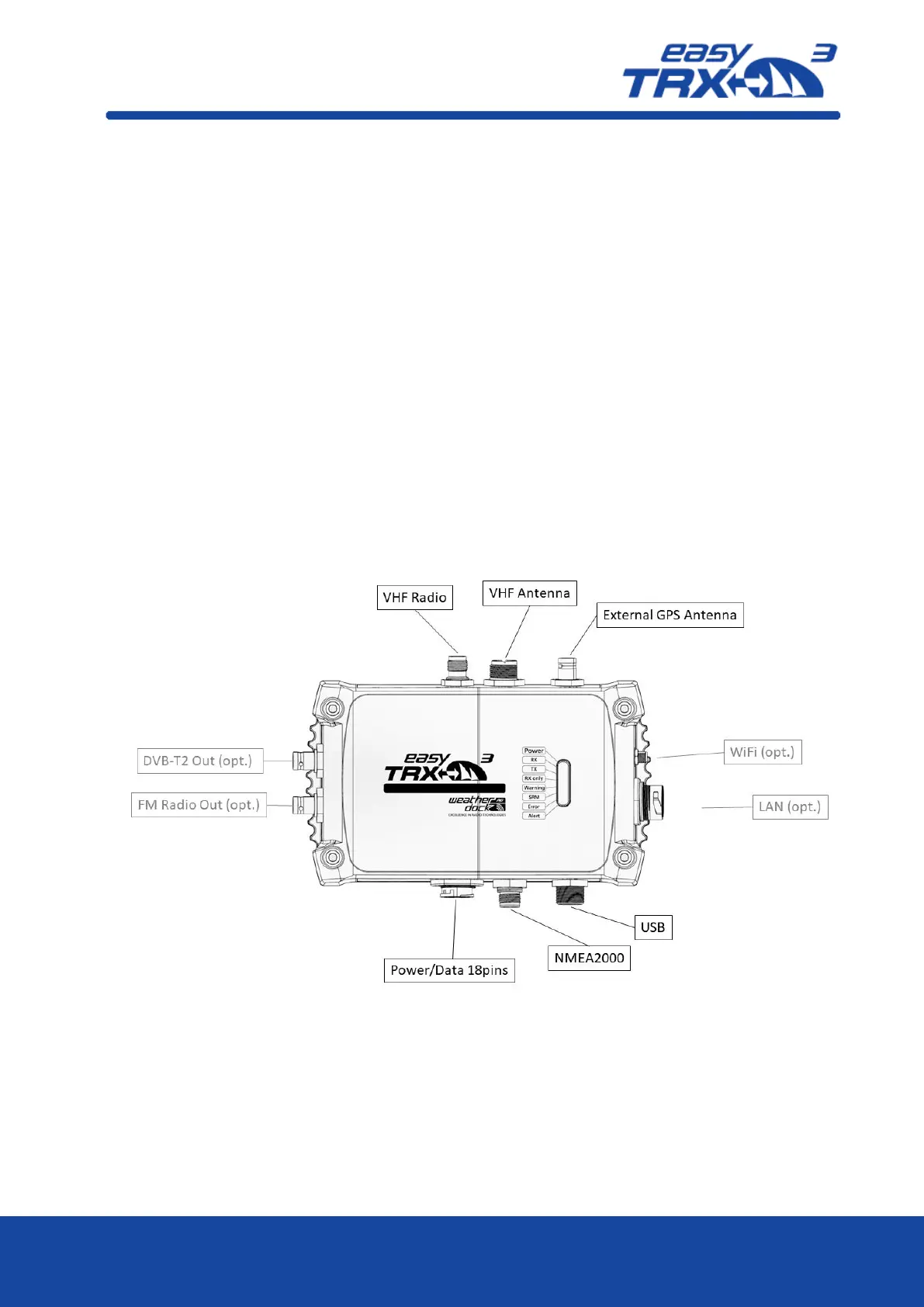

Figure: 2 Connectors
