Appendix B / Anexo B
Appendix B
Anexo B
R4.6 [0.18]
R4.60 [0.18]
52.5
[2.07]
M8 (4x)
10.0 [0.39]
15.0 [0.59]
14.0 [0.55]
216.0 [8.50]
280.0 [11.02]
675.0 [26.57]
15.1 [0.59]
205.4 [8.09]
488.1 [19.22]
619.8 [24.40]
650.0 [25.59]
312.7 [12.31]
15.1 [0.59]
274.5 [10.81]
220.5 [8.7]
67.8 [2.67]
R10.0 [0.39]
52.5
[2.07]
314.0 [12.36]
242.4 [9.55]
358.3 [14.1]
20 0.0 [7. 87]
20 0.0 [7. 87]
168.0 [6.61] 190.3 [7.49]
157.0 [6.18]
∅51.3 [2.02] (3X) Knockout ∅28.5 [1.12] (2X) ∅64.0 [2.52] (2X)
212.5 [8.37]
334.4 [-**13.16]
A
A
B
B

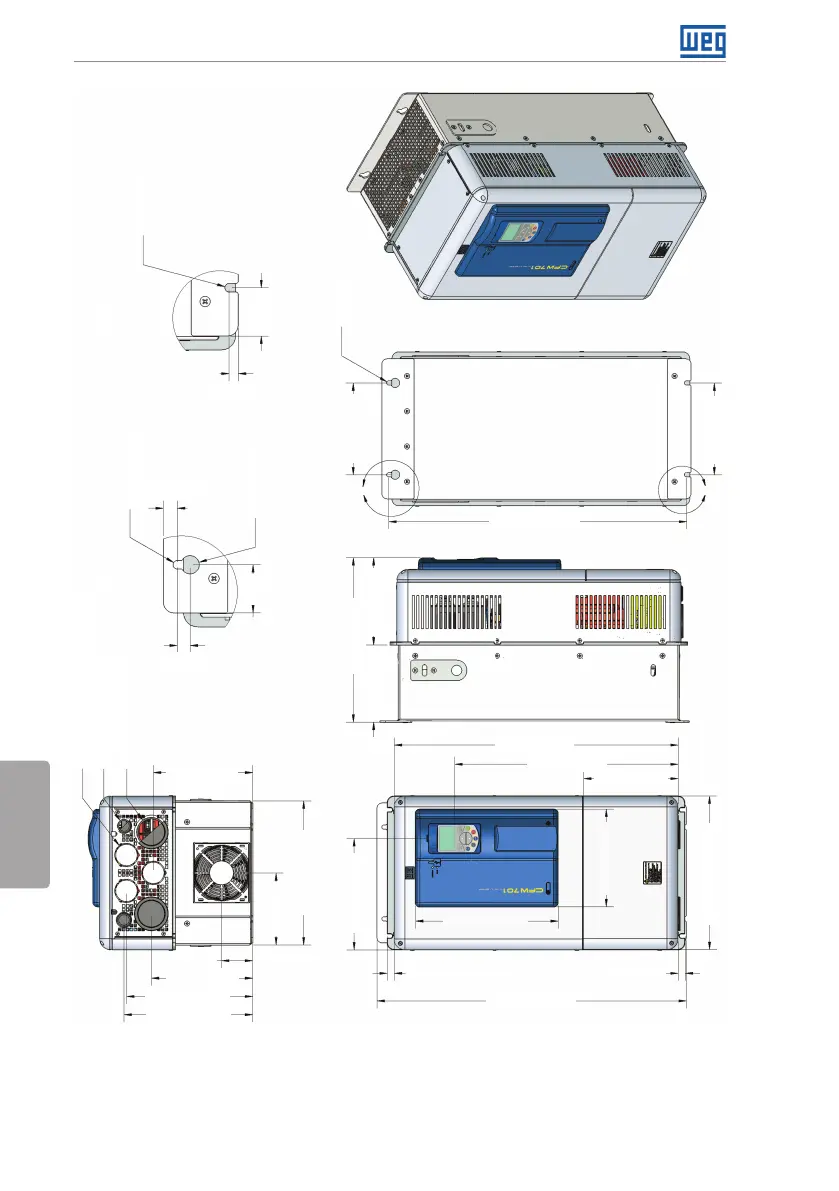

Figure B.11: Inverter dimensions in mm [in] - frame size E
Figura B.11: Dimensiones del convertidor de frecuencia en mm [in] - tamaño E
