36 | CFW701
Troubleshooting and Maintenance
English
1 2 3
Releasing the latches of the
fan cover
Fan removal
Cable disconnection
(a) Frame sizes models A, B, C, D and model 105 A with 380 / 480 V power supply
1 2 3
Fan grill screws removal Fan removal
Cable disconnection
(b) Models 142 A, 180 A and 211 A with 220 / 230 V and 380 / 480 V power supply and all the
models with 500 / 600 V power supply

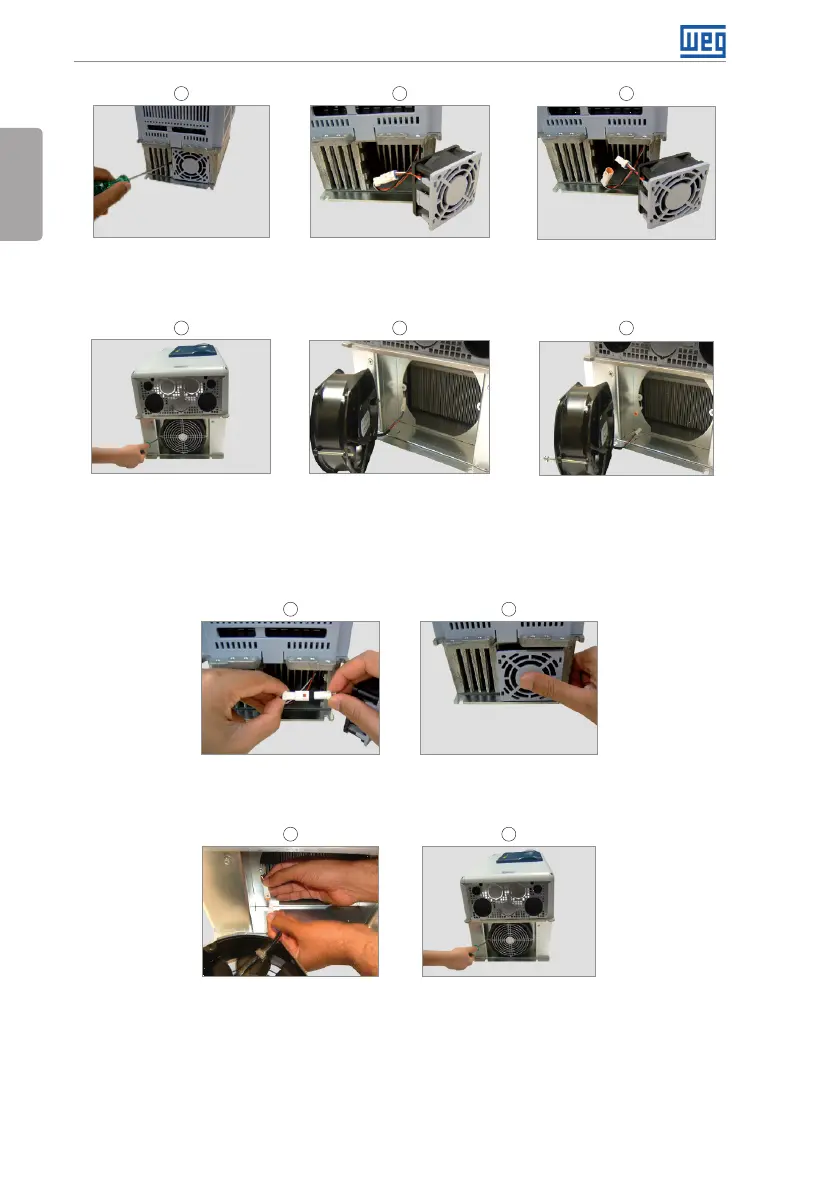

Figure 6.1: (a) and (b) Fan removal
1 2
Cable connection Fan fitting
(a) Frame sizes models A, B, C, D and model 105 A with 380 / 480 V power supply
1 2
Cable connection Fan and grill fastening
(b) Models 142 A, 180 A and 211 A with 220 / 230 V and 380 / 480 V power supply and all the
models with 500 / 600 V power supply
Figure 6.2: (a) and (b) Fan installation
