1.3.1 General NK105 with Four Axes
When general NK105 with four axes starts, the system automatically enters the
machining interface in the manual mode (ie. Jog or Step mode).

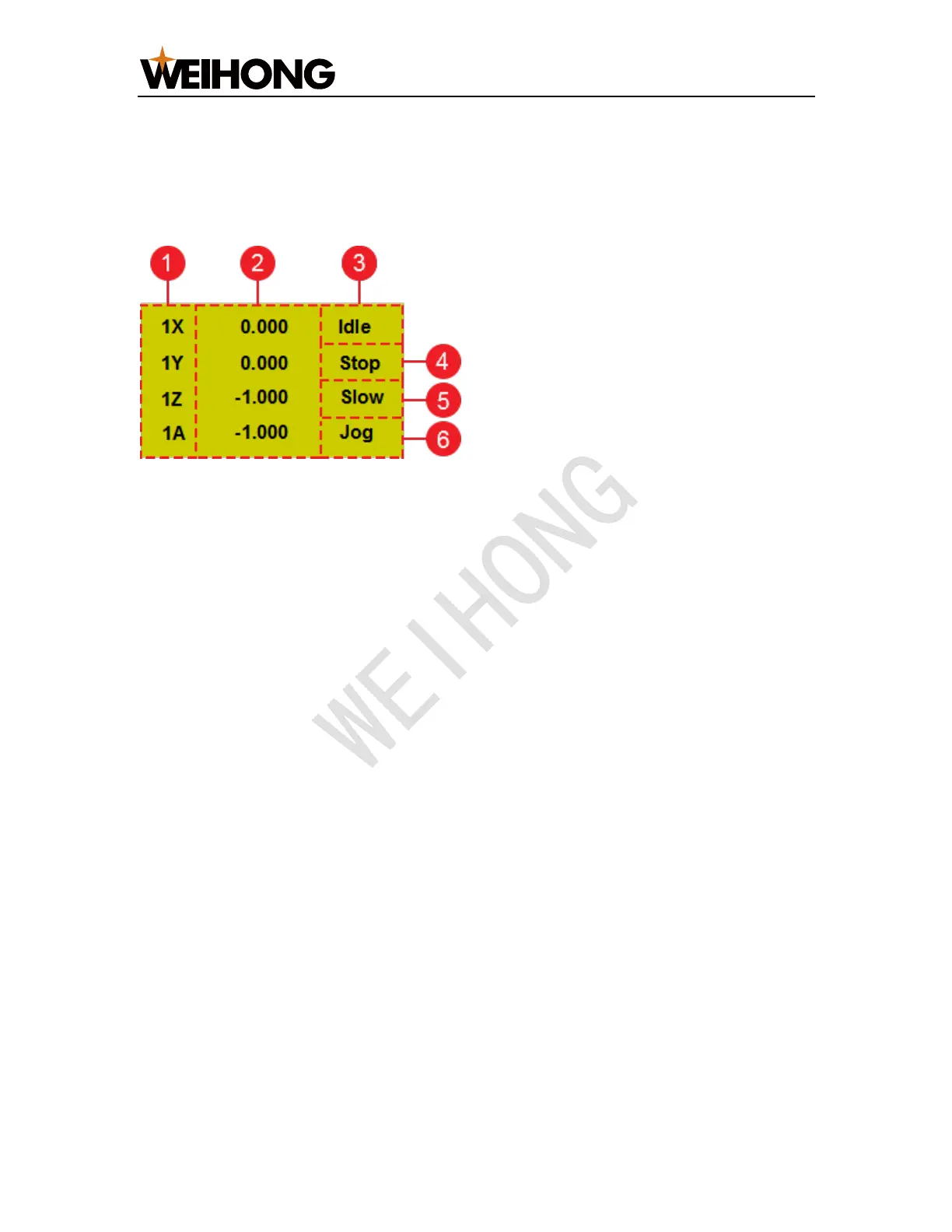

The main interface is as follows:
1. Activated axes
The figures refer to the selected WCS. Specifically, 1 / 2/ 3/ 4/ 5/ 6
respectively refers to G54/ G55/ G56/ G57/ G58/ G59.
2. Coordinates
3. Operation status
– Idle: Default status.
– Running
– Pause
– Stop
– Locked: NK105 is locked when the soft limit is triggered.
4. Spindle status
– Enabled
– Disabled
5. Speed mode
– High-speed jog
– Slow jog mode
6. Motion mode
– Jog: Finely adjust the machine coordinate.
– Step: Coarsely adjust the machine coordinate.
