WEIHONG NK105 User Manual

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
13 / 97
2 Wiring
Through this section, you can quick know the supported signal types and terminal
definition of NK105 (E) control box with four axes, which can help you finish
wiring.
2.1 Signal Type
The signal types include the following:
• Binary input signal
• Open collector output signal
• Analog output signal
• Differential output signal
2.1.1 Binary Input Signal

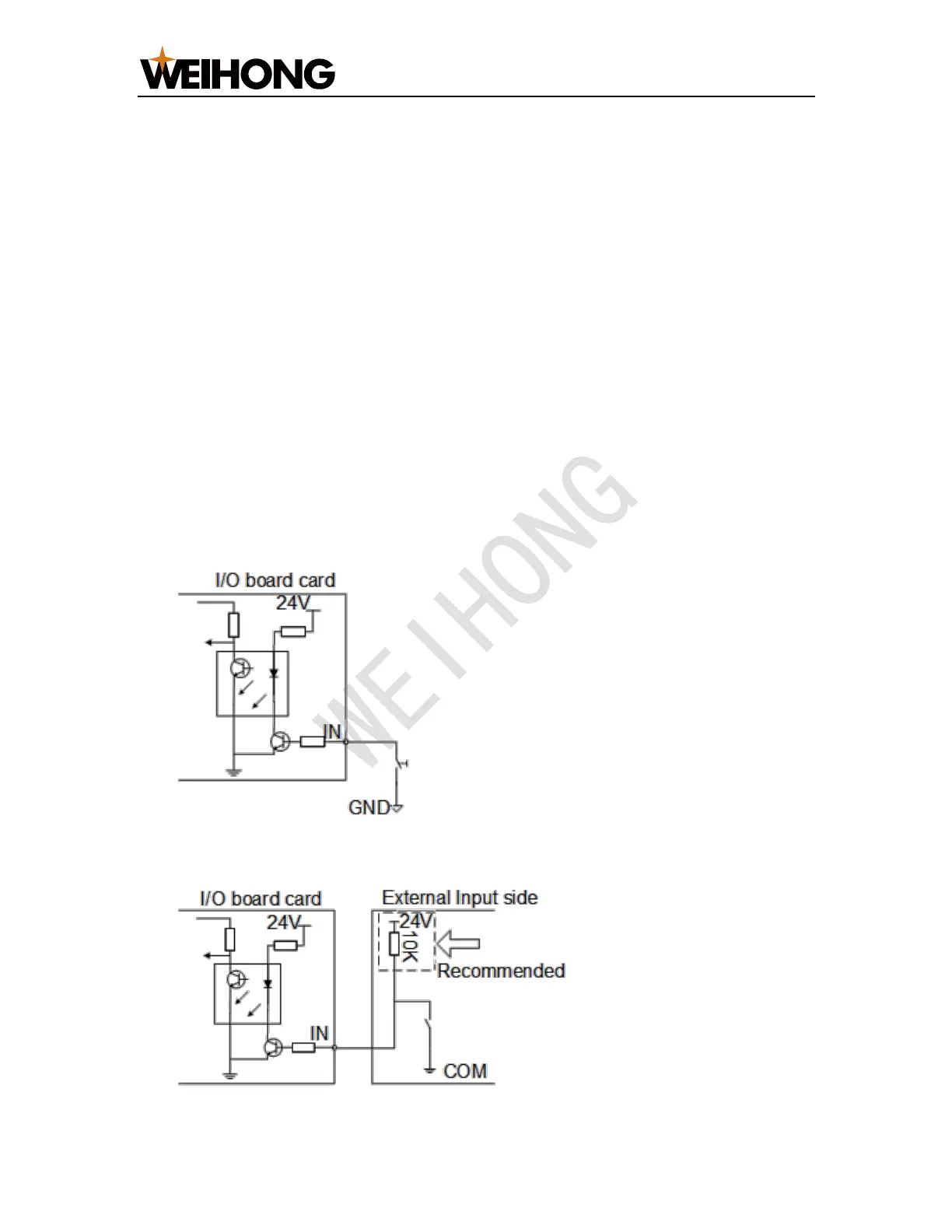

The wiring diagram of the binary input terminal connected to the following switches
is as follows:
• Mechanical switch
• Photoelectric switch or proximity switch

WEIHONG NK105 Specifications

General

Model	NK105
Category	Control Systems
Output Voltage	DC 24V
Output Current	5A
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Humidity	20% to 90% (non-condensing)
