4 Assembly
8. If available: Place the cable for the power supply in the cable
clamp 105.
9. With MEDUCORE Standard with MEDUMAT Standard
2
:

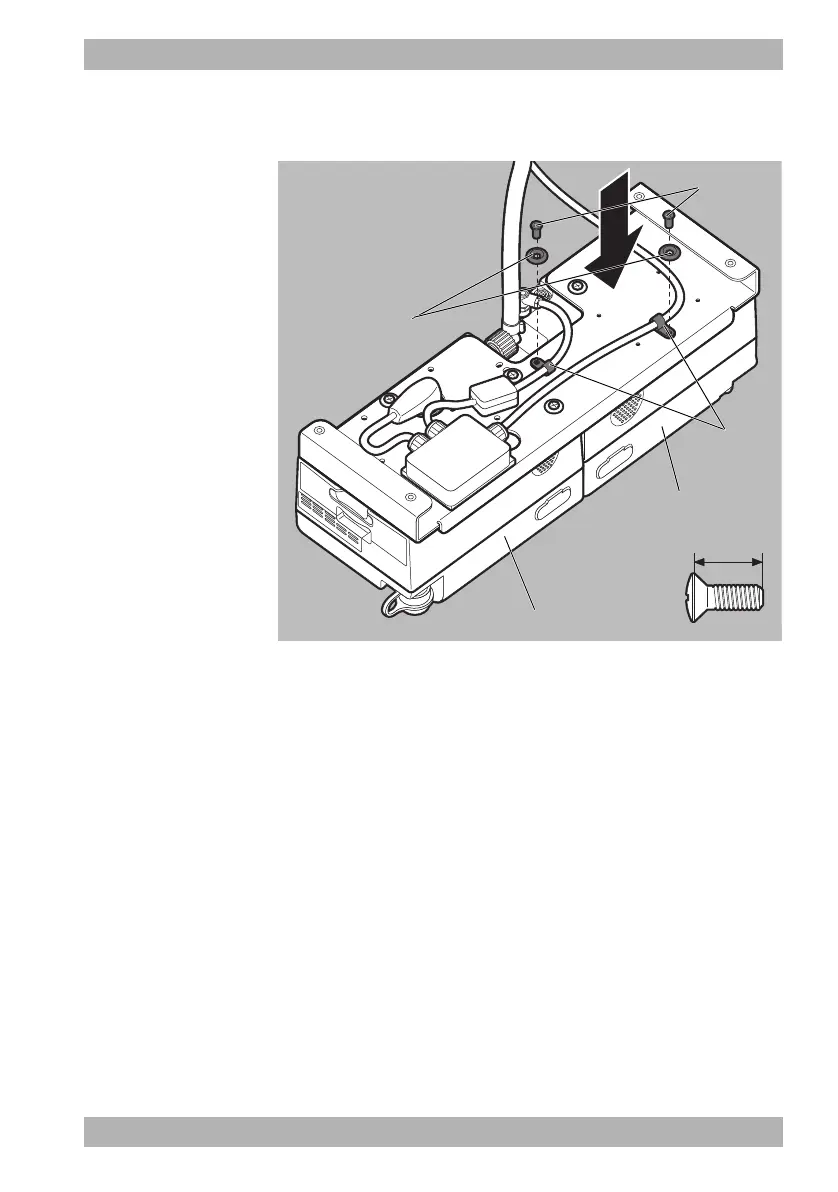

Screw 2 cable clamps 105 and 2 protective disks 104 to
the spacer plate using 2 screws 101.
When doing so, note: The flat side of the cable clamps
faces down.
105
101
104
12 mm
MEDUMAT Standard
2
MEDUCORE Standard
