4 Assembly
10. With MEDUCORE Standard with MEDUMAT Easy
CPR
on

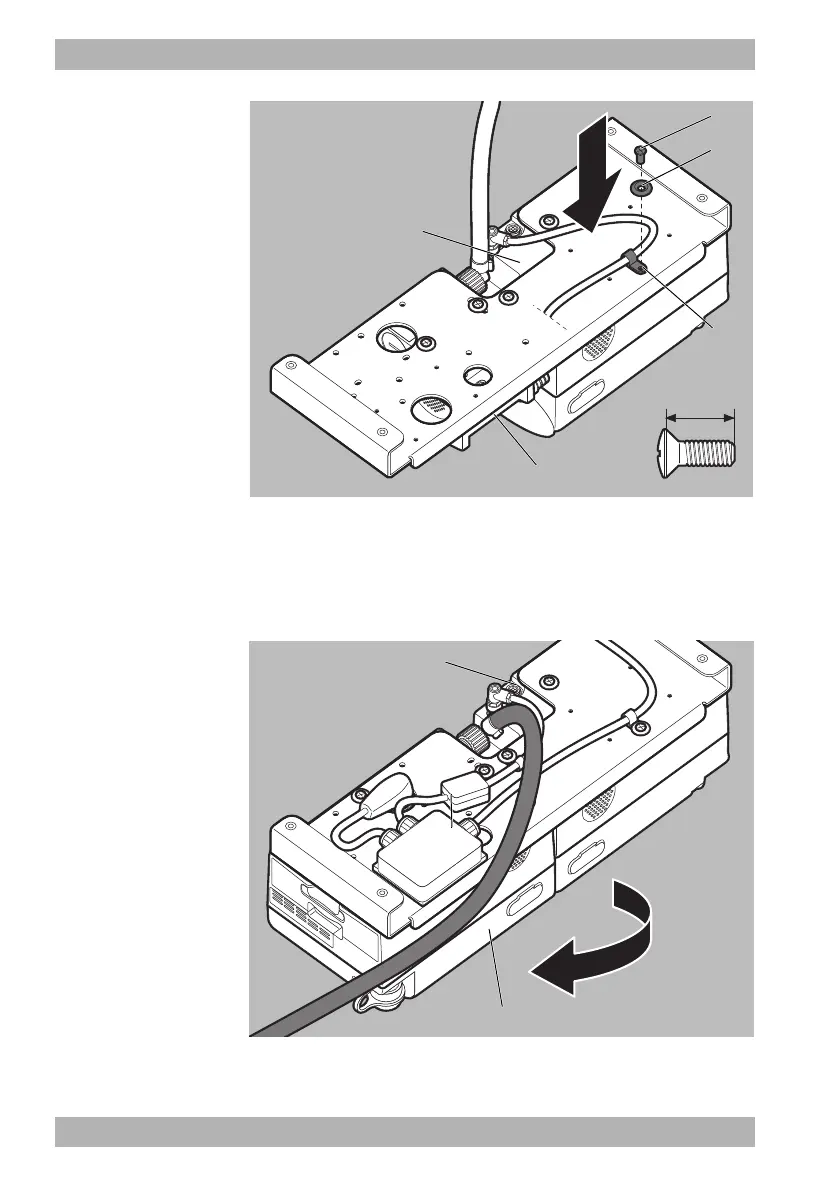

LIFE-BASE 3 NG: Screw 1 cable clamp 105 and 1 protective
disk 104 to the spacer plate using 1 screw 101.
When doing so, note: The flat side of the cable clamp
faces down.
11. With LIFE-BASE 1 NG XL: Guide the low-pressure hose away to
the left.
12 mm
105
104
101
MEDUMAT Easy
CPR
MEDUCORE Standard
MEDUMAT Standard
2
MEDUCORE Standard
