Actual space requirements
Far more room than the specified space requirement is needed in front of the appliances to operate the combi ovens safely,
in particular to handle hot food safely
.
For the distance that is actually needed between the top of the combi oven and the ceiling, please refer to the topic 'Adjacent
systems' on page 30.
Larger wall gaps are generally recommended to provide access for servicing.
In the installation location, the following parts must not be covered, obstructed or blocked (see also 'Design and function of
the combi oven' on page 11):
■
Air vent and exhaust outlet on the top of the appliance
■
Ventilation port on the top of the appliance
■
Ventilation holes in the appliance floor

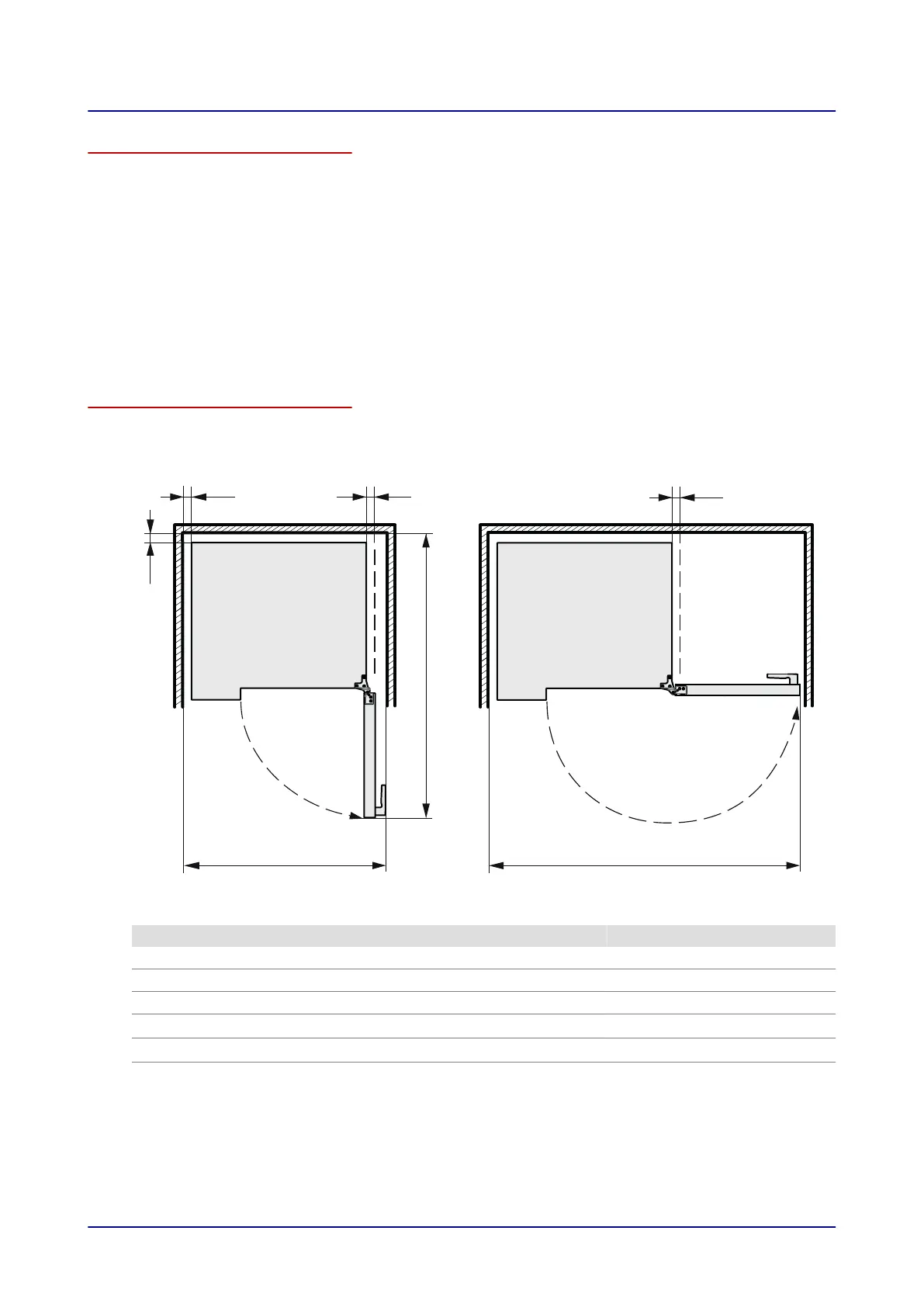

Space required for right-hinged door - width and depth
The following diagram and table show the space required for the appliance for different installation and operating situations.
They also show the minimum horizontal distances from adjacent walls and surfaces. The safety clearances on the left, right
and rear must always be complied with.
12.20 20.10 20.20
Meaning
B1 Width requirement, appliance door open at 90° [mm] 1309 1064 1309
B2 Width requirement, appliance door open at 180° [mm] 1955 1505 1955
T Depth requirement when opening the appliance door [mm] 1835 1430 1835
S1
Safety clearance on left-hand side [mm] 50 50 50
S2
Safety clearance at rear [mm] 50 50 50
S3
Safety clearance on right-hand side [mm] 50 50 50
5 Setting up the appliance
Installation manual 32
