Space required for disappearing door - width and depth

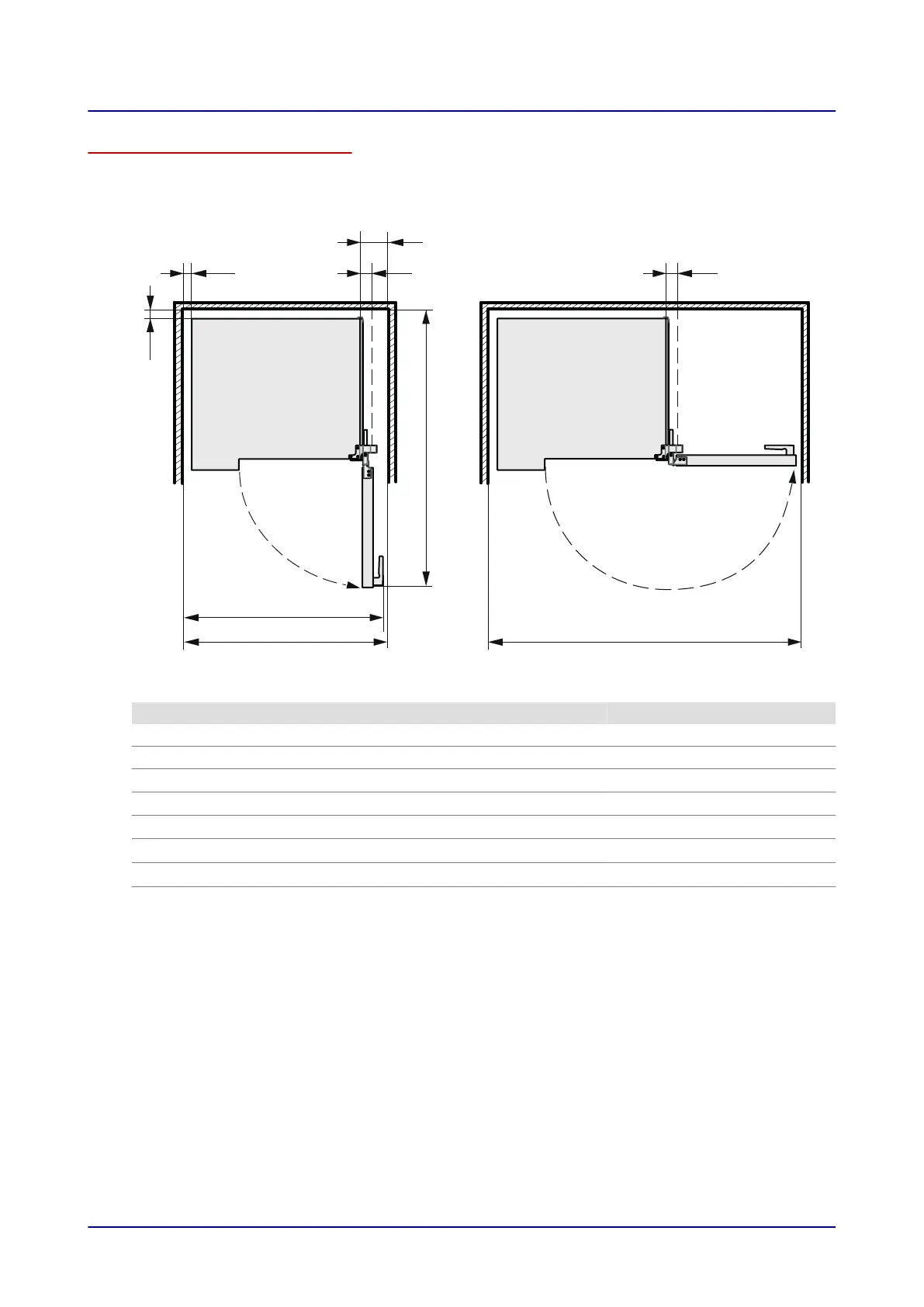

The following diagram and table show the space required for the appliance for different installation and operating situations.
They also show the minimum horizontal distances from adjacent walls and surfaces. The safety clearances on the left, right
and rear must always be complied with.
12.20 20.10 20.20
Meaning
B1 Width requirement, appliance door open at 90° [mm] 1338 1094 1338
B2 Width requirement, appliance door open at 180° [mm] 2010 1560 2010
B3 Width requirement, disappearing door retracted [mm] 1345 1100 1345
R Space required on right-hand side, disappearing door retracted [mm] 160 160 160
T Depth requirement when opening the appliance door [mm] 1860 1455 1860
S1
Safety clearance on left-hand side [mm] 50 50 50
S2
Safety clearance at rear [mm] 50 50 50
S3
Safety clearance on right-hand side [mm] 50 50 50
5 Setting up the appliance
Installation manual 33
