DISPLAY & ANNUNCIATORS
The M1 uses a high intensity Light Emitting Diode (LED) display with a quick
update rate. The LED annunciator lamps communicate scale status and mode
information to the user.
Weight Display
• 6 digits (7 segments each). Up to 3 decimal points.
• Negative weights are indicated by a minus sign (-) on the far left character.
Annunciators
CENTRE ZERO: The scale is within ±0.2 graduations of TRUE
ZERO.
MOTION: The scale is in motion.
GROSS: The scale is in GROSS weighing mode.
NET: The scale in NET weighing mode (a tare weight is stored)

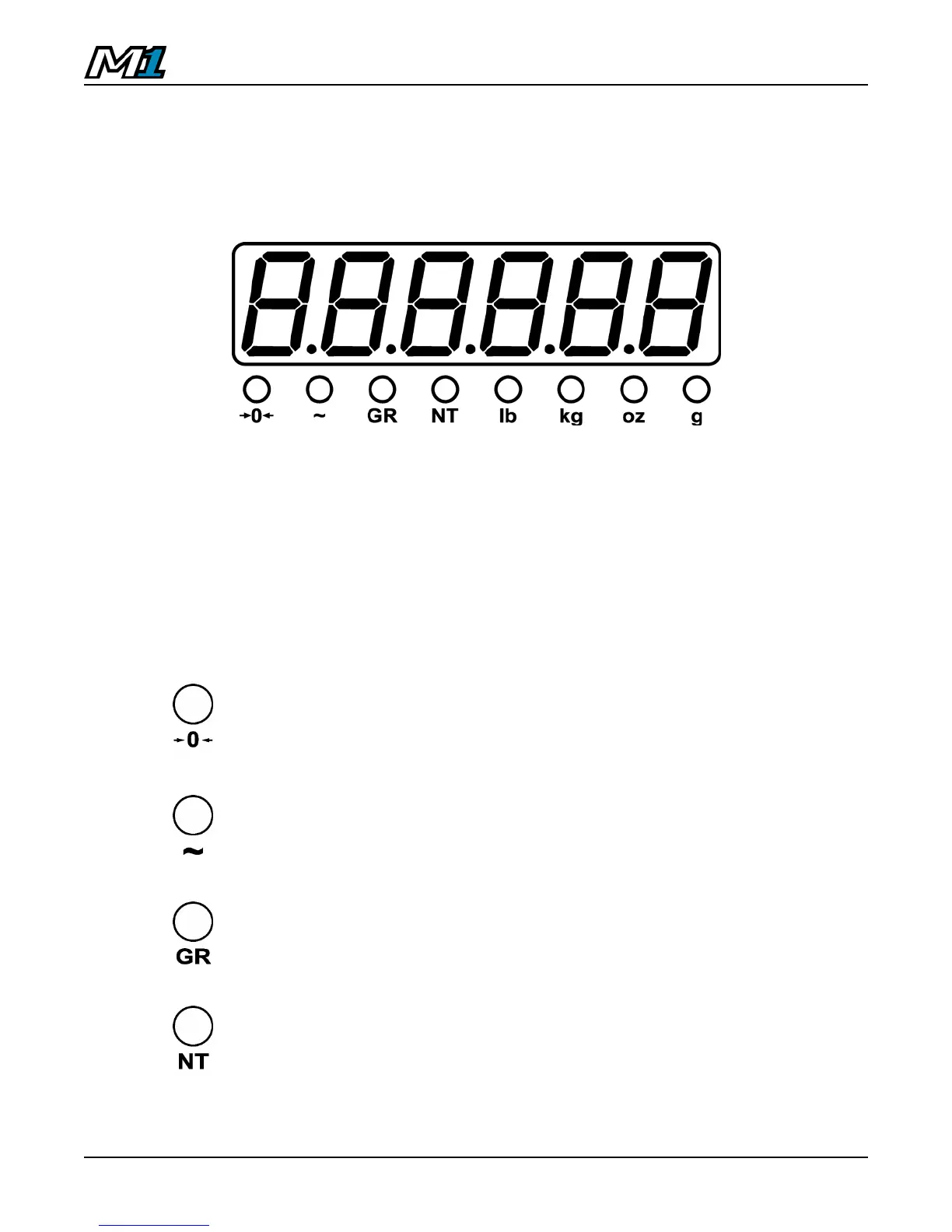

M1 Display
